FC-ISM-DXM1

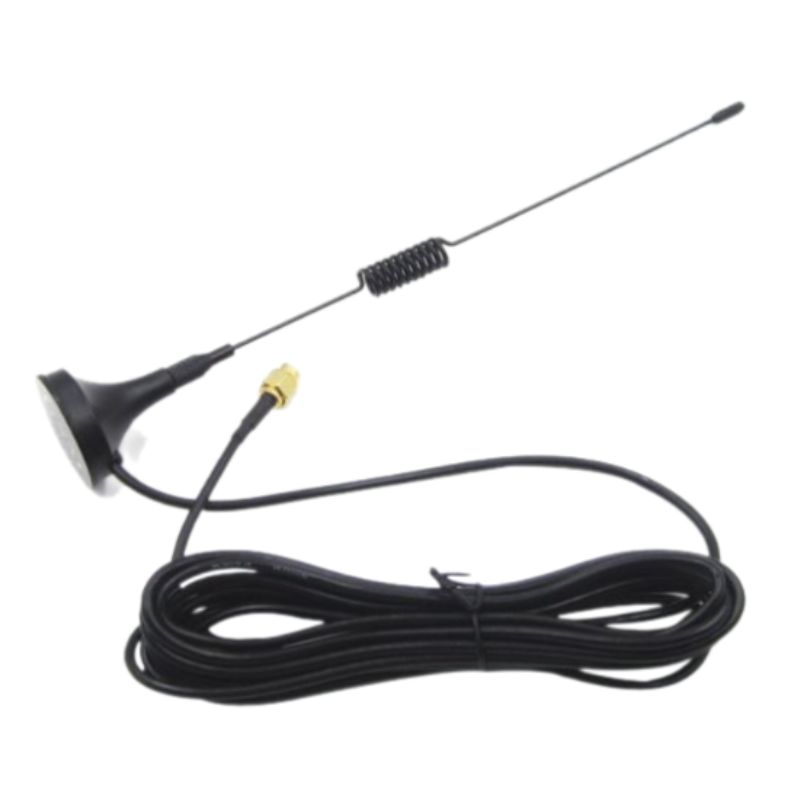

External Magnetic Antenna, 433MHz, 3.5dBi Gain, SMA Male Connector, 3meter (ROHS, CE, REACH)

Description

433MHz ISM magnetic mount antenna is specialized for wireless data transmission with good performance. Usually for products that have a remote control. For examples lighting, sensors and security. Ideal for amplifying RF radio frequency signals such as remote controls, sensors, transceivers, etc.



Specifications

Antenna Type

433MHz external antenna

Model Number

FC-ISM-DXM1

Operate Frequency

433MHz

Gain-DBi

3.5DBI

V.S.W.R

≤1.8

Nominal Impedance (Ohms)

50

Radiation Pattern

Omni-directional

Polarization

Linear polarization - Vertical

Maximum Power-W

50W

Antenna Height

148mm

Magnet Base Dimensions

30mm

Radome Color

White or black

Housing Cover

Brass copper

Cable type

RG174 coaxial cable

Cable Length

3 Meter(customized length)

Connector Type

SMA male(different connector options)

Fix method

Magnet base or adhesive tape mounting

Weight

50g

Operating Temperature

-40℃~+80℃

Storage Temperature

-40℃~+85℃

Compliant

ROHS,CE,ISO





Strength Points

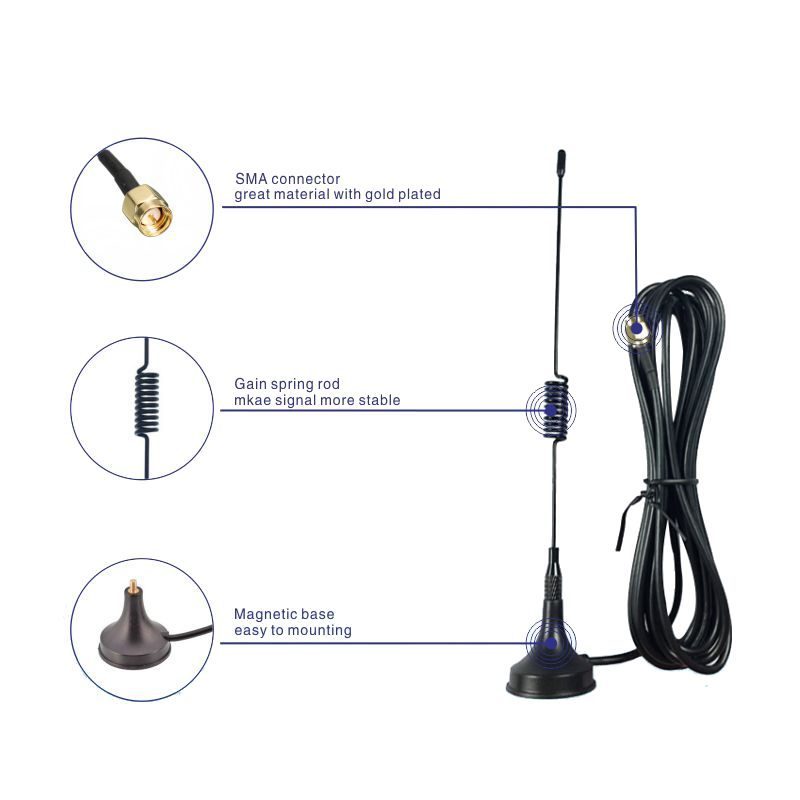

    1. Better signal strength ISM 433mhz antenna with high gain for improved signal. High gain means more sensitivity to pick up better signal strength. Designed to be used with remote controls system, sensors. It can also be used wit RF transceivers, RF module device and RaspberryMatic Raspberry Pi with an SMA male antenna connector.
    2. Compact size and mobile FC-ISM-DXM1 433MHz magnetic mount antenna, a rigid small whip type with a credible 3.5dBi peak gain, is a great performer for its size and used in multiple situations especially where mobility is required.
    3. Variety of connector options and cable lengths With a variety of connector options and cable lengths, this unit is ideally suited to Iot solution or remote controls as well as manufacturers evaluation kits as it provides a fast, reliable fit for installers. Supplied as standard with a 3meter cable and SMA Male connector.

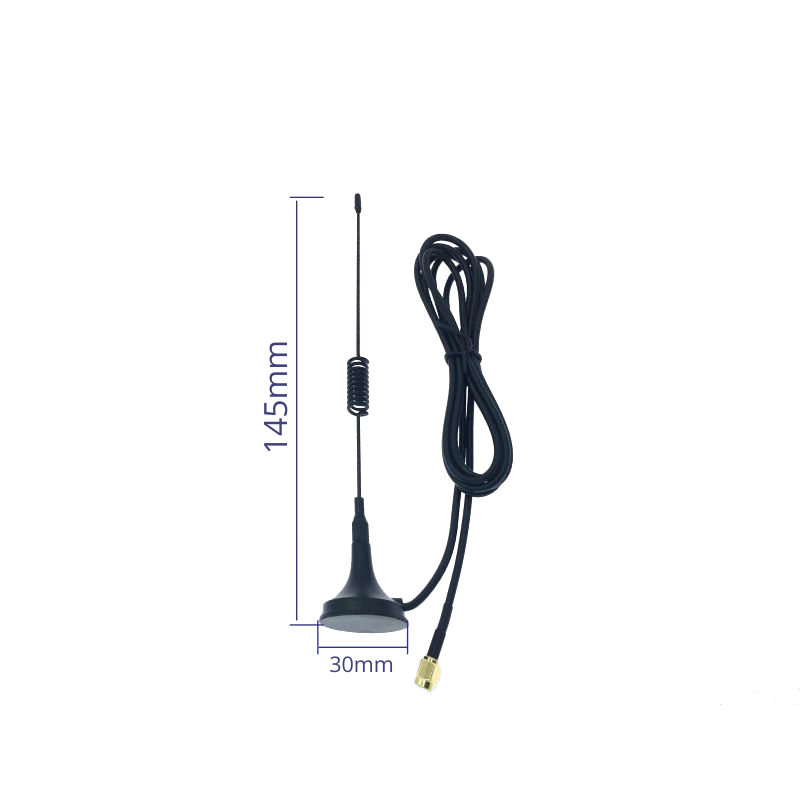

Dimensions



Details

SKU: FC-ISM-DXM1
Available: Yes
Accessory Kit
Price Breaks
Quantity
1+
5+
Price
€2.80
€2.30

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€2.80 excl tax
