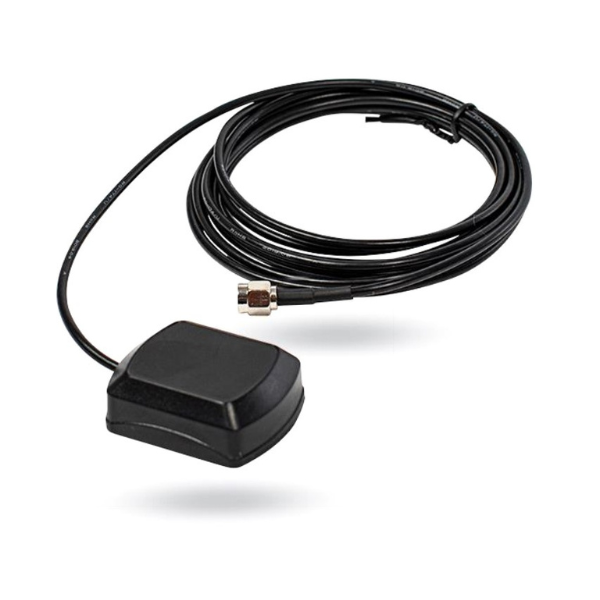

FC-GNSS-WA3

Active GNSS Antenna, 1575.42-1602MHz, 30dBi Gain, SMA Male Connector, 3meter (ROHS, CE, REACH)

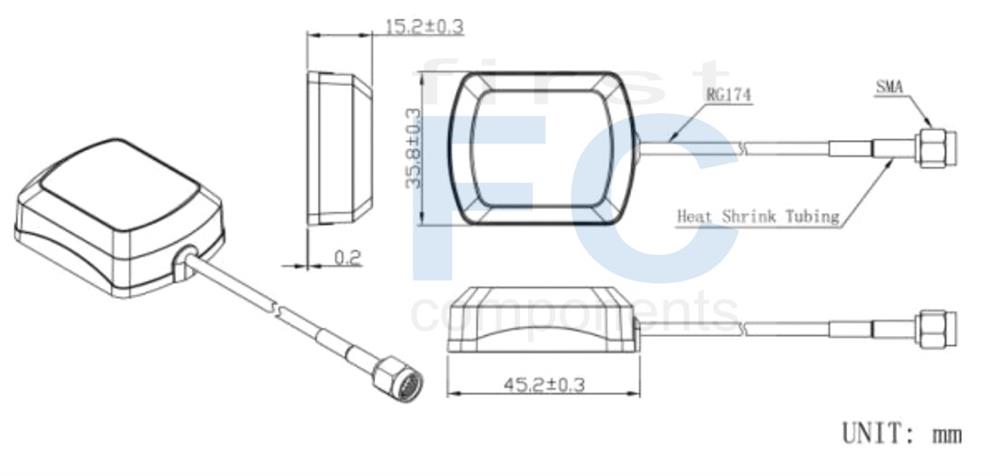

Drawing



Specifications

Electrical Specifications

Frequency Range

1575.42-1602MHZ

Gain

30dBi(LNA amplifier )

VSWR

≤2.0

Input Impedance

50Ω

Polarization

Vertical

Max Input Power (w)

50

Mechanical Specifications

Working Temperature

-40~85

ConnectorType

SMAFME/BNC/MCX/MMCX and so on

Size

45.2*35.8*15.2mm

Cable type

RG174

Cable length

3meterCan be Shorter or Longer

Antenna Cover Material

ABS

Color

Black

Mounting way

Adhesive tape mount/Magnet base mount



SKU: FC-GNSS-WA3
Available: Yes
Accessory Kit
Price Breaks
Quantity
1+
5+
Price
€5.20
€4.30

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€5.20 excl tax

Drawing



Specifications

Electrical Specifications

Frequency Range

1575.42-1602MHZ

Gain

30dBi(LNA amplifier )

VSWR

≤2.0

Input Impedance

50Ω

Polarization

Vertical

Max Input Power (w)

50

Mechanical Specifications

Working Temperature

-40~85

ConnectorType

SMAFME/BNC/MCX/MMCX and so on

Size

45.2*35.8*15.2mm

Cable type

RG174

Cable length

3meterCan be Shorter or Longer

Antenna Cover Material

ABS

Color

Black

Mounting way

Adhesive tape mount/Magnet base mount



Products specifications
Brand FC
