DMG40960F040_01WTC

Picture of DMG40960F040_01WTC Picture of DMG40960F040_01WTC
TFT 4" 400x960, Bar type Intelligent T5L UART COF, 250cd/m², Wide View Angle (IPS), Capacitive Touch Panel



Media





ASIC Information


T5L0 ASIC T5L0 ASIC is a low-power, cost-effective, GUI and application highly integrated single-chip dual-core ASIC designed by DWIN Technology for small-size LCD and mass produced in 2020.



Display


Color 262K colors
LCD Type IPS, TFT LCD
Viewing Angle Wide viewing angel, typical value of 85°/85°/85°/85°(L/R/U/D)
Display Area（A.A） 39.18mm (W)×94.03mm (H)
Resolution 400*960
Backlight LED
Brightness 250nit



Voltage & Current


Power Voltage 3.6~5.5V
Operation Current 200mA  VCC=5V, max backlight
90mA  VCC=5V, backlight off



Interface


User interface 50Pin_0.5mm FPC
Baudrate 3150~3225600bps
Output Voltage Output 1;3.0~3.3 V
Output 0;0~0.3 V
Input Voltage
（RXD）		 Input 1；3.3V
Input 0；0~0.5V
Interface UART2: TTL;
UART4: TTL;（Only available after OS configuration
UART5: TTL;（Only available after OS configuration）
Data Format UART2: N81;
UART4: N81/E81/O81/N82;4 modes (OS configuration)
UART5: N81/E81/O81/N82;4 modes (OS configuration)

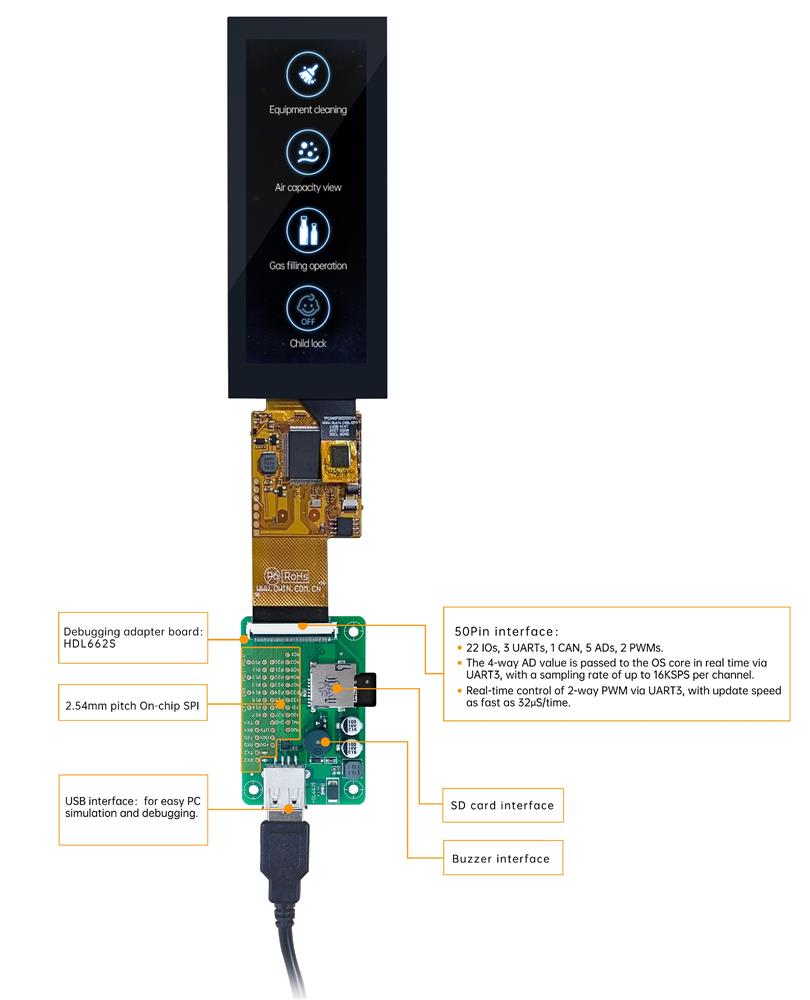

Display Connection





Accessories (Selectable in Above Menu)





DRAWING




External Interface



Pin Definition I/O Functional Description
1 5V I Power supply, DC3.6-5.5V
2 5V I
3 GND GND GND
4 GND GND
5 GND GND
6 AD7 I 5 input ADCs. 12-bit resolution in case of 3.3V power supply. 0-3.3V input voltage. Except for AD6, the rest data is sent to OS core via UART3 in real time with 16KHz sampling rate. AD1 and AD5 can be used in parallel, and AD3 and AD7 can be used in parallel, which equals to two 32KHz sampling AD. AD1, AD3, AD5, AD7 can be used in parallel, which equals to a 64KHz sampling AD; the data is summed 1024 times and then divided by 64 to obtain a 64Hz 16bit AD value by oversampling.
7 AD6 I
8 AD5 I
9 AD3 I
10 AD2 I
11 3.3 O 3.3V output, maximum load of 150mA.
12 SPK O External MOSFET to drive buzzer or speaker. The external 10K resistor should be pulled down to the ground to ensure that power-on is low level.
13 SD_CD I/O SD/SDHC interface,The SD_CK connects a 22pF capacitor to GND near the SD card interface.
14 SD_CK O
15 SD_D3 I/O
16 SD_D2 I/O
17 SD_D1 I/O
18 SD_D0 I/O
19 PWM0 O 2 16-bit PWM output. The external 10K resistor should be pulled down to the ground to ensure that power-on is low level.
The OS core can be controlled in real time via UART3
20 PWM1 O
21 P3.3 I/O If using RX8130 or SD2058 I2C RTC to connect to both IOs, SCL should be connected to P3.2,and SDA connected to P3.3 in parallel with 10K resistor pull-up to 3.3V.
22 P3.2 I/O
23 P3.1/EX1 I/O It can be used as an external interrupt 1 input at the same time, and supports both low voltage level or trailing edge interrupt modes.
24 P3.0/EX0 I/O It can be used as an external interrupt 0 input at the same time, and supports both low voltage level or trailing edge interrupt modes
25 P2.7 I/O IO interface
26 P2.6 I/O IO interface
27 P2.5 I/O IO interface
28 P2.4 I/O IO interface
29 P2.3 I/O IO interface
30 P2.2 I/O IO interface
31 P2.1 I/O IO interface
32 P2.0 I/O IO interface
33 P1.7 I/O IO interface
34 P1.6 I/O IO interface
35 P1.5 I/O IO interface
36 P1.4 I/O IO interface
37 P1.3 I/O IO interface
38 P1.2 I/O IO interface
39 P1.1 I/O IO interface
40 P1.0 I/O IO interface
41 UART4_TXD O UART4
42 UART4_RXD I
43 UART5_TXD O UART5
44 UART5_RXD I
45 P0.0 I/O IO interface
46 P0.1 I/O IO interface
47 CAN_TX O CAN interface
48 CAN_RX I
49 UART2_TXD O UART2(UART0 serial port of OS core)
50 UART2_RXD I

SKU: DMG40960F040_01WTC
Brand: DWIN
Available: Yes
Be the first to review this product
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
Price
€39.00
€33.70
€30.30

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€39.00 excl tax



Media





ASIC Information


T5L0 ASIC T5L0 ASIC is a low-power, cost-effective, GUI and application highly integrated single-chip dual-core ASIC designed by DWIN Technology for small-size LCD and mass produced in 2020.



Display


Color 262K colors
LCD Type IPS, TFT LCD
Viewing Angle Wide viewing angel, typical value of 85°/85°/85°/85°(L/R/U/D)
Display Area（A.A） 39.18mm (W)×94.03mm (H)
Resolution 400*960
Backlight LED
Brightness 250nit



Voltage & Current


Power Voltage 3.6~5.5V
Operation Current 200mA  VCC=5V, max backlight
90mA  VCC=5V, backlight off



Interface


User interface 50Pin_0.5mm FPC
Baudrate 3150~3225600bps
Output Voltage Output 1;3.0~3.3 V
Output 0;0~0.3 V
Input Voltage
（RXD）		 Input 1；3.3V
Input 0；0~0.5V
Interface UART2: TTL;
UART4: TTL;（Only available after OS configuration
UART5: TTL;（Only available after OS configuration）
Data Format UART2: N81;
UART4: N81/E81/O81/N82;4 modes (OS configuration)
UART5: N81/E81/O81/N82;4 modes (OS configuration)



Display Connection





Accessories (Selectable in Above Menu)





DRAWING




External Interface



Pin Definition I/O Functional Description
1 5V I Power supply, DC3.6-5.5V
2 5V I
3 GND GND GND
4 GND GND
5 GND GND
6 AD7 I 5 input ADCs. 12-bit resolution in case of 3.3V power supply. 0-3.3V input voltage. Except for AD6, the rest data is sent to OS core via UART3 in real time with 16KHz sampling rate. AD1 and AD5 can be used in parallel, and AD3 and AD7 can be used in parallel, which equals to two 32KHz sampling AD. AD1, AD3, AD5, AD7 can be used in parallel, which equals to a 64KHz sampling AD; the data is summed 1024 times and then divided by 64 to obtain a 64Hz 16bit AD value by oversampling.
7 AD6 I
8 AD5 I
9 AD3 I
10 AD2 I
11 3.3 O 3.3V output, maximum load of 150mA.
12 SPK O External MOSFET to drive buzzer or speaker. The external 10K resistor should be pulled down to the ground to ensure that power-on is low level.
13 SD_CD I/O SD/SDHC interface,The SD_CK connects a 22pF capacitor to GND near the SD card interface.
14 SD_CK O
15 SD_D3 I/O
16 SD_D2 I/O
17 SD_D1 I/O
18 SD_D0 I/O
19 PWM0 O 2 16-bit PWM output. The external 10K resistor should be pulled down to the ground to ensure that power-on is low level.
The OS core can be controlled in real time via UART3
20 PWM1 O
21 P3.3 I/O If using RX8130 or SD2058 I2C RTC to connect to both IOs, SCL should be connected to P3.2,and SDA connected to P3.3 in parallel with 10K resistor pull-up to 3.3V.
22 P3.2 I/O
23 P3.1/EX1 I/O It can be used as an external interrupt 1 input at the same time, and supports both low voltage level or trailing edge interrupt modes.
24 P3.0/EX0 I/O It can be used as an external interrupt 0 input at the same time, and supports both low voltage level or trailing edge interrupt modes
25 P2.7 I/O IO interface
26 P2.6 I/O IO interface
27 P2.5 I/O IO interface
28 P2.4 I/O IO interface
29 P2.3 I/O IO interface
30 P2.2 I/O IO interface
31 P2.1 I/O IO interface
32 P2.0 I/O IO interface
33 P1.7 I/O IO interface
34 P1.6 I/O IO interface
35 P1.5 I/O IO interface
36 P1.4 I/O IO interface
37 P1.3 I/O IO interface
38 P1.2 I/O IO interface
39 P1.1 I/O IO interface
40 P1.0 I/O IO interface
41 UART4_TXD O UART4
42 UART4_RXD I
43 UART5_TXD O UART5
44 UART5_RXD I
45 P0.0 I/O IO interface
46 P0.1 I/O IO interface
47 CAN_TX O CAN interface
48 CAN_RX I
49 UART2_TXD O UART2(UART0 serial port of OS core)
50 UART2_RXD I

Products specifications
Brand DWIN
Size 4"
Resolution 400x960
Viewing Area (mm) 39.18x94.03
Active Area (mm) 39.18x94.03
Color Full Color
Nr. Of Color 262K
Operating System DGUSII OS
Power supply 5V
Display Interface UART // CAN // PWM // AD // IO
Display IC DWIN ASIC T5L0
View Angle IPS
Touch Panel Capacitive
O. Temperature (°C) -10~60
Preferred - Not Preferred Preferred
Download
Products specifications
Brand DWIN
Size 4"
Resolution 400x960
Viewing Area (mm) 39.18x94.03
Active Area (mm) 39.18x94.03
Color Full Color
Nr. Of Color 262K
Operating System DGUSII OS
Power supply 5V
Display Interface UART // CAN // PWM // AD // IO
Display IC DWIN ASIC T5L0
View Angle IPS
Touch Panel Capacitive
O. Temperature (°C) -10~60
Preferred - Not Preferred Preferred
