CSHA106-2102A001R1AB-30

Female Header - Straight Contact, Single Row, 21 Pins, Pitch 2.54mm, Gold Plated (Mating Contact Length: 3-4,50mm)

Specifications

Current Rating：3.0Amp
Insulation Resistance： 1000MΩMin
Dielectric Withstanding Voltage： 600VAC
Contact Resistance： 20mΩMax
Operating Temperature： -40ºC to +105ºC



Material

Contact Material：Phosphor Bronze
Insulation Material：PBT, Nylon, LCP, UL 94V-0

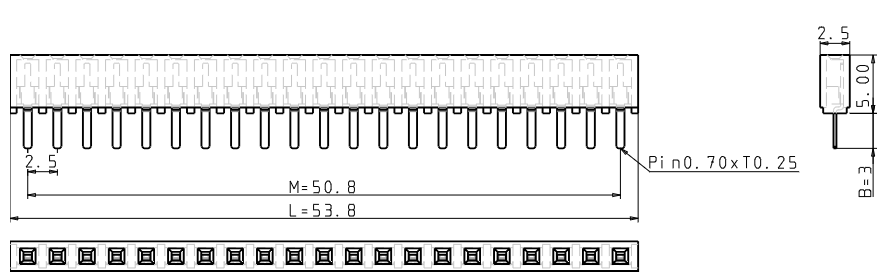

Dimensions

SKU: CSHA106-2102A001R1AB-30
Brand: Greenconn
Available: Yes
Be the first to review this product
Price Breaks
Quantity
1+
5+
10+
25+
50+
100+
Price
€0.97
€0.83
€0.79
€0.72
€0.66
€0.55

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€0.97 excl tax

Specifications

Current Rating：3.0Amp
Insulation Resistance： 1000MΩMin
Dielectric Withstanding Voltage： 600VAC
Contact Resistance： 20mΩMax
Operating Temperature： -40ºC to +105ºC



Material

Contact Material：Phosphor Bronze
Insulation Material：PBT, Nylon, LCP, UL 94V-0



Dimensions

Products specifications
Brand Greenconn
Constructive Structure Through Hole
Pin Nr. 1*21
Pin Pitch 2.54mm
Contact Direction DIP
Download
Products specifications
Brand Greenconn
Constructive Structure Through Hole
Pin Nr. 1*21
Pin Pitch 2.54mm
Contact Direction DIP
