WH0802A-CFH-JT#

Character LCD 1.2" 8x2, B/L RGB, FSTN white pos, Transflective, COB, 5V, Interface 6800, Font Eng/Jap, 6 O'clock

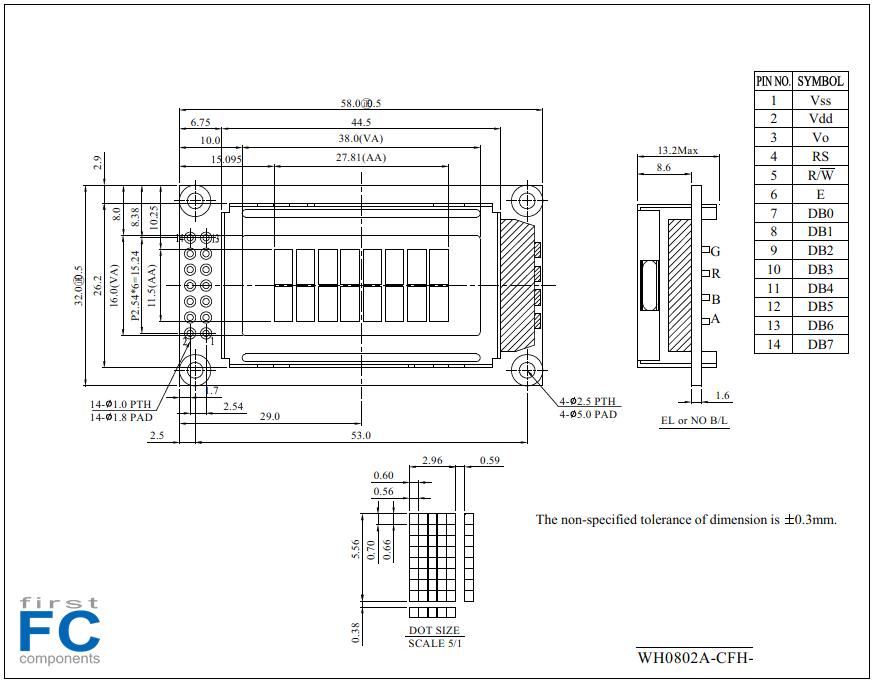

DRAWING

SKU: WH0802A-CFH-JT#
Brand: Winstar
Disponibile: Si
Kit Accessori
Prezzi per quantità
Quantità
1+
5+
10+
25+
Prezzo
€7,10
€5,20
€5,00
€4,90

Per quantita’ maggiori di 25pz prego invii la richiesta a [email protected] o chiami il +39 0332 1888005

€7,10 IVA esclusa

DRAWING

Specifiche di prodotto
Brand Winstar
Size 1.2"
Risoluzione 8x2
Area Attiva (mm) 27.81x11.50
Dot Size 0.56x0.66
Colore B/L, Tipo LCD B/L RGB, FSTN white pos
Alimentazione 5V
Interfaccia Display 6800
Display IC ST7066
Struttura Costruttiva COB
Angolo Visione 6H
Temperatura O. (°C) -20~70
Connessione Display Soldering PAD
Nr. Pin 14
Passo Pin 2.54mm
Preferred - Not Preferred Not Preferred
