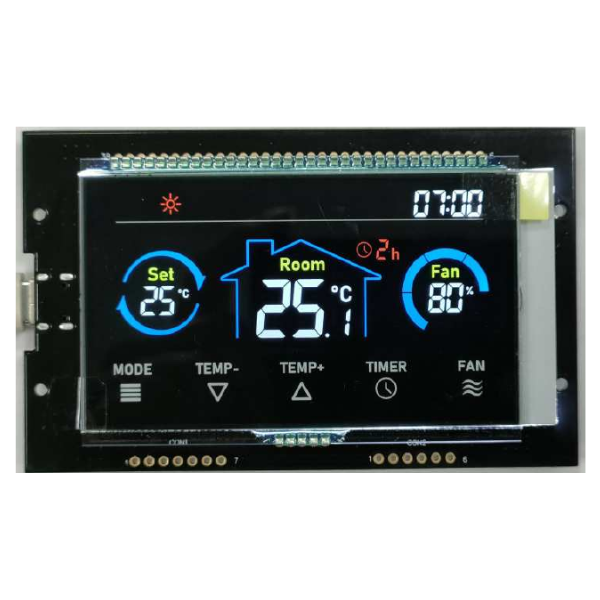

Evaluation kit for VATN LCD, four colors screen printing, Built-in MCU, ICON Touch, Single Power Supply

DESCRIPTION

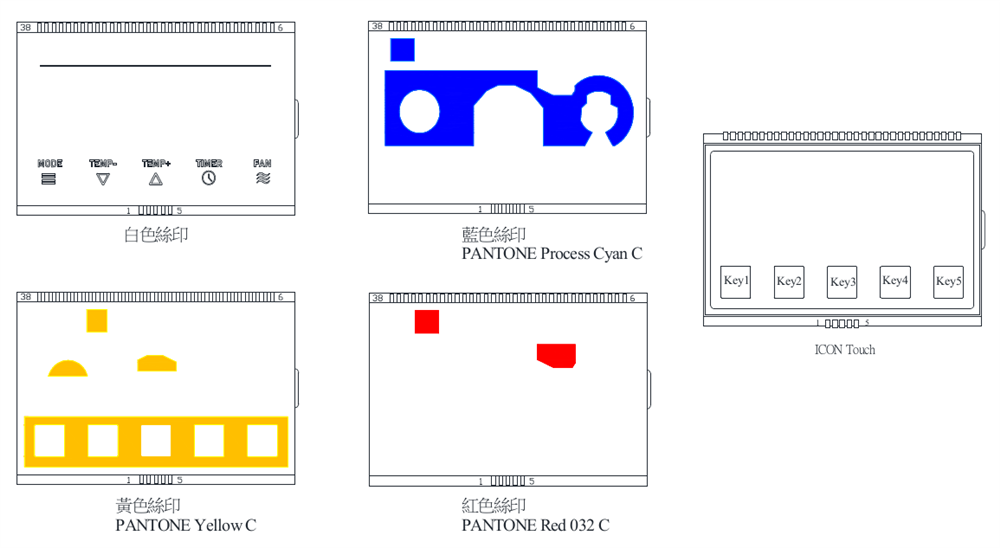

Advantage 1: Four colors silk-screen printing
In this evaluation kit, 3 colors screen are printed on the rear of of LCD and 1 color is printed on the front of LCD, for a total of 4 colors.

Advantage 2: ICON Touch
Use the LCD ITO graphics with the controller on the PCB to achieve the effect of "In Cell touch".

Advantage 3: Built-in MCU
Can be executed without additional evaluation board.

Advantage 4: Single Power Supply
Only one USB Type-C is needed to power up the module and backlight.

GENERAL SPECIFICATION

Module dimension	98.4 x 60.0 x (13.4) mm
View area	72.4 x 40.4 mm
Active area	69.0 x 37.4 mm
LCD Type	VATN
Duty / Bias	1/4DUTY,1/3BIAS
Polarizer Mode	Transmissive/Negative
Operating Voltage	VDD=5.0V, VOP=4.5V
View direction	6 o’ clock
Backlight Type	LED, White
LCD Controller IC	RW1026
Touch ADC IC	BS816A-1
MCU	HT66F3185
Operating Temperature	-20°C ~ 70°C
Storage Temperature	-30°C ~ 80°C
Power Supply	Type-C USB cable

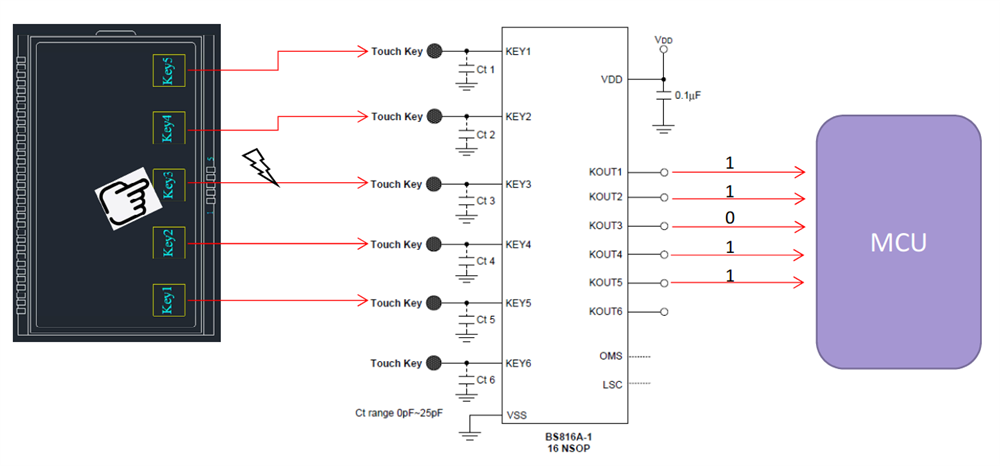

ICON TOUCH DIAGRAM

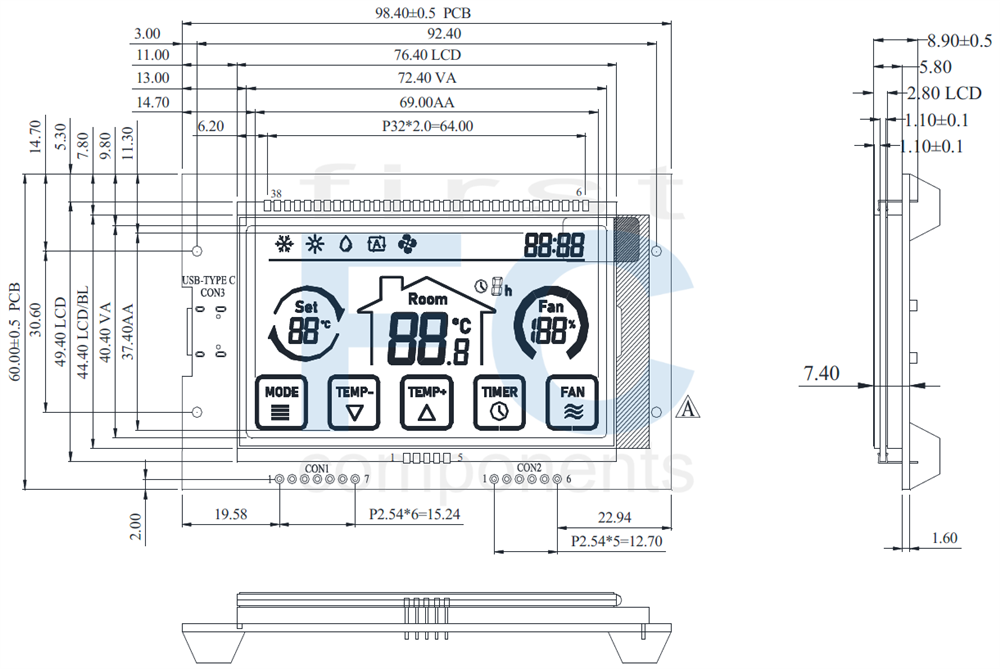

DRAWING

REFERENCE TECHNOLOGY INFORMATION

For more information regarding Icon Touch Technology, please refer to the following link to our knowledge centre: https://first-components.com/en/icon-touch-building-a-new-touch-and-high-value-stn-display

SKU: WWTK0003-00#

Brand: Winstar

Si tratta dela prima recensione per questo prodotto

Overview
Specifiche
Download
Contattaci

DESCRIPTION

Advantage 1: Four colors silk-screen printing
In this evaluation kit, 3 colors screen are printed on the rear of of LCD and 1 color is printed on the front of LCD, for a total of 4 colors.

Advantage 2: ICON Touch
Use the LCD ITO graphics with the controller on the PCB to achieve the effect of "In Cell touch".

Advantage 3: Built-in MCU
Can be executed without additional evaluation board.

Advantage 4: Single Power Supply
Only one USB Type-C is needed to power up the module and backlight.

GENERAL SPECIFICATION

Module dimension	98.4 x 60.0 x (13.4) mm
View area	72.4 x 40.4 mm
Active area	69.0 x 37.4 mm
LCD Type	VATN
Duty / Bias	1/4DUTY,1/3BIAS
Polarizer Mode	Transmissive/Negative
Operating Voltage	VDD=5.0V, VOP=4.5V
View direction	6 o’ clock
Backlight Type	LED, White
LCD Controller IC	RW1026
Touch ADC IC	BS816A-1
MCU	HT66F3185
Operating Temperature	-20°C ~ 70°C
Storage Temperature	-30°C ~ 80°C
Power Supply	Type-C USB cable

ICON TOUCH DIAGRAM

DRAWING

REFERENCE TECHNOLOGY INFORMATION

For more information regarding Icon Touch Technology, please refer to the following link to our knowledge centre: https://first-components.com/en/icon-touch-building-a-new-touch-and-high-value-stn-display
