    Character LCD 2.25" 16x2, B/L white, VATN, COG, 3.3V, Interface I2C, 12 O'clock, Pin
    Brand: Winstar
    Cod.: WO1602AT-89LJ#FC
    Prezzi per quantità
    Quantità
    1+
    5+
    10+
    25+
    Prezzo
    €8,90
    €8,00
    €7,50
    €7,30

    Per quantità maggiori di 49pz prego invii la richiesta a [email protected] o chiami il +39 0332 1888005

    Disponibilità: Disponibile
    €8,90 IVA esclusa
    i h

    DESCRIPTION

    WO1602J model is a COG 16-characters by 2-lines VATN module with VA Negative Transmissive LCD, available in white LED. This WO1602J module is built-in with ST7028-1A IC; it supports I2C interface, viewing direction at 12 o'clock, 1/17 duty, and 1/5 Bias.

    The supply voltage for logic of WO1602J is 3V to 3.6V, the typical value of 3.3V. This VATN WO1602J and our existing COG LCD WO1602G have the same outline dimension of 74.2 x 25.2 mm and feature the same metal pinout. Also, the VA and AA sizes of WO1602J are the same as WH1602B. We designed twin LED dices to increase the backlight brightness for the WO1602J VATN model. This module can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃.

    The VATN (Vertical Alignment Twisted Nematic) display features a wide viewing angle and high contrast ratio; therefore, it's very suitable for many applications. Below are the examples for reference.

    Industrial: automotive application, digital meter, UPS.
    Medical: medical device & medical equipment.
    Home appliance: audio system, coffee machine, microwave oven.

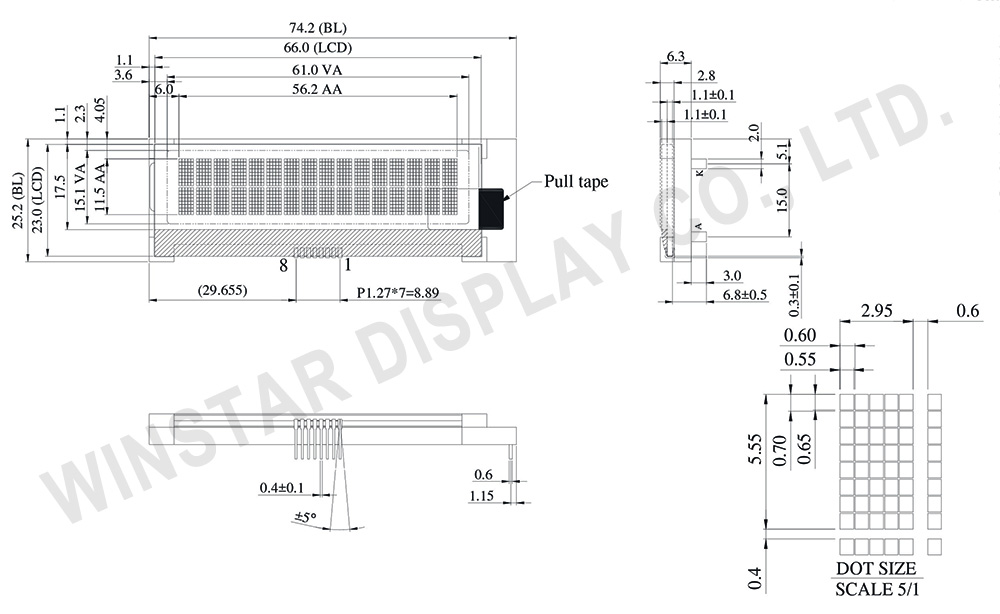

    DRAWING



    SPECIFICATIONS

    Interface Pin Function

    PinSymbolFunction Description
    1 RSTB External reset pin
    2 SCL Serial clock input
    3 SDA Serial Data signal
    4 VSS Ground
    5 VDD Power supply
    6 AVDD AVDD is the source of VG regulator.
    7 V0 V0 is the LCD driving voltage for common circuits at negative frame.
    8 XV0 XV0 is the LCD driving voltage for common circuits at positive frame.



    Mechanical Data

    ItemDimensionUnit
    Number of Characters 16 Characters x 2 Lines -
    Module dimension 74.2 x 25.2 x 6.3 mm
    View area 61.0 x 15.1 mm
    Active area 56.2 x 11.5 mm
    Dot size 0.55 x 0.65 mm
    Dot pitch 0.60 x 0.70 mm
    Character size 2.95 x 5.55 mm
    Character pitch 3.55 x 5.95 mm
    Duty 1/17duty , 1/5 Bias
    Backlight Type LED
    IC ST7028-1A
    Interface I2C



    Absolute Maximum Ratings

    ItemSymbolMinTypMaxUnit
    Operating Temperature TOP -20 - +70 ℃
    Storage Temperature TST -30 - +80 ℃
    Power Supply Voltage VDD -0.3 - 4.0 V
    Supply Voltage For LCD Drive VOP=V0-VSS -0.3 - 13.0 V
    Input voltage range VIN -0.3 - VDD+0.3 V



    Electrical Characteristics

    ItemSymbolConditionMinTypMaxUnit
    Supply Voltage For Logic VDD-VSS - 3 3.3 3.6 V
    Supply Voltage For LCD Vop Ta=-20℃
    Ta=25℃
    Ta=70℃
    -
    6.8
    -
    -
    7.0
    -
    -
    7.2
    -
    V
    V
    V
    Input High Volt. VIH - 0.7 VDD - VDD V
    Input Low Volt. VIL - - - 0.2 VDD V
    Output High Volt. VOH - 0.8 VDD - VDD V
    Output Low Volt. VOL - - - 0.2VDD V
    Supply Current IDD - - - 1.5 mA


    Specifiche di prodotto
    Size 2.25"
    Resolution 16x2
    Active Area (mm) 56.02x11.50
    Dot Size 0.55x0.65
    B/L color, LCD type B/L white, VATN
    Power supply 3.3V
    Display Interface I2C
    Display IC ST7028-1A
    Constructive Structure COG
    View Angle 12H
    O. Temperature (°C) -20~70
    Data Connection Pin Strip
    Pin Nr. 8
    Pin Pitch 1.27mm
    Preferred - Not Preferred Preferred
    *
    *
    *
    *
