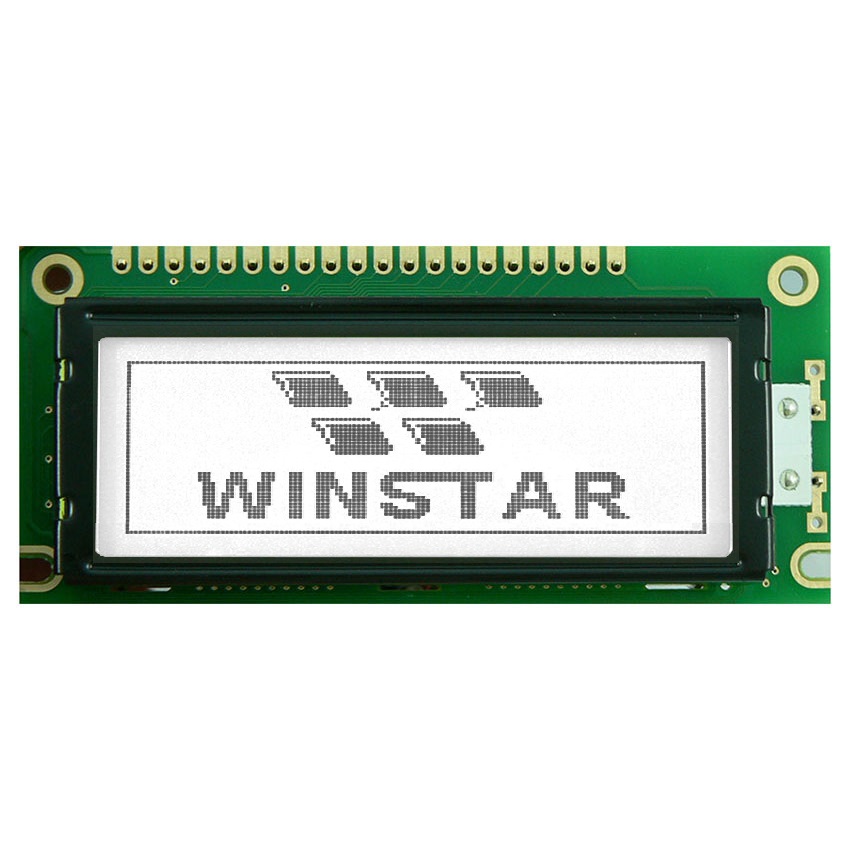

WG12232E-TFH-N#A

Graphic LCD 2.2" 122x32, B/L white, FSTN white pos, Transflective, COB, 5V, Interface 6800, 6 O'clock, No VNEG, External oscillation, IC SBN1661G

RECOMMENDED ONLY AS SPARE PARTS

For new projects please contact us at [email protected].



DESCRIPTION

These WG12232E are 122x32 graphics LCD modules which are built in with SBN1661G controller IC or equivalent controller.  This LCD 122x32 display supports 6800 8-bit parallel interface and 5V power supply. WG12232E also supports Negative Voltage 3V optional.  This display is built in with external oscillation, please choose WG12232J if you need internal oscillation.


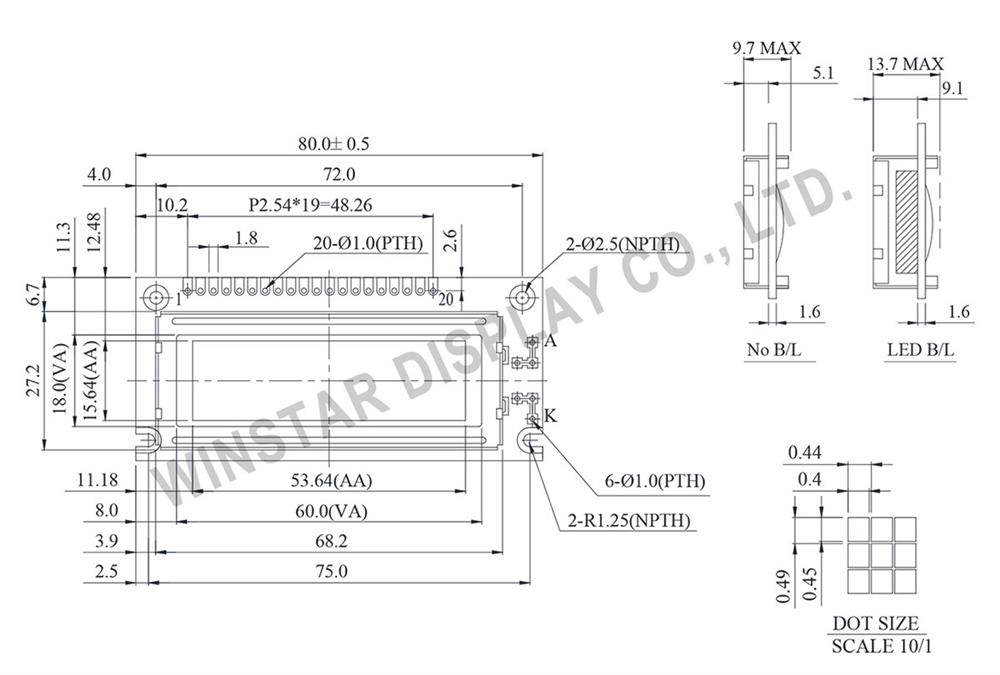

DRAWING

Graphics LCD Modules, Graphics LCD, LCD 122x32 - WG12232E

SPECIFICATIONS



Interface Pin Function

Pin No.SymbolDescription
1 VSS Ground
2 VDD Power supply for logic
3 VO Contrast Adjustment
4 A0 Data/ Instruction  select signal
5 CS1 Chip select signal for IC1
6 CS2 Chip select signal for IC2
7 CL External clock 2KHZ
8 E Enable signal
9 R/ W Read/Write select signal
10~17 DB0~DB7 Data bus line
18 /RES Controller reset signal, Active Low
19 A Power supply for B/L +
20 K Power supply for B/L -



Mechanical Data

ItemStandard ValueUnit
Module Dimension 80.0 × 27.2 mm
Viewing Area 60.0 × 18.0 mm
Mounting Hole 75.0 × 28.0 mm
Dot Pitch 0.44 × 0.49 mm
Dot Size 0.40 × 0.45 mm



Electrical Characteristics

ItemSymbolStandard Value
typ.		Unit
Input Voltage VDD 3/5 V
Recommended LCD Driving
Voltage for Normal Temp.
Version module @25°C		 VDD-VO 4.35 V


SKU: WG12232E-TFH-N#A
Brand: Winstar
Disponibile: No
Si tratta dela prima recensione per questo prodotto
Kit Accessori
Prezzi per quantità
Quantità
1+
5+
10+
25+
Prezzo
€12,30
€9,10
€8,70
€8,40

Per quantita’ maggiori di 25pz prego invii la richiesta a [email protected] o chiami il +39 0332 1888005

€12,30 IVA esclusa

RECOMMENDED ONLY AS SPARE PARTS

For new projects please contact us at [email protected].



DESCRIPTION

These WG12232E are 122x32 graphics LCD modules which are built in with SBN1661G controller IC or equivalent controller.  This LCD 122x32 display supports 6800 8-bit parallel interface and 5V power supply. WG12232E also supports Negative Voltage 3V optional.  This display is built in with external oscillation, please choose WG12232J if you need internal oscillation.


DRAWING

Graphics LCD Modules, Graphics LCD, LCD 122x32 - WG12232E

SPECIFICATIONS



Interface Pin Function

Pin No.SymbolDescription
1 VSS Ground
2 VDD Power supply for logic
3 VO Contrast Adjustment
4 A0 Data/ Instruction  select signal
5 CS1 Chip select signal for IC1
6 CS2 Chip select signal for IC2
7 CL External clock 2KHZ
8 E Enable signal
9 R/ W Read/Write select signal
10~17 DB0~DB7 Data bus line
18 /RES Controller reset signal, Active Low
19 A Power supply for B/L +
20 K Power supply for B/L -



Mechanical Data

ItemStandard ValueUnit
Module Dimension 80.0 × 27.2 mm
Viewing Area 60.0 × 18.0 mm
Mounting Hole 75.0 × 28.0 mm
Dot Pitch 0.44 × 0.49 mm
Dot Size 0.40 × 0.45 mm



Electrical Characteristics

ItemSymbolStandard Value
typ.		Unit
Input Voltage VDD 3/5 V
Recommended LCD Driving
Voltage for Normal Temp.
Version module @25°C		 VDD-VO 4.35 V


Specifiche di prodotto
Brand Winstar
Size 2.2"
Risoluzione 122x32
Area Attiva (mm) 53.64x15.64
Dot Size 0.40x0.45
Colore B/L, Tipo LCD B/L white, FSTN white pos
Alimentazione 5V
Interfaccia Display 6800
Display IC SBN1661G
Struttura Costruttiva COB
Angolo Visione 6H
Frame Yes
Touch Panel No touch
Temperatura O. (°C) -20~70
Connessione Display Soldering PAD
Nr. Pin 20
Passo Pin 2.54mm
Preferred - Not Preferred Not Preferred
Download
Specifiche di prodotto
Brand Winstar
Size 2.2"
Risoluzione 122x32
Area Attiva (mm) 53.64x15.64
Dot Size 0.40x0.45
Colore B/L, Tipo LCD B/L white, FSTN white pos
Alimentazione 5V
Interfaccia Display 6800
Display IC SBN1661G
Struttura Costruttiva COB
Angolo Visione 6H
Frame Yes
Touch Panel No touch
Temperatura O. (°C) -20~70
Connessione Display Soldering PAD
Nr. Pin 20
Passo Pin 2.54mm
Preferred - Not Preferred Not Preferred
