Specifications
Current Rating:3.0Amp
Insulation Resistance: 1000MΩMin
Dielectric Withstanding Voltage: 600VAC
Contact Resistance: 20mΩMax
Operating Temperature: -40ºC to +105ºC
Materials
Contact Material:Brass, Phosphor Bronze - Gold Flashed
Insulation Material:PBT, Nylon, LCP, UL 94V-0

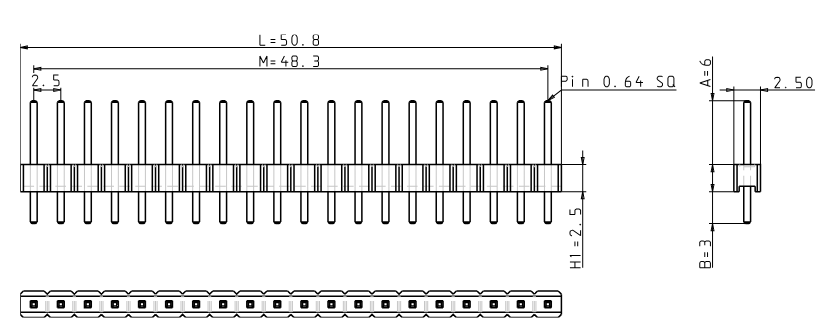

Dimensions

Specifiche di prodotto
|
Constructive Structure
|
Through Hole |
|
Pin Nr.
|
1*20 |
|
Pin Pitch
|
2.54mm |
|
Contact Direction
|
DIP |
