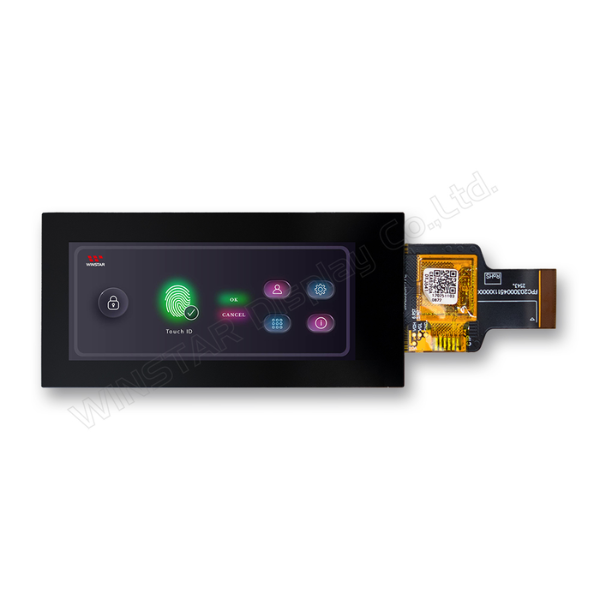

    WFN0286DA2#0PW15-FC

    TFT 2.86'' 376x960 Bar Type, Interface RGB+SPI, 450cd/m², Wide View Angle (IPS), Super extended Temperature, Capacitive touch panel I2C intrface (IC ST1633i)
    Brand: Winstar
    Cod.: WFN0286DA2#0PW15-FC
    Prezzi per quantità
    Quantità
    1+
    5+
    10+
    Prezzo
    €28,80
    €25,90
    €24,40

    Per quantità maggiori di 24pz prego invii la richiesta a [email protected] o chiami il +39 0332 1888005

    Disponibilità: Disponibile
    €28,80 IVA esclusa
    i h

    DESCRIPTION

    WFN0286DA2#0PW15-FC is a 2.86-inch bar type TFT LCD module with a resolution of 376x960 pixels. This color active matrix display uses amorphous silicon TFT as the switching device and has a 2.86-inch diagonally measured active area. The module is suitable for applications requiring a compact narrow-format display.

    This module features a projected capacitive touch panel (PCAP) with optical bonding and supports 2-point touch. The touch panel uses an ST1633i driver IC or equivalent and supports the I2C interface. The optical bonding structure integrates the display and touch panel more closely.

    The display adopts IPS technology and provides wide viewing angles of 85 degrees in all directions. It has a typical brightness of 450 cd/m². The module is driven by the ST7701P IC or equivalent and supports a 3-wire SPI + RGB 24-bit interface.

    WFN0286DA2#0PW15-FC is a normally black, transmissive TFT LCD module with a glare surface and an aspect ratio of 1:2.5. The operating temperature range is -30℃ to +85℃, and the storage temperature range is also -30℃ to +85℃. This module is suitable for applications requiring a compact bar type TFT display with projected capacitive touch.



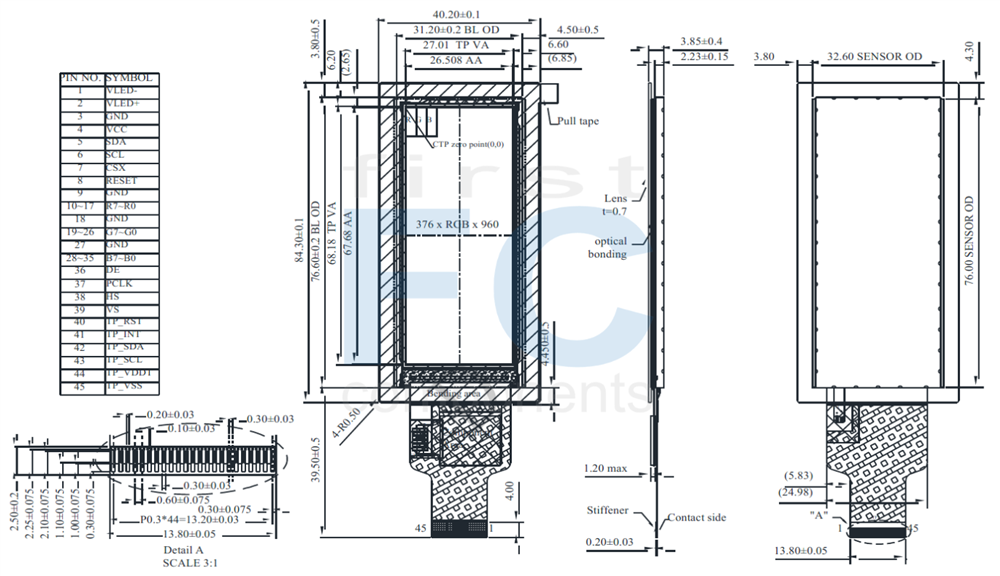

    DRAWING

    SPECIFICATIONS

    General Specifications

    ItemDimensionUnit
    Size 2.86 inch
    Dot Matrix 376 x RGB x 960 (TFT) dots
    Module dimension 40.2 (W) x 84.3 (H) x 3.85 (D) mm
    Active area 26.508 x 67.68 mm
    Pixel Pitch 0.0705 x 0.0705 mm
    LCD type TFT, Normally Black, Transmissive
    Viewing angle 85/85/85/85
    Aspect Ratio 1:2.5
    TFT Interface 3W SPI+RGB24bit
    TFT Driver IC ST7701P or Equivalent
    Backlight Type LED, Normally White
    CTP Driver IC ST1633i or equivalent
    CTP Interface I2C
    CTP FW Version 0x02
    CTP Resolution 376x960
    Touch Panel Projected Capacitive Touch Panel (PCAP)
    Surface Glare



    Absolute Maximum Ratings

    ItemSymbolMinTypMaxUnit
    Operating Temperature TOP -30 - +85 ℃
    Storage Temperature TST -30 - +85 ℃



    Electronical Characteristics

    Operating conditions

    ItemSymbolMinTypMaxUnit
    Interface Supply Voltage VCC 2.5 2.8 3.3 V
    Current for Driver IVCC - 25 40 mA
    Input voltage 'H' level VIH 0.7*VCC - VCC V
    Input voltage 'L' level VIL GND - 0.3*VCC V
    Output voltage 'H' level VOH 0.8* VCC - VCC V
    Output voltage 'L' level VOL GND - 0.2* VCC V
    Supply CTP TP_VDDT 3.0 3.3 3.6 V
    TP_IDDT - 2.6 4.0 mA


    LED driving conditions

    ParameterSymbolMinTypMaxUnit
    LED current - - 20 - mA
    LED voltage VLED+ 18.5 20.0 22.4 V
    LED Life Time - 50,000 - - Hr



    Interface

    LCM PIN Definition

    Match connector: Molex 5025984593 or equivalent.
    Pin No.SymbolDescription
    1 VLED- LED backlight cathode
    2 VLED+ LED backlight anode
    3 GND Power ground
    4 VCC Power Supply for Digital Circuit
    5 SDA SDA: Serial data input/output bidirectional pin for SPI Interface.
    6 SCL SCL: Serial clock input for SPI interface.
    7 CSX - A chip select signal
    Low: the chip is selected and accessible
    High: the chip is not selected and not accessible
    8 RESET Reset signal(low active)
    9 GND Power ground
    10~17 R7~R0 Red Data 7~0
    18 GND Power ground
    19~26 G7~G0 Green Data 7~0
    27 GND Power ground
    28~35 B7~B0 Blue Data 7~0
    36 DE Data Enable (ENABLE)
    37 PCLK Clock Signals ; Latch Data at the Falling Edge (DOTCLK)
    38 HS Line synchronizing signal for RGB interface operation (HSYNC)
    39 VS Frame synchronizing signal for RGB interface operation (VSYNC)
    40 TP_RST CTP External Reset, Low is active
    41 TP_INT CTP External interrupt to the host
    42 TP_SDA CTP I2C data input and output
    43 TP_SCL CTP I2C clock input
    44 TP_VDDT CTP Power supply: +3.3V
    45 TP_VSS CTP Ground for analog circuit


    Specifiche di prodotto
    Size 2.86"
    Resolution 376x960
    Active Area (mm) 26.50x67.68
    Color Full Color
    Display Interface RGB+SPI
    Display IC No
    View Angle IPS
    Frame No
    Touch Panel Capacitive
    O. Temperature (°C) -30~85
    Data Connection FPC for ZIF Connector
    Pin Nr. 45
    Pin Pitch 0.3mm
    Touch Panel IC Controller ST1633I
    Preferred - Not Preferred Preferred
    *
    *
    *
    *
