    TFT 5.7" 320x240 LCD Panel, Interface RGB, 450 cd/m2, Resistive Touch Panel, Anti-Glare Polarizer (Replacement Evervision P/N VGG322403-7UFLWF)
    Cod.: NT057-R002ME

    Kit accessori

    Prezzi per quantità
    Quantità
    1+
    5+
    10+
    Prezzo
    €84,70
    €76,20
    €71,70

    Per quantità maggiori di 24pz prego invii la richiesta a [email protected] o chiami il +39 0332 1888005

    Disponibilità: Il prodotto non può essere aggiunto al carrello. Prego verificare con FC la futura disponibilità
    €84,70 IVA esclusa
    i h

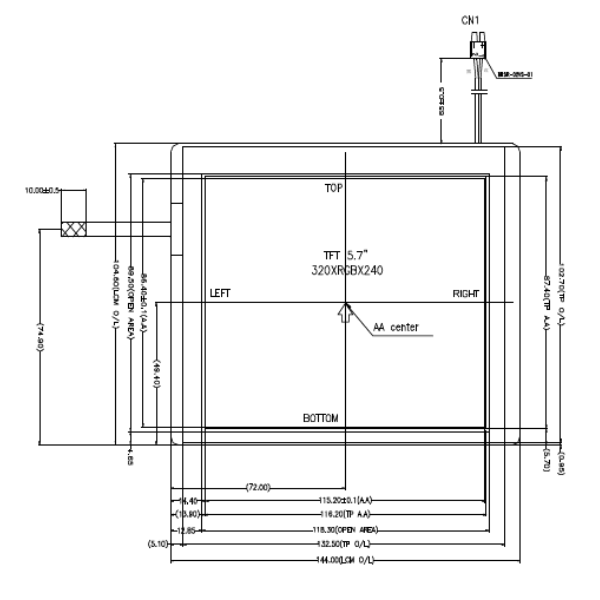

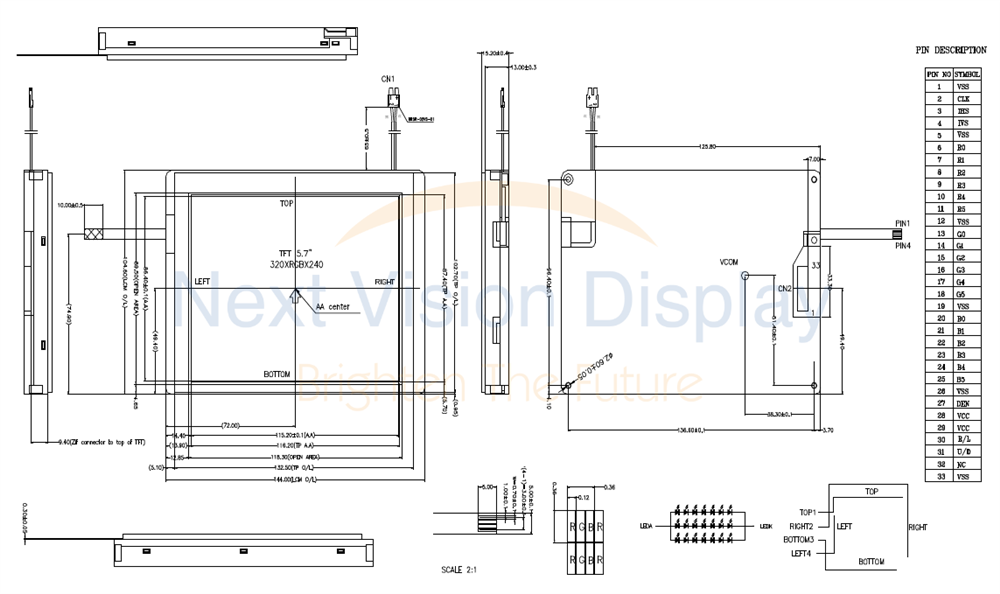

    DRAWING





    SPECIFICATIONS

    General Specifications

    ItemContentsUnit
    LCD Type TFT/Transmissive
    Module Size 144.00 x 104.60 x 15.20(TOTAL) mm
    Active Size (W*H*T) 115.20 x 86.40 mm
    Pixel Pitch (W*H) 0.12 x 0.36 mm
    Number of Dots 320x240
    Driver IC HX8218C04+HX8615C
    Interface Type 18-bit RGB
    Top Polarizer Type Anti-Glare
    Recommend Viewing Direction 6 O'Clock
    Gray Scale Inversion Direction 12 O'Clock
    Backlight Type 21-dies white LED
    Touch Panel Type Resistive



    Electrical Characteristics

    Absolute Maximum Ratings

    ParameterSymbolMin.Max.Unit
    Supply voltage for digital VCC -0.3 4.3 V
    Supply current (One LED) ILED - 30 mA
    Operating temperature TOP -20 +70 °C
    Storage temperature TST -30 +80 °C

    Input Power

    ParameterSymbolMin.Typ.MaxUnit
    Power supply Voltage VCC 3.0 3.3 3.6 V
    Input Voltage VIL 0 - 0.3VCC V
    VIH 0.7 VCC - VCC
    Power Consumption PL - (0.24) - W
    Frame Frequency FV - 60 - HZ
    Dot Clock TCLK - 6.4 7 MHz



    Interface

    Input /Output Pin Assignment

    PinPin NameDescription
    1 VSS Power ground
    2 CLK Clock singal. Latching data at the rising edge.
    3 IHS Horizontal sync input in digital RGB and CCIR601 mode.
    4 IVS Vertical sync input in digital RGB and CCIR601 mode. (Short to GND if not used)
    5 VSS Power ground
    6~11 R0~R5 Red data input
    12 VSS Power ground
    13~18 G0~G5 Green data input
    19 VSS Power ground
    20~25 B0~B5 Blue data input
    26 VSS Power ground
    27 DEN Input data enable control. When DE mode, active High to enable data input. Default pull low.
    28 VCC + 3.3V Power supply
    29 VCC + 3.3V Power supply
    30 R/L Right-and-left scan setting. ("L": normally, "H": Right and left reversal)
    31 UD Upd/down scan setting. ("L": normally scan, "H": Up-and-down reversal)
    32 NC No connection
    33 VSS Power ground
    Specifiche di prodotto
    Size 5.7"
    Resolution 320x240
    Active Area (mm) 115.20x86.40
    Color Full Color
    Display Interface RGB
    Display IC No
    View Angle TN
    Frame No
    Touch Panel Resistive
    O. Temperature (°C) -20~70
    Data Connection ZIF Connector
    Pin Nr. 33
    Pin Pitch 0.5mm
    Preferred - Not Preferred Preferred
    *
    *
    *
    *
