    WF70-1024600D5L#ASPW3-FC

    TFT 7" 1024x600 LCD Panel, Interface LVDS, High Brightness 1000 cd/m², Wide View Angle (IPS), Super extended Temperature, Capacitive touch panel I2C Interface (GG, IC GT911)
    Brand: Winstar
    Cod.: WF70-1024600D5L#ASPW3-FC

    Kit accessori

    Prezzi per quantità
    Quantità
    1+
    5+
    10+
    Prezzo
    €60,30
    €54,30
    €51,00

    Per quantità maggiori di 24pz prego invii la richiesta a [email protected] o chiami il +39 0332 1888005

    Disponibilità: Disponibile
    €60,30 IVA esclusa
    i h

    DESCRIPTION

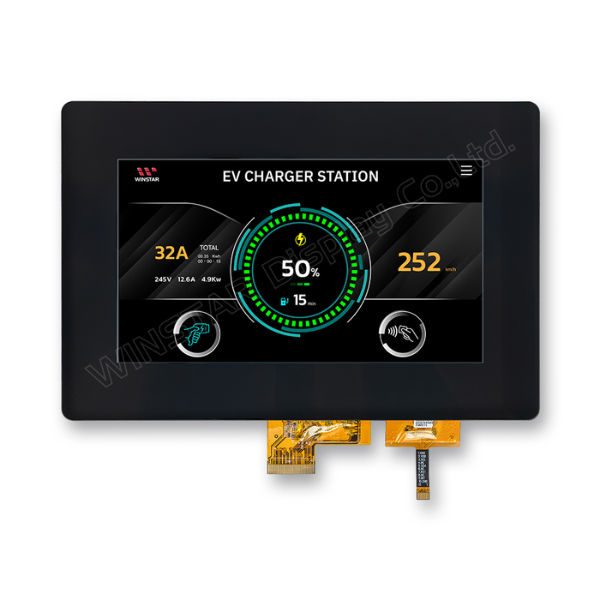

    The WF70-1024600D5L#ASPW3-FC is a 7-inch high-brightness, wide-temperature TFT display module with a glass cover display, featuring a projected capacitive touch panel (PCAP) and enhanced cover glass for added durability. This display is designed to withstand harsh environments, offering protection against scratches and impact. It boasts a 1024×600 resolution, JD9165BA driver IC, and LVDS interface, with 1000 cd/m² brightness and a 1000:1 contrast ratio, ensuring exceptional visibility even in outdoor or high-ambient-light settings. This makes it perfect for applications such as digital signage, industrial equipment, self-service kiosks, and automotive displays.

    With IPS technology, it provides an 80° wide viewing angle, delivering stable colors and clarity from different perspectives. The LVDS interface ensures high-speed, long-distance data transmission with strong anti-interference capabilities.

    The WF70-1024600D5 series shares the same active area size as the WF70-1024600A8 series but introduces ultra-wide temperature operation (-30°C to +85°C), making it suitable for demanding environments. Unlike the WF70-1024600A8 series, this model is specifically designed for applications requiring high brightness and durability, such as outdoor equipment and automotive displays.

    Additionally, the GT911 touch IC supports the I2C interface and 5-point touch, enhancing touch responsiveness and durability for HMI interfaces, self-service kiosks, and medical equipment.

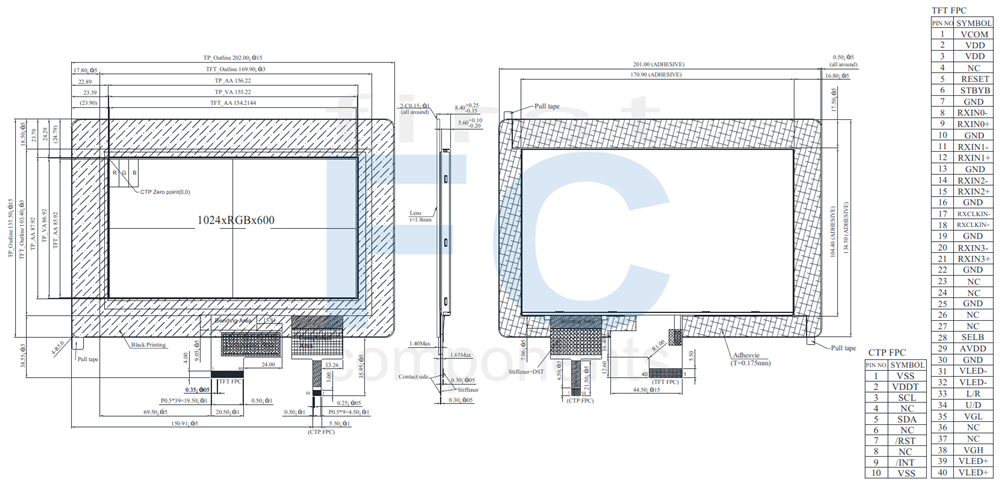

    DRAWING

    SPECIFICATIONS

    General Specifications

    ItemDimensionUnit
    Size 7.0 inch
    Dot Matrix 1024 × RGB × 600(TFT) dots
    Module dimension 202.0(W) × 135.5(H) × 8.4(D) mm
    Active area 154.2144 × 85.92 mm
    Pixel pitch 0.1506 × 0.1432 mm
    LCD type TFT, Normally Black, Transmissive
    View Angle 80/80/80/80
    TFT Driver IC JD9165BA
    Backlight Type LED, Normally White
    TFT Interface LVDS
    PCAP IC GT911
    PCAP Interface I2C
    PCAP FW Version 67
    PCAP Resolution 1024*600
    Touch Panel Projected capacitive touch panel (PCAP)
    Surface Glare



    Absolute Maximum Ratings

    ItemSymbolMinTypMaxUnit
    Operating Temperature TOP -30 - +85 ℃
    Storage Temperature TST -30 - +85 ℃



    Electrical Characteristics

    Operating conditions

    ItemSymbolMin.Typ.Max.Unit
    Power voltage VDD 3.0 3.3 3.6 V
    Analog Power AVDD - 11 - V
    TFT Gate ON Voltage VGH 19.5 20 20 V
    TFT Gate OFF Voltage VGL -8.5 -8 -7.5 V
    TFT Common Voltage Vcom - 4.9 - V
    Power Current IDD - 18 27 mA
    Analog Power Current IAVDD - 20.94 - mA
    TFT Gate ON Current IVGH - 1.5 - mA
    TFT Gate OFF Current IVGL - 1.5 - mA
    TFT Common Current IVCOM - 1 - uA
    Supply CTP VDDT 3.0 3.3 3.5 V
    ICTP - 16 24 mA


    LED driving conditions

    ParameterSymbolMin.Typ.Max.Unit
    LED current - - 240 - mA
    LED voltage VLED+ 16.2 19.2 21.0 V
    LED Life Time - 50,000 - - Hr



    Interface

    1.LCM PIN Definition

    Pin No.SymbolFunction
    1 VCOM Common Voltage
    2 VDD Digital circuit
    3 VDD Digital circuit
    4 NC No connection
    5 RESET Global reset pin
    6 STBYB Standby mode, Normally pulled high
    STBYB = “1”, normal operation
    STBYB = “0”, timing controller, source driver will turn off, all output are High-Z
    7 GND Ground
    8 RXIN0- Negative LVDS differential data input
    9 RXIN0+ Positive LVDS differential data input
    10 GND Ground
    11 RXIN1- Negative LVDS differential data input
    12 RXIN1+ Positive LVDS differential data input
    13 GND Ground
    14 RXIN2- Negative LVDS differential data input
    15 RXIN2+ Positive LVDS differential data input
    16 GND Ground
    17 RXCLKIN- Negative LVDS differential clock input
    18 RXCLKIN+ Positive LVDS differential clock input
    19 GND Ground
    20 RXIN3- Negative LVDS differential data input
    21 RXIN3+ Positive LVDS differential data input
    22 GND Ground
    23 NC No connection
    24 NC No connection
    25 GND Ground
    26 NC No connection
    27 NC No connection
    28 SELB 6bit/8bit mode select
    H:6bit / L:8bit
    29 AVDD Power for Analog Circuit
    30 GND Ground
    31 VLED- LED_ Cathode
    32 VLED- LED_ Cathode
    33 L/R Horizontal inversion
    34 U/D Vertical inversion
    35 VGL Negative power for TFT
    36 NC No connection
    37 NC No connection
    38 VGH Positive power for TFT
    39 VLED+ LED_ Anode
    40 VLED+ LED_ Anode

    2.PCAP PIN Definition

    PinSymbolFunction
    1 VSS Ground for analog circuit
    2 VDDT Power Supply : +3.3V
    3 SCL I2C clock input
    4 NC No connect
    5 SDA I2C data input and output
    6 NC No connect
    7 /RST External Reset, Low is active
    8 NC No connect
    9 /INT External interrupt to the host
    10 VSS Ground for analog circuit

    Specifiche di prodotto
    Size 7"
    Resolution 1024x600
    Active Area (mm) 154.21x85.92
    Color Full Color
    Display Interface LVDS
    Display IC No
    View Angle IPS
    Sunlight Readable High 601~1200cd/m²
    Frame No
    Touch Panel Capacitive
    O. Temperature (°C) -30~85
    Data Connection FPC for ZIF Connector
    Pin Nr. 40
    Pin Pitch 0.5mm
    Touch Panel IC Controller GT911
    Preferred - Not Preferred Preferred
    *
    *
    *
    *
