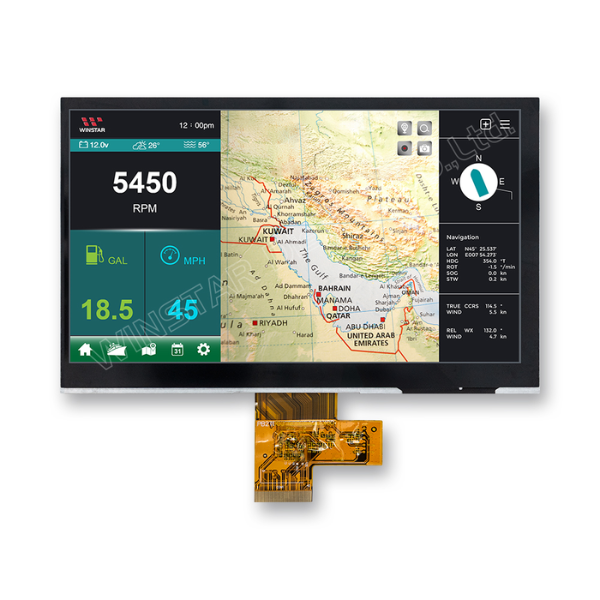

WF70-1024600D5L#0SPW3-FC

Immagine di WF70-1024600D5L#0SPW3-FC Immagine di WF70-1024600D5L#0SPW3-FC
TFT 7" 1024x600 LCD Panel, Interface LVDS, High Brightness 1000 cd/m², Wide View Angle (IPS), Super extended Temperature, Capacitive touch panel I2C Interface (GG, IC ILI2130)

DESCRIPTION

The WF70-1024600D5L#0SPW3-FC is a 7-inch high-brightness TFT display module designed for demanding applications. With a 1024x600 resolution, 1000 cd/m² brightness, and a 1000:1 contrast ratio, it ensures excellent visibility even in bright environments. The display module features a wide-temperature range and enhanced temperature resistance, making it ideal for outdoor equipment, digital signage, industrial control panels, and automotive displays. It offers improved stability and temperature resistance for extreme environments. The module integrates a JD9165BA driver IC and supports the LVDS interface for reliable, high-speed data transfer with strong resistance to interference.

IPS technology provides an 80° wide viewing angle, ensuring stable colors and clear image quality even when viewed from the side.

The WF70-1024600D5L#0SPW3-FC also includes a projected capacitive (PCAP) touch panel with the ILI2130 touch IC, which supports the I2C interface and 5-point touch functionality. This makes it ideal for applications such as HMI interfaces, self-service kiosks, and medical devices that require intuitive touch operation.

With an operating temperature range of -30℃ to +85℃ and a storage temperature range of -30℃ to +85℃, the WF70-1024600D5L#0SPW3-FC delivers reliable performance in harsh conditions, making it an excellent choice for industrial automation, automotive applications (such as EV charging stations and vehicle dashboards), and medical equipment.

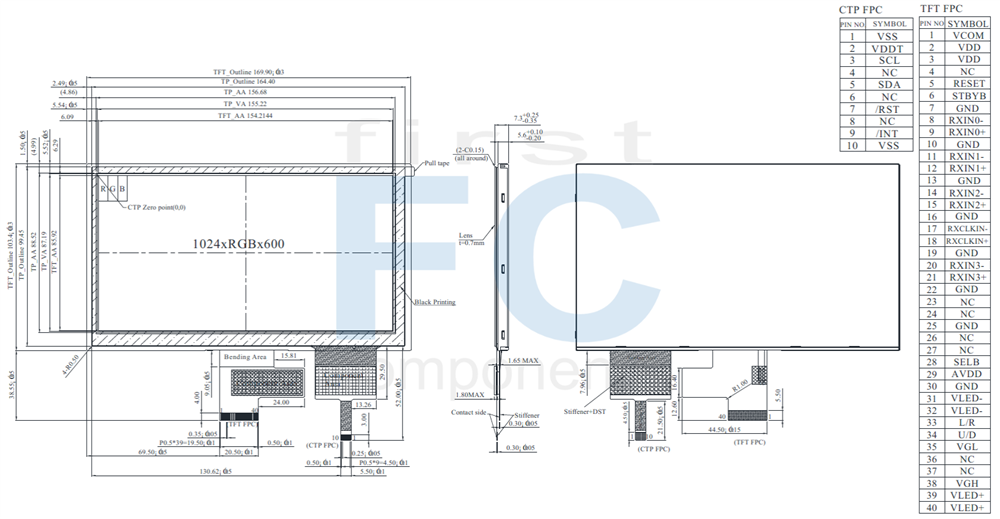

DRAWING

SPECIFICATIONS

General Specifications

ItemDimensionUnit
Size 7.0 inch
Dot Matrix 1024 × RGB × 600(TFT) dots
Module dimension 169.9(W) × 103.4(H) × 7.3(D) mm
Active area 154.2144 × 85.92 mm
Pixel pitch 0.1506 × 0.1432 mm
LCD type TFT, Normally Black, Transmissive
View Angle 80/80/80/80
TFT Driver IC JD9165BA
Backlight Type LED, Normally White
TFT Interface LVDS
PCAP IC ILI2130
PCAP Interface I2C
PCAP FW Version 0x07.0x00.0x00.0x00.0x65.0x90.0x00.0x01
PCAP Resolution 16384*16384
Touch Panel Projected capacitive touch panel (PCAP)
Surface Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -30 － +85 ℃
Storage Temperature TST -30 － +85 ℃



Electrical Characteristics

Operating conditions

ItemSymbolMin.Typ.Max.Unit
Power voltage VDD 3.0 3.3 3.6 V
Analog Power AVDD - 11 - V
TFT Gate ON Voltage VGH 19.5 20 20 V
TFT Gate OFF Voltage VGL -8.5 -8 -7.5 V
TFT Common Voltage Vcom - 4.9 - V
 Power Current IDD - 18 27 mA
Analog Power Current IAVDD - 20.94 - mA
TFT Gate ON Current IVGH - 1.5 - mA
TFT Gate OFF Current IVGL - 1.5 - mA
TFT Common Current IVCOM - 1 - uA
Supply CTP VDDT 3.0 3.3 3.6 V
ICTP － 65 98 mA



LED driving conditions

ParameterSymbolMin.Typ.Max.Unit
LED current － － 240 － mA
LED voltage VLED+ 16.2 19.2 21.0 V
LED Life Time － 50,000 － － Hr



Interface

1.LCM PIN Definition

Pin No.SymbolFunction
1 VCOM Common Voltage
2 VDD Digital circuit
3 VDD Digital circuit
4 NC No connection
5 RESET Global reset pin
6 STBYB Standby mode, Normally pulled high
STBYB = “1”, normal operation
STBYB = “0”, timing controller, source driver will turn off, all output are High-Z
7 GND Ground
8 RXIN0- Negative LVDS differential data input
9 RXIN0+ Positive LVDS differential data input
10 GND Ground
11 RXIN1- Negative LVDS differential data input
12 RXIN1+ Positive LVDS differential data input
13 GND Ground
14 RXIN2- Negative LVDS differential data input
15 RXIN2+ Positive LVDS differential data input
16 GND Ground
17 RXCLKIN- Negative LVDS differential clock input
18 RXCLKIN+ Positive LVDS differential clock input
19 GND Ground
20 RXIN3- Negative LVDS differential data input
21 RXIN3+ Positive LVDS differential data input
22 GND Ground
23 NC No connection
24 NC No connection
25 GND Ground
26 NC No connection
27 NC No connection
28 SELB 6bit/8bit mode select
H:6bit / L:8bit
29 AVDD Power for Analog Circuit
30 GND Ground
31 VLED- LED_ Cathode
32 VLED- LED_ Cathode
33 L/R Horizontal inversion
34 U/D Vertical inversion
35 VGL Negative power for TFT
36 NC No connection
37 NC No connection
38 VGH Positive power for TFT
39 VLED+ LED_ Anode
40 VLED+ LED_ Anode


2.PCAP PIN Definition

PinSymbolFunction
1 VSS Ground for analog circuit
2 VDDT Power Supply : +3.3V
3 SCL I2C clock input
4 NC No connect
5 SDA I2C data input and output
6 NC No connect
7 /RST External Reset, Low is active
8 NC No connect
9 /INT External interrupt to the host
10 VSS Ground for analog circuit
SKU: WF70-1024600D5L#0SPW3-FC
Brand: Winstar
Disponibile: Si
Si tratta dela prima recensione per questo prodotto
Kit Accessori
Prezzi per quantità
Quantità
1+
5+
10+
Prezzo
€59,10
€53,20
€45,30

Per quantita’ maggiori di 25pz prego invii la richiesta a [email protected] o chiami il +39 0332 1888005

€59,10 IVA esclusa

DESCRIPTION

The WF70-1024600D5L#0SPW3-FC is a 7-inch high-brightness TFT display module designed for demanding applications. With a 1024x600 resolution, 1000 cd/m² brightness, and a 1000:1 contrast ratio, it ensures excellent visibility even in bright environments. The display module features a wide-temperature range and enhanced temperature resistance, making it ideal for outdoor equipment, digital signage, industrial control panels, and automotive displays. It offers improved stability and temperature resistance for extreme environments. The module integrates a JD9165BA driver IC and supports the LVDS interface for reliable, high-speed data transfer with strong resistance to interference.

IPS technology provides an 80° wide viewing angle, ensuring stable colors and clear image quality even when viewed from the side.

The WF70-1024600D5L#0SPW3-FC also includes a projected capacitive (PCAP) touch panel with the ILI2130 touch IC, which supports the I2C interface and 5-point touch functionality. This makes it ideal for applications such as HMI interfaces, self-service kiosks, and medical devices that require intuitive touch operation.

With an operating temperature range of -30℃ to +85℃ and a storage temperature range of -30℃ to +85℃, the WF70-1024600D5L#0SPW3-FC delivers reliable performance in harsh conditions, making it an excellent choice for industrial automation, automotive applications (such as EV charging stations and vehicle dashboards), and medical equipment.



DRAWING

SPECIFICATIONS

General Specifications

ItemDimensionUnit
Size 7.0 inch
Dot Matrix 1024 × RGB × 600(TFT) dots
Module dimension 169.9(W) × 103.4(H) × 7.3(D) mm
Active area 154.2144 × 85.92 mm
Pixel pitch 0.1506 × 0.1432 mm
LCD type TFT, Normally Black, Transmissive
View Angle 80/80/80/80
TFT Driver IC JD9165BA
Backlight Type LED, Normally White
TFT Interface LVDS
PCAP IC ILI2130
PCAP Interface I2C
PCAP FW Version 0x07.0x00.0x00.0x00.0x65.0x90.0x00.0x01
PCAP Resolution 16384*16384
Touch Panel Projected capacitive touch panel (PCAP)
Surface Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -30 － +85 ℃
Storage Temperature TST -30 － +85 ℃



Electrical Characteristics

Operating conditions

ItemSymbolMin.Typ.Max.Unit
Power voltage VDD 3.0 3.3 3.6 V
Analog Power AVDD - 11 - V
TFT Gate ON Voltage VGH 19.5 20 20 V
TFT Gate OFF Voltage VGL -8.5 -8 -7.5 V
TFT Common Voltage Vcom - 4.9 - V
 Power Current IDD - 18 27 mA
Analog Power Current IAVDD - 20.94 - mA
TFT Gate ON Current IVGH - 1.5 - mA
TFT Gate OFF Current IVGL - 1.5 - mA
TFT Common Current IVCOM - 1 - uA
Supply CTP VDDT 3.0 3.3 3.6 V
ICTP － 65 98 mA



LED driving conditions

ParameterSymbolMin.Typ.Max.Unit
LED current － － 240 － mA
LED voltage VLED+ 16.2 19.2 21.0 V
LED Life Time － 50,000 － － Hr



Interface

1.LCM PIN Definition

Pin No.SymbolFunction
1 VCOM Common Voltage
2 VDD Digital circuit
3 VDD Digital circuit
4 NC No connection
5 RESET Global reset pin
6 STBYB Standby mode, Normally pulled high
STBYB = “1”, normal operation
STBYB = “0”, timing controller, source driver will turn off, all output are High-Z
7 GND Ground
8 RXIN0- Negative LVDS differential data input
9 RXIN0+ Positive LVDS differential data input
10 GND Ground
11 RXIN1- Negative LVDS differential data input
12 RXIN1+ Positive LVDS differential data input
13 GND Ground
14 RXIN2- Negative LVDS differential data input
15 RXIN2+ Positive LVDS differential data input
16 GND Ground
17 RXCLKIN- Negative LVDS differential clock input
18 RXCLKIN+ Positive LVDS differential clock input
19 GND Ground
20 RXIN3- Negative LVDS differential data input
21 RXIN3+ Positive LVDS differential data input
22 GND Ground
23 NC No connection
24 NC No connection
25 GND Ground
26 NC No connection
27 NC No connection
28 SELB 6bit/8bit mode select
H:6bit / L:8bit
29 AVDD Power for Analog Circuit
30 GND Ground
31 VLED- LED_ Cathode
32 VLED- LED_ Cathode
33 L/R Horizontal inversion
34 U/D Vertical inversion
35 VGL Negative power for TFT
36 NC No connection
37 NC No connection
38 VGH Positive power for TFT
39 VLED+ LED_ Anode
40 VLED+ LED_ Anode


2.PCAP PIN Definition

PinSymbolFunction
1 VSS Ground for analog circuit
2 VDDT Power Supply : +3.3V
3 SCL I2C clock input
4 NC No connect
5 SDA I2C data input and output
6 NC No connect
7 /RST External Reset, Low is active
8 NC No connect
9 /INT External interrupt to the host
10 VSS Ground for analog circuit
Specifiche di prodotto
Brand Winstar
Size 7"
Risoluzione 1024x600
Area Attiva (mm) 154.21x85.92
Colore Full Color
Interfaccia Display LVDS
Display IC No
Angolo Visione IPS
Sunlight Readable High 601~1200cd/m²
Frame No
Touch Panel Capacitive
Temperatura O. (°C) -30~85
Connessione Display FPC for ZIF Connector
Nr. Pin 40
Passo Pin 0.5mm
IC Controller Touch Panel ILI2130
Preferred - Not Preferred Preferred
