    WF35-240320ND#0W0-FC

    TFT 3.5" 240x320, Monochrome, LCD + IC Controller, Interface MCU (Parallel) IC ST7511, 500cd/m², Super extended Temperature, No touch
    Brand: Winstar
    Cod.: WF35-240320ND#0W0-FC

    Kit accessori

    Prezzi per quantità
    Quantità
    1+
    5+
    10+
    Prezzo
    €53,40
    €48,10
    €45,20

    Per quantità maggiori di 24pz prego invii la richiesta a [email protected] o chiami il +39 0332 1888005

    Disponibilità: Disponibile
    €53,40 IVA esclusa
    i h

    DESCRIPTION

    The Winstar WF35-240320ND#0W0-FC is a graphic TFT LCD display with a diagonal of 3.5 " and a resolution of 240 x 320 mono TFT Display. This is a monochrome model, but applied in the active matrix TFT; which allows for high contrast (900:1) and short response time.

    Mono TFT models are featured with very high contrast while comparing with the monochrome STN displays. The DFSTN displays have the good black background with white character performance, but you might find the purplish background phenomenon.

    The monochrome TFT display is a very good solution instead to replace the DFSTN. It has high contrast ratio, wide viewing angle, and built in controller with MCU interface; so the customer can use regular micro processor to drive it. Most importantly, the price for some modules is better than STN.

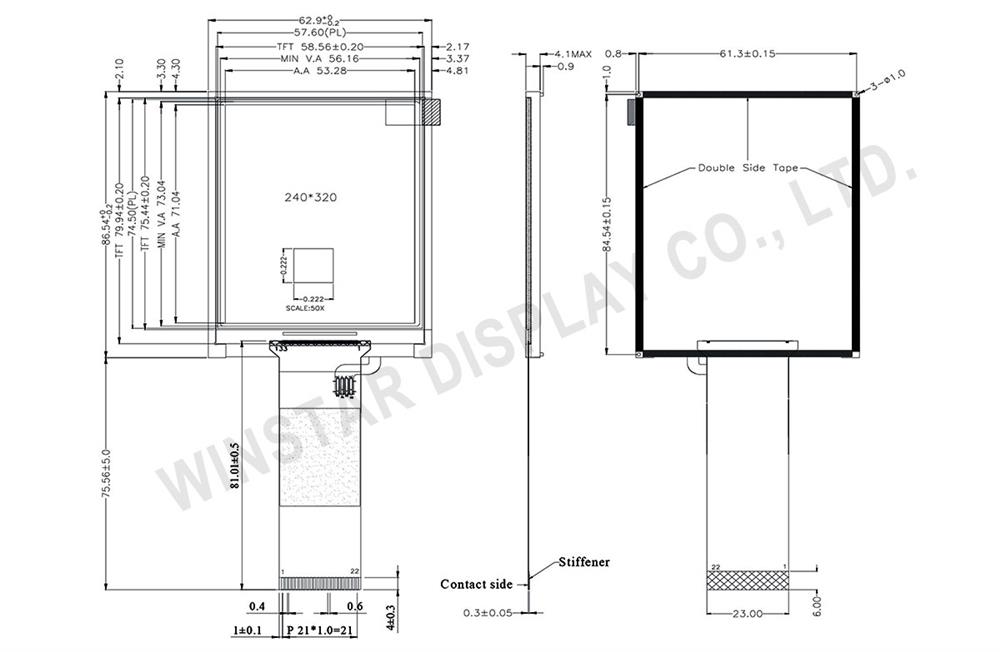

    DRAWING

    SPECIFICATIONS

    Interface

    PinSymbolFunction
    1 GND System ground
    2 VDD Power Supply : +3.3V
    3 NC No connect
    4 A0 Data/Command select
    5 /WR(R/W) Write strobe signal
    6 /RD(E) Read strobe signal
    7~14 DB0~DB7 Data bus
    15 /CS Chip select
    16 /RESET(RSTB) Hardware reset
    17 IF0 Mode select
    18 IF1 Mode select
    19 A LED+
    20 K LED-
    21~22 NC No connect



    General Specifications

    ItemDimensionUnit
    Size 3.5 inch
    Dot Matrix 240 x 320 dots
    Module dimension 62.9 × 86.54 × 4.1 mm
    Active area 53.28 × 71.04 mm
    Dot pitch 0.222 × 0.222 mm
    LCD type TFT, Mono Transmissive
    View Direction Wide View
    Gray Scale 16 Gray scale (4BPP)/ 4 Gray scale (2BPP)/ 2 Gray scale (1BPP)
    Driver IC ST7511
    Backlight Type LED, Normally White
    Touch Panel Without touch panel
    Surface Glare



    Absolute Maximum Ratings

    ItemSymbolMinTypMaxUnit
    Operating Temperature TOP -30 - +80 ℃
    Storage Temperature TST -30 - +80 ℃



    Electrical Characteristics

    ItemSymbolConditionMinTypMaxUnit
    Supply Voltage For LCM VDD - 3.0 3.3 3.6 V
    Supply Current For LCM IDD - - 13 - mA
    Power Consumption - - - - 46.8 mW


    Specifiche di prodotto
    Size 3.5"
    Resolution 240x320
    Active Area (mm) 53.28x71.04
    Color Monochrome
    Display Interface MCU (Parallel)
    Display IC ST7511
    View Angle MVA
    Frame No
    Touch Panel No touch
    O. Temperature (°C) -30~80
    Data Connection FPC for ZIF Connector
    Pin Nr. 22
    Pin Pitch 1mm
    Preferred - Not Preferred Not Preferred
    *
    *
    *
    *
