    PH102600T013-ZHC05

    TFT 7" 1024x600 LCD Panel, Interface RGB, Wide View Angle (IPS), High Brightness 1000cd/m², Capacitive touch panel I2C interface (GG, HY4635 IC), V-Com, B/L Power on FPC
    Brand: Powertip
    Cod.: PH102600T013-ZHC05

    Kit accessori

    Prezzi per quantità
    Quantità
    1+
    5+
    10+
    Prezzo
    €59,60
    €53,70
    €50,40

    Per quantità maggiori di 24pz prego invii la richiesta a [email protected] o chiami il +39 0332 1888005

    Disponibilità: Disponibile
    €59,60 IVA esclusa
    i h

    DESCRIPTION

    PH102600T013-ZHC05 is a 7-inch display, featuring IPS /with V com, BL power, high brightness.

    Perfect for outdoor application, such as EV charger, measurement device, drone controller and solar energy controller.

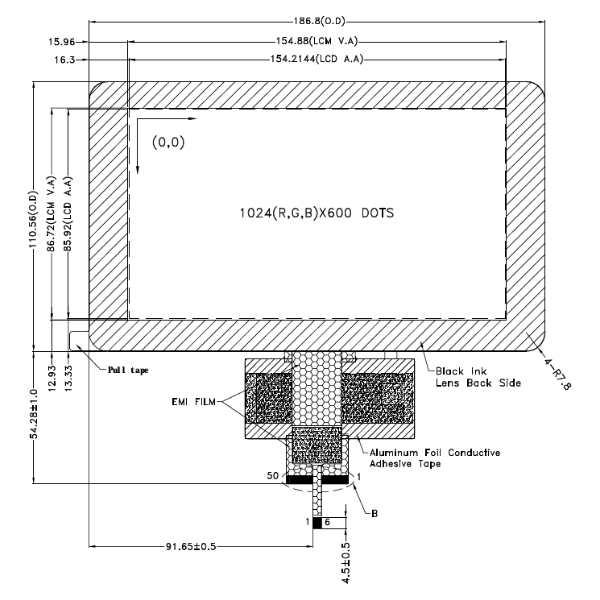

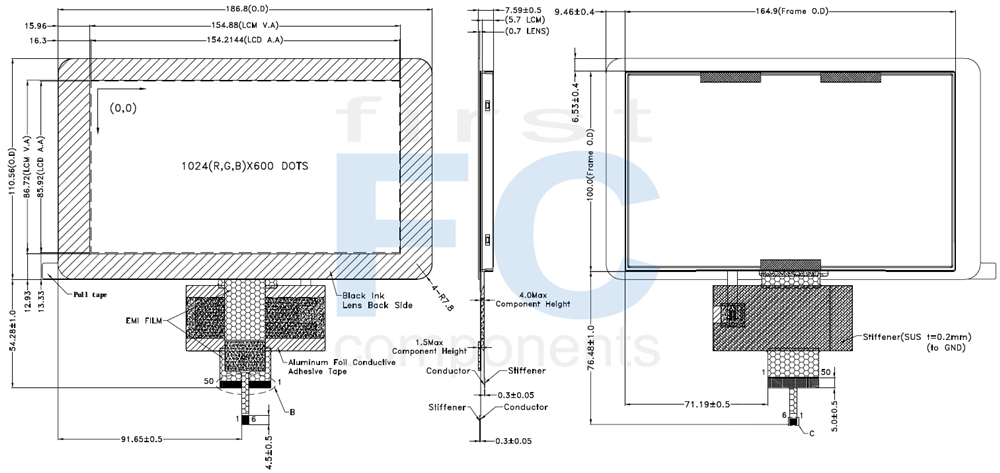

    DRAWING



    SPECIFICATIONS

    Interface Pin Function

    Pin
    Number
    SymbolFunction
    1 GND Power ground
    2 VDD Power for Digital Circuit
    3 VDD Power for Digital Circuit
    4 VCC Power for LED backlight
    5 VCC Power for LED backlight
    6 PWM Shutdown & Dimming control input for backlight- Do not allow this pin to float. "Hi"=100%, "Low"=0%.
    7 GND Power ground
    8 R0 Red Data
    9 R1

    Red Data

    10 R2 Red Data
    11 R3 Red Data
    12 GND Power ground
    13 R4

    Red Data

    14 R5 Red Data
    15 R6 Red Data
    16 R7 Red Data
    17 GND Power ground
    18 G0 Green Data
    19 G1 Green Data
    20 G2 Green Data
    21 G3 Green Data
    22 GND Power ground
    23 G4 Green Data
    24 G5 Green Data
    25 G6 Green Data
    26 G7 Green Data
    27 GND Power ground
    28 B0 Blue Data
    29 B1 Blue Data
    30 B2

    Blue Data

    31 B3 Blue Data
    32 GND Power ground
    33 B4 Blue Data
    34 B5 Blue Data
    35 B6 Blue Data
    36 B7 Blue Data
    37 GND Power ground
    38 HS Line synchronization signal. Horizontal Sync Input.
    39 VS Frame synchronization signal. Vertical Sync Input.
    40 GND Power ground
    41 DE Data Enable
    42  GND Power ground
    43  DCLK Sample clock- Data will be latched at the falling edge of DCLK.
    44  GND Power ground
    45  NC  No Connect
    46  NC  No Connect
    47  NC No Connect
    48  NC  No Connect
    49  /RESET  Global Reset (Low Active)
    50  GND   Power ground



    CTP Interface

    Pin
    Number
    SymbolFunction
    1 GND Ground
    2 TPVDD Power Supply for CTP
    3 SCL I2C Clock
    4 SDA I2C Data
    5 INT

    The interrupt from the CTP to the Host

    H: ctp interrupt not requested

    L:CTP request interrupt

    6 RESET RESET for CTP

    General Specification

    ItemStandard Value
    Display Resolutions 1024 × 3(RGB) x 600 Dots
    LCD Type Full View Angle,  Normally black, Transmissive type
    Screen size (inch)

    7.0 inch

    Color configuration RGB - Strip
    Interface RGB Interface
    Other (controlled/driver IC)

    ST5021-G3-1 + ST5651CB-G3-1

    (or Compatible IC)

    ROHS This product conforms the RoHS of PTC



    Absolute Maximum Ratings

    ParameterSymbolConditionMinMaxUnit
    Power Supply for TFT Panel VDD GND=0 -0.3 3.96 V
    Power Supply for Backlight Unit VCC GND=0 -0.3 +20.0 V
    Operating Temperature TOP(Ts) Note 1 -20 +70 °C
    Storage Temperature TST (Ta) Note 2 -30 +80 °C

    Note 1. Ts is the tempeature of panel's surface

    Note 2: Ta is the ambient temperature of samples

    Electronical Characteristics

    ItemSymbolConditionMinTypMaxUnit
    Power Supply for TFT Panel VDD GND=0V 3.0 3.3 3.6 V
    Power Supply for Backlight Unit VCC GND=0V 5 12 12 V
    Input Voltage for TFT Panel VIH - 0.7VDD - VDD V
    VIL - 0 - 0.3VDD V
    Supply Current for TFT Panel IDD IDD@VDD=3.3V - 140 210 mA
    Supply Current for Backlight Unit ICC ICC@VCC=5V - 1.0 1.5 A
    Supply Current for Backlight Unit ICC ICC@VCC=12V - 400 600 mA
    Input Voltage for PWM Signal VPH GND=0V 1.2 - - V
    VPL GND=0V - - 0.4 V
    Dimming Clock Rate fP GND=0V 0.1 - 8 KHz



    Specifiche di prodotto
    Size 7"
    Resolution 1024x600
    Active Area (mm) 154.21x85.92
    Color Full Color
    Display Interface RGB
    Display IC No
    View Angle IPS
    Sunlight Readable High 601~1200cd/m²
    Frame No
    Touch Panel Capacitive
    O. Temperature (°C) -20~70
    Data Connection FPC for ZIF Connector
    Pin Nr. 50
    Pin Pitch 0.5mm
    Touch Panel IC Controller HY4635
