    WH2004A-GLL-JTVE#

    Character LCD 2.9" 20x4, B/L green, VATN, COB, 5V, Interface 6800, 12 O'clock, Font Eng/Jap
    Brand: Winstar
    Cod.: WH2004A-GLL-JTVE#

    Kit accessori

    Prezzi per quantità
    Quantità
    1+
    5+
    10+
    25+
    Prezzo
    €18,50
    €16,60
    €15,60
    €15,20

    Per quantità maggiori di 49pz prego invii la richiesta a [email protected] o chiami il +39 0332 1888005

    Disponibilità: Disponibile
    €18,50 IVA esclusa
    i h

    DESCRIPTION



    The VATN display is featured with wide viewing angle and high contrast ratio, therefore, it’s very suitable for many applications.  Below are the examples for reference.
    • Industrial: Automotive application, Digital meter, UPS
    • Medical: medical device & medical equipment
    • Home appliance: audio, coffee machine, microwave oven
    • Automobile: dashboard, car audio



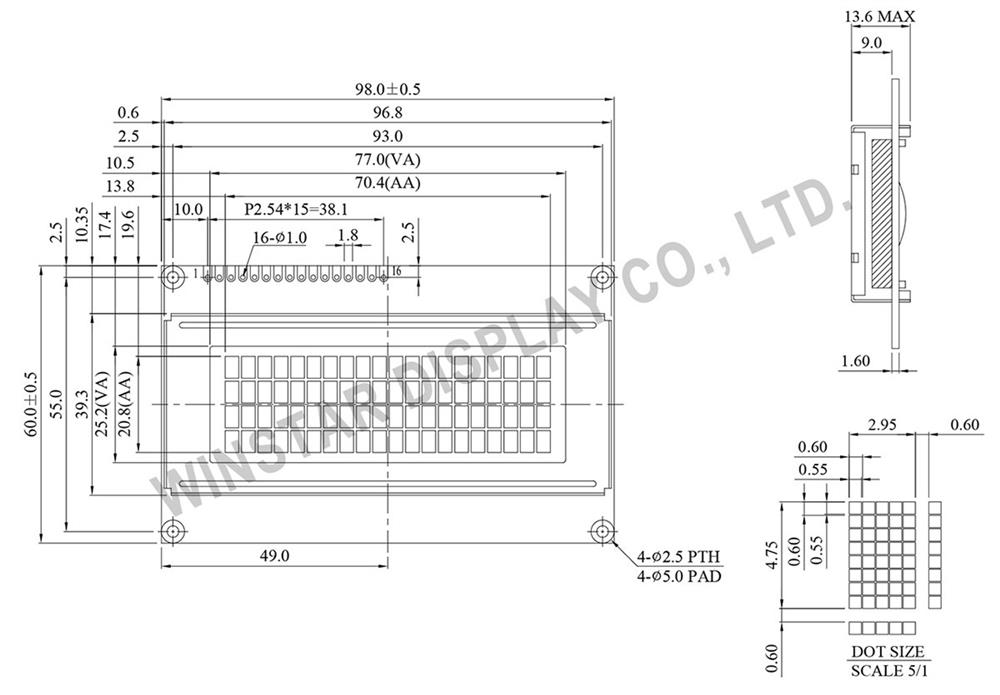

    DRAWING

    20x4 Yellow Backlight VATN LCD Display -  Winstar WH2004A-YLL



    SPECIFICATIONS

    Interface Pin Function

    Pin No.SymbolDescription
    1 VSS Ground
    2 VDD Power supply for logic
    3 VO Operating voltage for LCD
    4 RS H: DATA, L: Instruction code
    5 R/W Read/Write select signal
    6 E Chip enable signal
    7~14 DB0~DB7 Data bus line
    15 Vee Negative Voltage Output
    16 K Power supply for B/L -



    General Specification

    ItemStandard ValueUnit
    Module Dimension 98.0 × 60.0 mm
    Viewing Area 77.0 × 25.2 mm
    Mounting Hole 93.0 × 55.0 mm
    Character Size 2.95 × 4.75 mm



    Absolute Maximum Ratings

    ItemSymbolStandard Value
    typ.
    Unit
    Input Voltage VDD 5.0 V
    Recommended LCD Driving
    Voltage for Normal Temp.
    Version module @25°C
    VDD-VO 6.5 V



    Display Character Address Code

    Display position1234567891011121314151617------20
    DD RAM Address 00 01 02                                 13
    DD RAM Address 40 41 42                                 53

    DD RAM Address 14 15 16                                 27
    DD RAM Address 54 55 56                                 67


    Specifiche di prodotto
    Size 2.9"
    Resolution 20x4
    Active Area (mm) 70.40x20.80
    Dot Size 0.55x0.55
    B/L color, LCD type B/L green, VATN
    Power supply 5V
    Display Interface 6800
    Display IC ST7066
    Constructive Structure COB
    View Angle 12H
    O. Temperature (°C) -20~70
    Data Connection Soldering PAD
    Pin Nr. 16
    Pin Pitch 2.54mm
    Preferred - Not Preferred Preferred
    *
    *
    *
    *
