    TFT 7" 1024x600 with CTP, 1000cd/m², Wide View Angle (IPS), MCU STM32H750 ARM Cortex M7 @480Mhz with 16MB SDRAM compatible with STM's TouchGFX development platform
    Brand: Powertip
    Cod.: HMA102600T013ZHC05

    Kit accessori

    Prezzi per quantità
    Quantità
    1+
    5+
    10+
    Prezzo
    €112,90
    €101,60
    €95,50

    Per quantità maggiori di 24pz prego invii la richiesta a [email protected] o chiami il +39 0332 1888005

    Disponibilità: Il prodotto non può essere aggiunto al carrello. Prego verificare con FC la futura disponibilità
    €112,90 IVA esclusa
    i h

    DESCRIPTION

    POWERTIP's Intelligent MCU TFT modules are a powerful and versatile solution for both developers and users. At ther heart of this module we have STMicroelectronics' MCU STM32H750 compatible with TouchGFX GUI development software. The abundant graphic design combined with Powertip TFT display brings intuitive application under different scenarios. The Mini Board is equipped with customizable I/O ports such as CAN bus, Ethernet port or SD card slot.

    Main features:

    1) 7" Industrial grade TFT-LCD Wide View Angle (IPS) & High Brightness panel with Capacitive Touch

    2) STM32H750 Mini Board with multi I/O ports: UART, SPI, I2C, CAN, Ethernet, USB, MicroSD, GPIO



    1. 7" Industrial Grade TFT

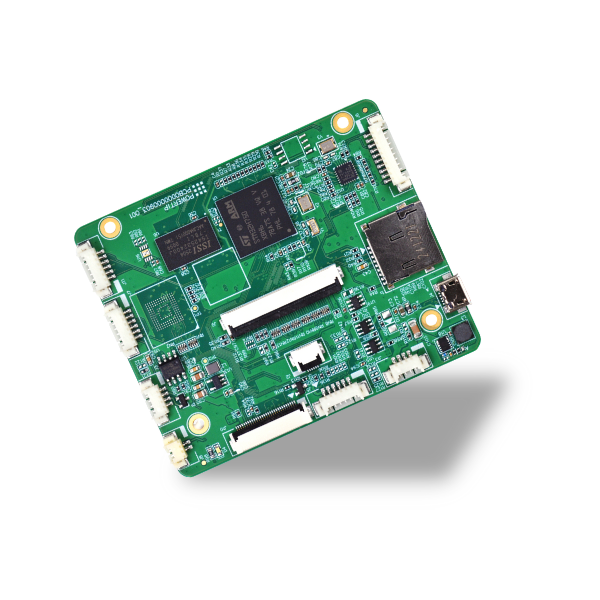

    2. STM32H750 Mini Board

    Type Mini
    Chip ST, STM32H750
    ARM Core Cortex-M7
    Core Count Single-Core
    Memory 16MB SDRAM
    FLASH 32MB QSPI FLASH、8G eMMC (Optional)
    I/O 1 x USB2.0 Device
    1 x UART
    2 x SPI
    2 x I2C
    1 x CAN
    1 x Ethernet



    Contact us at [email protected] to have the Sample Project file to speed up your development!

    Specifiche di prodotto
    Size 7"
    Resolution 1024x600

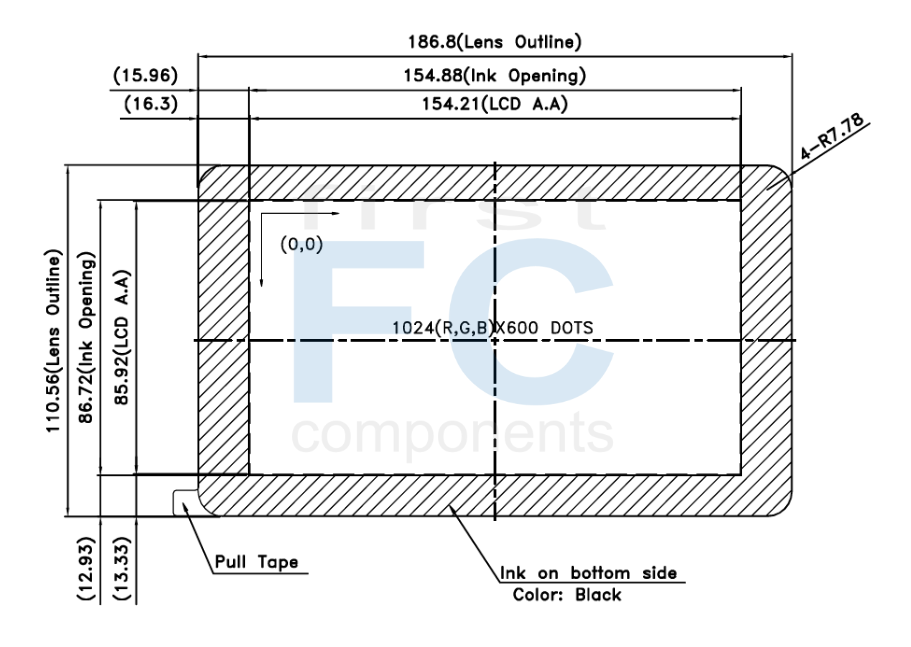

    Viewing Area (mm) 154.88x86.72
    Active Area (mm) 154.21x85.92
    Color Full Color
    Power supply 12V
    Display Interface UART // CAN // SPI // I2C // USB2.0 // MicroSD
    Display IC STM32H750
    View Angle IPS
    Sunlight Readable High 601~1200cd/m²
    Touch Panel Capacitive
    O. Temperature (°C) -20~70
    Preferred - Not Preferred Preferred
