DESCRIPTION

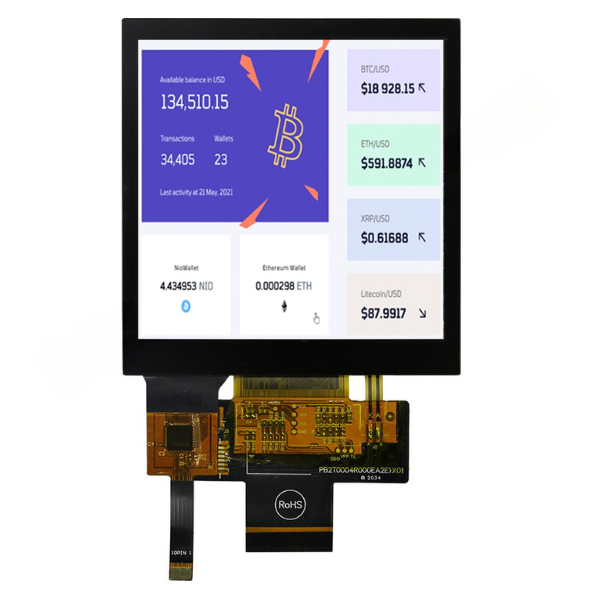

NT040-C001WS is a High Brightness 4 inch Square IPS TFT-LCD display module with projected capacitive touch panel (PCAP); made of resolution 480 x 480 pixels. This module supports 24-bit RGB interface, it featured with IPS panel which is having the advantage of wider viewing angle of Left:80 / Right:80 / Up:80 / Down:80 degree (typical), contrast ratio 800:1 (typical value), high brightness 800 nits (typical value), anti-glare surface panel, aspect Ratio 1:1.
NT040-C001WS Square TFT LCD display module is integrated driver IC ST7701S on module, the interface supply voltage range from 2.5V to 3.6V, typical value 2.8V. NT040-C001WS model can be operated at temperatures from -30℃ to +80℃; its storage temperatures range from -30℃ to +80℃.

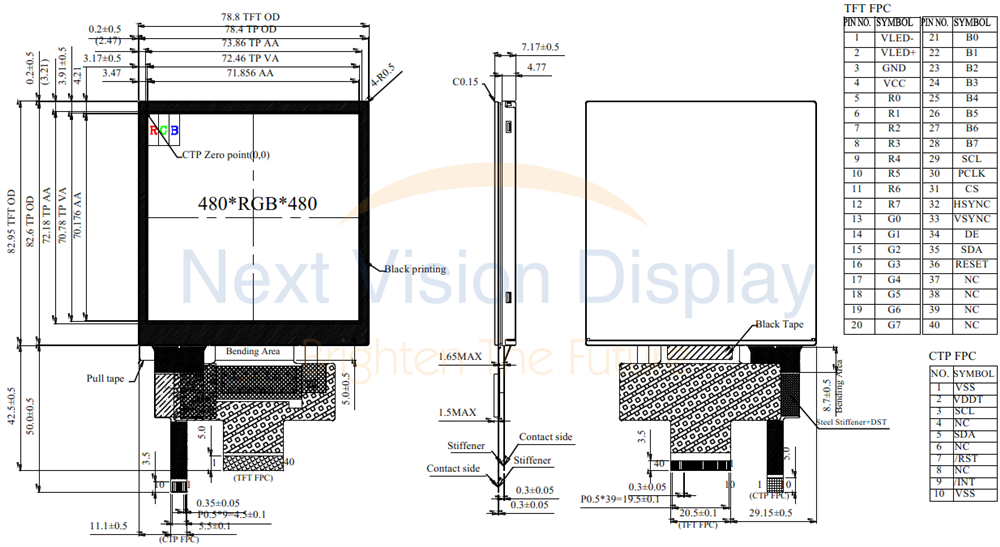

DRAWING

SPECIFICATIONS
Interface
LCM PIN Definition
| Pin | Symbol | Function |
| 1 |
VLED- |
Power for LED backlight cathode |
| 2 |
VLED+ |
Power for LED backlight anode |
| 3 |
GND |
Power ground |
| 4 |
VCC |
Power supply |
| 5 |
R0 |
Data bus |
| 6 |
R1 |
| 7 |
R2 |
| 8 |
R3 |
| 9 |
R4 |
| 10 |
R5 |
| 11 |
R6 |
| 12 |
R7 |
| 13 |
G0 |
Data bus |
| 14 |
G1 |
| 15 |
G2 |
| 16 |
G3 |
| 17 |
G4 |
| 18 |
G5 |
| 19 |
G6 |
| 20 |
G7 |
| 21 |
B0 |
Data bus |
| 22 |
B1 |
| 23 |
B2 |
| 24 |
B3 |
| 25 |
B4 |
| 26 |
B5 |
| 27 |
B6 |
| 28 |
B7 |
| 29 |
SCL |
SCL: Serial clock input for SPI interface. |
| 30 |
PCLK |
Dot clock signal for RGB interface operation |
| 31 |
CS |
- A chip select signal Low: the chip is selected and accessible High: the chip is not selected and not accessible |
| 32 |
HSYNC |
Line synchronizing signal for RGB interface operation |
| 33 |
VSYNC |
Frame synchronizing signal for RGB interface operation |
| 34 |
DE |
Data enable signal for RGB interface operation Low: access enabled High: access inhibited |
| 35 |
SDA |
SDA: Serial data input/output bidirectional pin for SPI Interface. |
| 36 |
RESET |
- The external reset input - Initializes the chip with a low input. Be sure to execute a power-on reset after supplying power. |
| 37-40 |
NC |
No connect |
PCAP PIN Definition
| Pin | Symbol | Function |
| 1 |
VSS |
Ground for analog circuit |
| 2 |
VDDT |
Power Supply : +3.0V |
| 3 |
SCL |
I2C clock input |
| 4 |
NC |
No connect |
| 5 |
SDA |
I2C data input and output |
| 6 |
NC |
No connect |
| 7 |
/RST |
External Reset, Low is active |
| 8 |
NC |
No connect |
| 9 |
/INT |
External interrupt to the host |
| 10 |
VSS |
Ground for analog circuit |
General Specifications
| Item | Dimension | Unit |
| Size |
4.0 |
inch |
| Dot Matrix |
480 × 3(RGB) × 480 |
dots |
| Module dimension |
78.8(H) × 82.95 (W) × 7.17 |
mm |
| Active area |
71.856(H) × 70.176 (V) |
mm |
| Dot pitch |
0.1497(H) × 0.1462(V) |
mm |
| LCD type |
TFT, Normally Black, Transmissive |
| View Direction |
80/80/80/80 |
| Aspect Ratio |
1:1 |
| Interface |
24-bit RGB |
| Driver IC |
ST7701S or Equivalent |
| Backlight Type |
LED, Normally White |
| PCAP IC |
ST1633I or equivalent |
| PCAP Interface |
I2C |
| PCAP FW Version: |
V01 |
| Touch Panel |
Capacitive touch panel (PCAP) |
| Surface |
Anti-Glare |
Absolute Maximum Ratings
| Item | Symbol | Min | Typ | Max | Unit |
| Operating Temperature |
TOP |
-30 |
- |
+80 |
℃ |
| Storage Temperature |
TST |
-30 |
- |
+80 |
℃ |
Electrical Characteristics
Typical Operation Conditions
| Item | Symbol | Values | Unit |
| Min. | Typ. | Max. |
| Interface Supply Voltage |
VCC |
2.5 |
2.8 |
3.6 |
V |
| Current for Driver(White) |
IVCC |
- |
27 |
40.5 |
mA |
| Supply PCAP |
VDDT |
2.8 |
- |
3.3 |
V |
| ICTP(mA) |
- |
12.4 |
18.6 |
mA |
Specifiche di prodotto
|
Size
|
4" |
|
Resolution
|
480x480 |
|
Active Area (mm)
|
71.85x70.17 |
|
Color
|
Full Color |
|
Display Interface
|
RGB |
|
Display IC
|
No |
|
View Angle
|
IPS |
|
Sunlight Readable
|
High 601~1200cd/m² |
|
Frame
|
No |
|
Touch Panel
|
Capacitive |
|
O. Temperature (°C)
|
-30~80 |
|
Data Connection
|
FPC for ZIF Connector |
|
Pin Nr.
|
40 |
|
Pin Pitch
|
0.5mm |
|
Touch Panel IC Controller
|
ST1633I |
|
Preferred - Not Preferred
|
Preferred |
