NS050-C001ME

Capacitive (GG) Touch panel 5", O.D. 109.00x65.80mm, I2C interface (GT911 IC), Glass-Glass structure, FPC per ZIF Connector

Description

NS050-C001ME is a standard 5 inch capacitive touch screen constructed from ITO on 0.55 mm glass substrate, providing excellent optical properties. This touch sensor is typically optically bonded to a 1.10mm glass cover with surface hardness 6H with light transmission of over 80%. The flex cable is assembled with GT911 touch IC that can support 5 points touch. The interface is an I2C 10 Pin connection. This capacitive touch screen is compatible with a 5 inch TFT LCD with 480x272 or 800x480 resolution.



General Specification

Item

Specification

Touch Screen Size

5.0"

Touch controller

Goodix GT911

Touch Interface

I2C

Pin Number

10pin

Structure

Glass+Glass

Glass thickness

1.10 mm

Sensor thickness

0.55 mm

Outline Dimension

120.70x76.30x1.85 mm

Valid Area

109.00x65.80 mm

Working Voltage

2.8-3.3V

Custom Touch

Available

Working Temperature

-10℃~ 60℃

Storage Temperature

-20℃~ 70℃

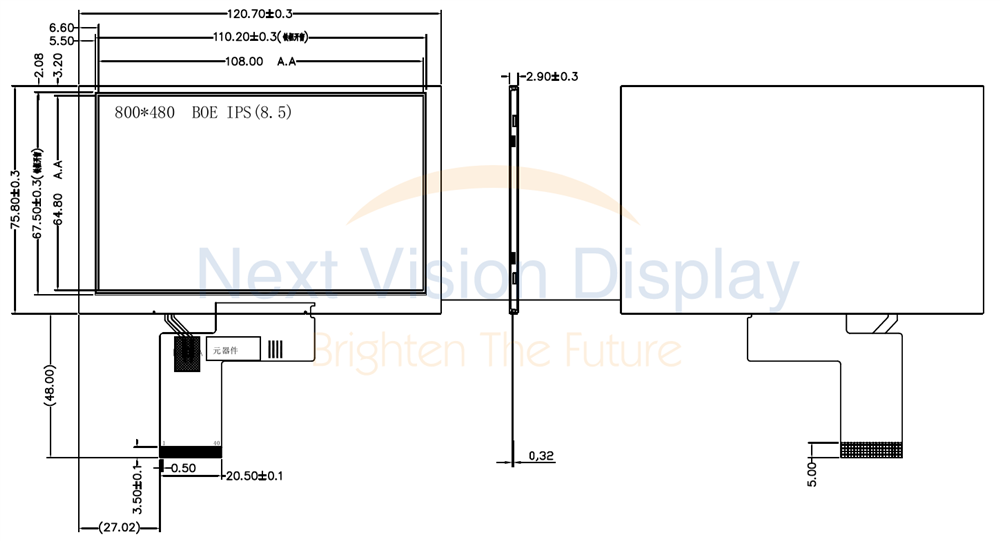

DRAWING



Interface Pin Function

PIN NO.

Function

1

VSS

2

VDD

3

SCL

4

VSS

5

SDA

6

VSS

7

RST

8

NC

9

INT

10

VSS

SKU: NS050-C001ME
Disponibile: No
Kit Accessori
Prezzi per quantità
Quantità
1+
5+
10+
Prezzo
€15,90
€14,70
€12,40

Per quantita’ maggiori di 25pz prego invii la richiesta a [email protected] o chiami il +39 0332 1888005

€15,90 IVA esclusa

Description

NS050-C001ME is a standard 5 inch capacitive touch screen constructed from ITO on 0.55 mm glass substrate, providing excellent optical properties. This touch sensor is typically optically bonded to a 1.10mm glass cover with surface hardness 6H with light transmission of over 80%. The flex cable is assembled with GT911 touch IC that can support 5 points touch. The interface is an I2C 10 Pin connection. This capacitive touch screen is compatible with a 5 inch TFT LCD with 480x272 or 800x480 resolution.



General Specification

Item

Specification

Touch Screen Size

5.0"

Touch controller

Goodix GT911

Touch Interface

I2C

Pin Number

10pin

Structure

Glass+Glass

Glass thickness

1.10 mm

Sensor thickness

0.55 mm

Outline Dimension

120.70x76.30x1.85 mm

Valid Area

109.00x65.80 mm

Working Voltage

2.8-3.3V

Custom Touch

Available

Working Temperature

-10℃~ 60℃

Storage Temperature

-20℃~ 70℃





DRAWING



Interface Pin Function

PIN NO.

Function

1

VSS

2

VDD

3

SCL

4

VSS

5

SDA

6

VSS

7

RST

8

NC

9

INT

10

VSS

Specifiche di prodotto
Brand Next Vision Display
Size 5"
Area Attiva (mm) 109.00x65.80
Interfaccia Display I2C
Struttura Costruttiva GG
Connessione Display FPC for ZIF Connector
Nr. Pin 10
Passo Pin 0.5mm
IC Controller Touch Panel GT911
Preferred - Not Preferred Preferred
Download
Specifiche di prodotto
Brand Next Vision Display
Size 5"
Area Attiva (mm) 109.00x65.80
Interfaccia Display I2C
Struttura Costruttiva GG
Connessione Display FPC for ZIF Connector
Nr. Pin 10
Passo Pin 0.5mm
IC Controller Touch Panel GT911
Preferred - Not Preferred Preferred
