NT057-R003JD

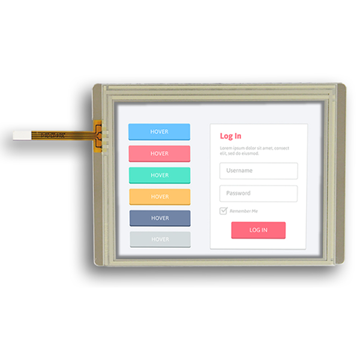

TFT 5.7" 320x240 LCD Panel, Interface RGB, 360cd/m², Resistive touch panel (Replacement Evervision P/N VGG322403-7UFLWF)

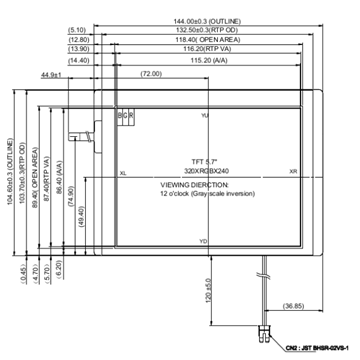

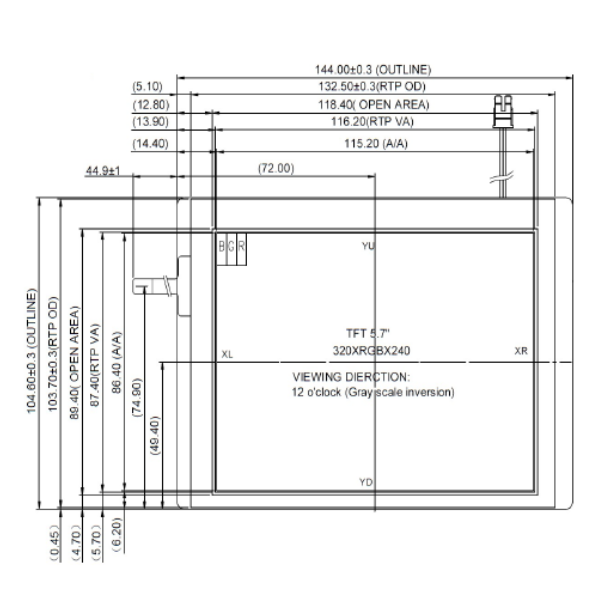

DRAWING

SPECIFICATIONS

General Specifications

Item	Standard Values	Unit
LCD Type	5.7" TFT
Dot arrangement	320 X R.G.B. X 240	dots
Color filter array	RGB vertical stripe
Display mode	Normally white
Gray Scale Inversion Direction	6 O'clock
Eyes Viewing Direction	12 O'clock
Module size	144.0(W) X 104.6(H) x 14.5(T)	mm
Active area	115.2(W) x 86.4(H)	mm
Interface	RGB 18 bit
Operating temperature	-20 ~ + 70	°C
Storage temperature	-30 ~ + 80	°C
Wight	TBD	g

Electrical Characteristics

Absolute Maximum Ratings

Item	Symbol	Min.	Max.	Unit
Supply Voltage	VCC	-0.3	4.3	V

Interface

Input /Output Pin Assignment

Pin	Pin Name	Description
1	VSS	Ground
2	CLK	Clock input.
3	IHS	Horizontal sync input. Negative polarity.
4	IVS	Vertical sync input. Negative polarity.
5	VSS	Ground
6	R0	Red Data input (LSB).
7	R1	Red Data input
8	R2	Red Data input
9	R3	Red Data input
10	R4	Red Data input
11	R5	Red Data input (MSB).
12	VSS	Ground
13	G0	Green Data input (LSB).
14	G1	Green Data input
15	G2	Green Data input
16	G3	Green Data input
17	G4	Green Data input
18	G5	Green Data input (MSB).
19	VSS	Ground
20	B0	Blue Data input (LSB).
21	B1	Blue Data input
22	B2	Blue Data input
23	B3	Blue Data input
24	B4	Blue Data input
25	B5	Blue Data input (MSB).
26	VSS	Ground
27	DEN	Data Enable signal.
28	VCC	Power supply: + 3.3V
29	VCC	Power supply: + 3.3V
30	R/L	Left or Right Display Control.
31	UD	Up/Down Display Control.
32	NC	No connection
33	VSS	Ground

SKU: NT057-R003JD

Brand: Next Vision Display

Disponibile: Si

Si tratta dela prima recensione per questo prodotto

Kit Accessori

FFC Cable

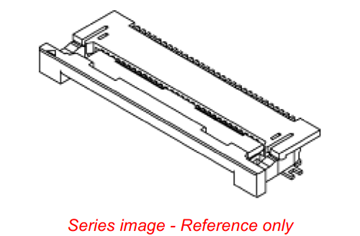

Display Connector
Touch-Panel Connector

Prezzi per quantità

Quantità

10+

Prezzo

€123,20

€112,90

€108,40

Per quantita’ maggiori di 25pz prego invii la richiesta a [email protected] o chiami il +39 0332 1888005

€123,20 IVA esclusa

Overview
Specifiche
Download
Contattaci

DRAWING

SPECIFICATIONS

General Specifications

Item	Standard Values	Unit
LCD Type	5.7" TFT
Dot arrangement	320 X R.G.B. X 240	dots
Color filter array	RGB vertical stripe
Display mode	Normally white
Gray Scale Inversion Direction	6 O'clock
Eyes Viewing Direction	12 O'clock
Module size	144.0(W) X 104.6(H) x 14.5(T)	mm
Active area	115.2(W) x 86.4(H)	mm
Interface	RGB 18 bit
Operating temperature	-20 ~ + 70	°C
Storage temperature	-30 ~ + 80	°C
Wight	TBD	g

Electrical Characteristics

Absolute Maximum Ratings

Item	Symbol	Min.	Max.	Unit
Supply Voltage	VCC	-0.3	4.3	V

Interface

Input /Output Pin Assignment

Pin	Pin Name	Description
1	VSS	Ground
2	CLK	Clock input.
3	IHS	Horizontal sync input. Negative polarity.
4	IVS	Vertical sync input. Negative polarity.
5	VSS	Ground
6	R0	Red Data input (LSB).
7	R1	Red Data input
8	R2	Red Data input
9	R3	Red Data input
10	R4	Red Data input
11	R5	Red Data input (MSB).
12	VSS	Ground
13	G0	Green Data input (LSB).
14	G1	Green Data input
15	G2	Green Data input
16	G3	Green Data input
17	G4	Green Data input
18	G5	Green Data input (MSB).
19	VSS	Ground
20	B0	Blue Data input (LSB).
21	B1	Blue Data input
22	B2	Blue Data input
23	B3	Blue Data input
24	B4	Blue Data input
25	B5	Blue Data input (MSB).
26	VSS	Ground
27	DEN	Data Enable signal.
28	VCC	Power supply: + 3.3V
29	VCC	Power supply: + 3.3V
30	R/L	Left or Right Display Control.
31	UD	Up/Down Display Control.
32	NC	No connection
33	VSS	Ground

Specifiche di prodotto

Brand	Next Vision Display
Size	5.7"
Risoluzione	320x240
Area Attiva (mm)	115.20x86.40
Colore	Full Color
Interfaccia Display	RGB
Display IC	No
Angolo Visione	TN
Frame	No
Touch Panel	Resistive
Temperatura O. (°C)	-20~70
Connessione Display	ZIF Connector
Nr. Pin	33
Passo Pin	0.5mm
Preferred - Not Preferred	Preferred
