NT050-C001ME

TFT 5" 800x480 LCD Panel, Interface RGB, 400cd/m², Wide view angle (IPS), Capacitive touch panel I2C interface (GG, GT911 IC)

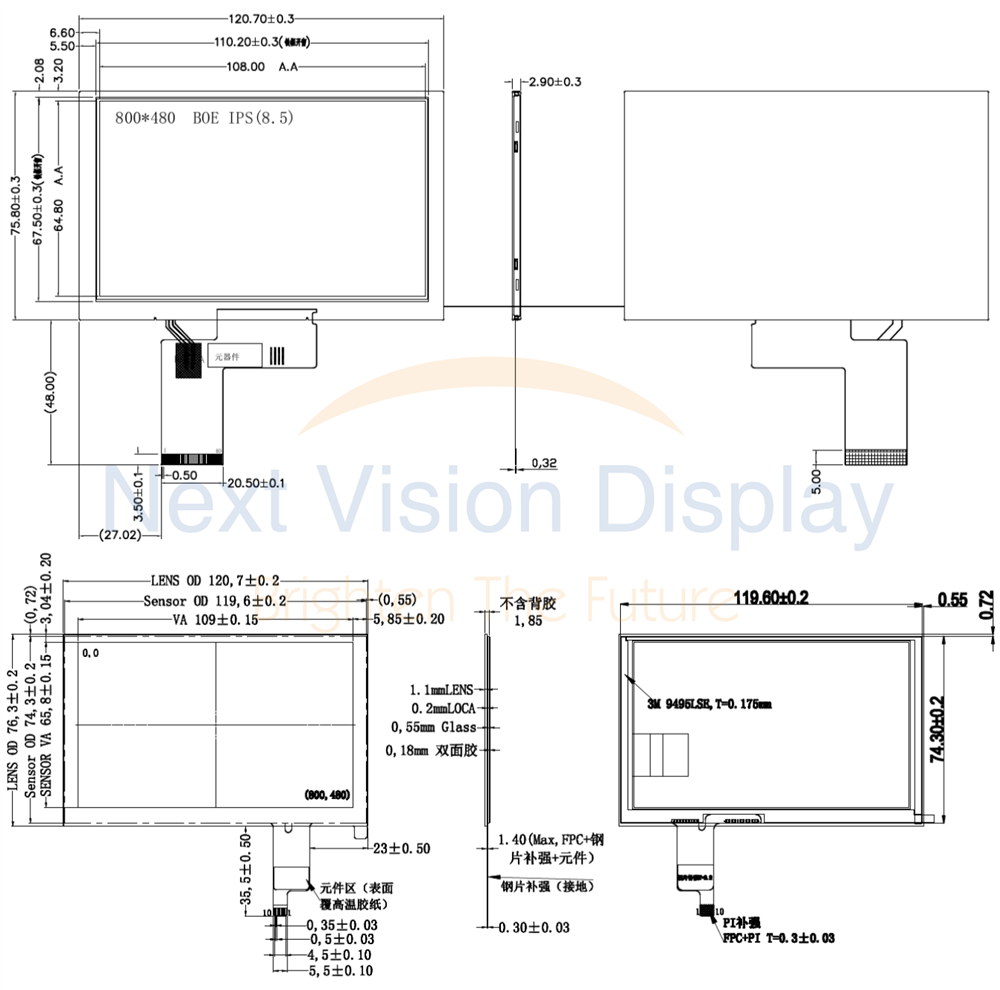

DRAWING

SPECIFICATIONS

Interface Pin Connections

HDMI interface

Pin	Symbol	Description
1	LED_K	Backlight LED Ground
2	LED_A	Backlight LED Power
3	GND	GND
4	VDD	Power supply
5~12	R0-R7	Red data bus
13~20	G0-G7	Green data bus
21~28	B0-B7	Blue data bus
29	GND	GND
30	PCLK	Data clock
31	DISP	Standby mode select pin
32	HSYNC	Line SYNC signal
33	VSYNC	Frame SYNC signal
34	DE	Data Enable Input
35	NC	NC
36	GND	GND
37	X1	Touch Panel Control Pin
38	Y1	Touch Panel Control Pin
39	X2	Touch Panel Control Pin
40	Y2	Touch Panel Control Pin

Mechanical Data

Item	Contents	Unit	Note
LCD Type	Normally Black, Transmissive	-
Display Color	16.7M		1
Viewing Direction	ALL	O'Clock
Operating Temperature	-20~70	°C
Storage Temperature	-30~80	°C
Module size	120.70(W)x75.90(H)x3.05(T)	mm	2
Active Area (WxH)	108.00(W)x64.80(H)	mm
Number of Dots	800xRGBx480	dots
Backlight	18-LEDs(white)	pcs
Data Transfer	RGB interface	-

Note 1: Color tone is slightly changed by temperature and driving voltage.

Note 2: Without FPC and Solder.

Absolute Maximum Ratings

Item	Symbol	Min	Max	Unit	Note
Power Supply Voltage	VDD	-0.3	3.6	V	1,2
Input Voltage	V_In	-0.3	VDD+0.5	V
Current of LED	ILED	0	20	mA

Notes:

If the module is above these absolute maximum ratings, it may become permanently damaged. Using the module within the following electrical characteristics conditions are also exceeded, the module will malfunction and cause poor reliability.
VDD>V_SS must be maintained.
Please be sure users are grounded weh handing LCD Module.

Electrical Characteristics

Parameter		Symbol	Condition	Min	Typ	Max	Unit	Note
Power supply		VDD	Ta=25°C	2.8	3.3	3.6	V
Input voltage	'H'	V_IH	VDD=3.3V	0.7VDD	-	VDD	V
Input voltage	'L'	V_IL	VDD=3.3V	0	-	0.3VDD	V
Current Consumption		I_CC1	Normal Mode	-	-	-	mA	2
Current Consumption		I_CC2	Sleep Mode	-	0.03	0.09	mA	2

Notes:

When an optimum contrast is obtained in transmissive mode.
Tested in 1X1 chessboard pattern.

SKU: NT050-C001ME

Brand: Next Vision Display

Disponibile: Si

Si tratta dela prima recensione per questo prodotto

Kit Accessori

Display Connector
Touch-Panel Connector

Prezzi per quantità

Quantità

10+

Prezzo

€39,00

€33,70

€30,30

Per quantita’ maggiori di 25pz prego invii la richiesta a [email protected] o chiami il +39 0332 1888005

€39,00 IVA esclusa
