NG12864BN004WS

Graphic LCD 2.4" 128x64, B/L white, FSTN white pos, Transflective, COB, 5V, Interface 6800, 6 O'clock, VNEG

DESCRIPTION

NG12864BN004WS is a mono 128x64 graphic LCD display, diagonal size 2.4 inch. NG12864BN004WS model is built in with NT7108 controller or equivalent IC; it supports 6800 8-bit parallel interface. This NG12864BN004WS 128x64 LCD module is 5V power supply. This model graphic LCD display can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃.

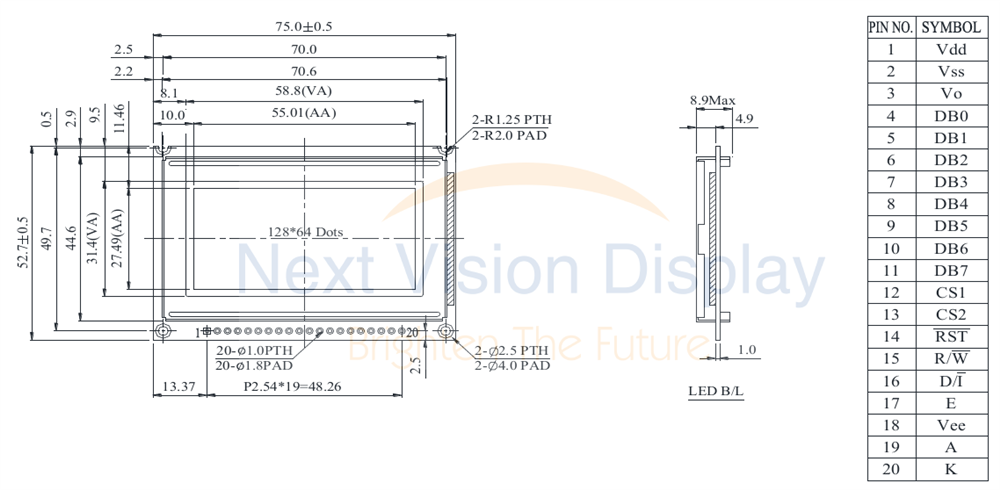

DRAWING

SPECIFICATIONS

Interface Pin Function

Pin No.	Symbol	Level	Description
1	VDD	5.0V	Supply voltage for logic
2	VSS	0V	Ground
3	Vo	(Variable)	Contrast Adjustment
4	DB0	H/L	Data bus line
5	DB1	H/L	Data bus line
6	DB2	H/L	Data bus line
7	DB3	H/L	Data bus line
8	DB4	H/L	Data bus line
9	DB5	H/L	Data bus line
10	DB6	H/L	Data bus line
11	DB7	H/L	Data bus line
12	CS1	L	Select Column 1~ Column 64
13	CS2	L	Select Column 65~ Column 128
14	/RST	L	Reset signal
15	R/W	H/L	H: Read (MPU←Module) , L: Write (MPU→Module)
16	D/I	H/L	H: Data , L : Instruction
17	E	H	Enable signal
18	NC	－	No connection
19	A	－	Power Supply for LED backlight ( + )
20	K	－	Power Supply for LED backlight ( - )

Mechanical Data

Item	Dimension	Unit
Number of dots	128 x 64	－
Module dimension	75.0 x 52.7 x 8.9(Max)	mm
View area	58.8 x 31.4	mm
Active area	55.01 x 27.49	mm
Dot size	0.40 x 0.40	mm
Dot pitch	0.43 x 0.43	mm
Duty	1/64
Backlight Type	LED
IC	NT7107,NT7108
Interface	6800

Absolute Maximum Ratings

Item	Symbol	Min	Typ	Max	Unit
Operating Temperature	TOP	-20	－	+70	℃
Storage Temperature	TST	-30	－	+80	℃
Supply voltage for Logic	VDD-VSS	-0.3	－	7.0	V
Driver Supply Voltage	VLCD	VEE-0.3	－	VDD+0.3	V

Electrical Characteristics

Item	Symbol	Condition	Min	Typ	Max	Unit
Supply Voltage For Logic	VDD-VSS	－	4.5	5.0	5.5	V
Supply Voltage For LCD	VDD-V0	Ta=-20℃ Ta=25℃ Ta=70℃	－ 7.8 7.6	－ 8.0 －	9.6 8.2 －	V V V
Input High Volt.	VIH	－	0.7VDD	－	VDD	V
Input Low Volt.	VIL	－	0	－	0.8	V
Output High Volt.	VOH	－	2.4	－	－	V
Output Low Volt.	VOL	－	－	－	0.4	V
Supply Current	IDD	VDD=5.0V	3.0	4.0	5.0	mA

SKU: NG12864BN004WS

Brand: Next Vision Display

Disponibile: Si

Si tratta dela prima recensione per questo prodotto

Kit Accessori

Display Connector

Prezzi per quantità

Quantità

10+

25+

Prezzo

€15,50

€11,40

€10,90

€10,60

Per quantita’ maggiori di 25pz prego invii la richiesta a [email protected] o chiami il +39 0332 1888005

€15,50 IVA esclusa

Overview
Specifiche
Download
Contattaci

DESCRIPTION

DRAWING

SPECIFICATIONS

Interface Pin Function

Pin No.	Symbol	Level	Description
1	VDD	5.0V	Supply voltage for logic
2	VSS	0V	Ground
3	Vo	(Variable)	Contrast Adjustment
4	DB0	H/L	Data bus line
5	DB1	H/L	Data bus line
6	DB2	H/L	Data bus line
7	DB3	H/L	Data bus line
8	DB4	H/L	Data bus line
9	DB5	H/L	Data bus line
10	DB6	H/L	Data bus line
11	DB7	H/L	Data bus line
12	CS1	L	Select Column 1~ Column 64
13	CS2	L	Select Column 65~ Column 128
14	/RST	L	Reset signal
15	R/W	H/L	H: Read (MPU←Module) , L: Write (MPU→Module)
16	D/I	H/L	H: Data , L : Instruction
17	E	H	Enable signal
18	NC	－	No connection
19	A	－	Power Supply for LED backlight ( + )
20	K	－	Power Supply for LED backlight ( - )

Mechanical Data

Item	Dimension	Unit
Number of dots	128 x 64	－
Module dimension	75.0 x 52.7 x 8.9(Max)	mm
View area	58.8 x 31.4	mm
Active area	55.01 x 27.49	mm
Dot size	0.40 x 0.40	mm
Dot pitch	0.43 x 0.43	mm
Duty	1/64
Backlight Type	LED
IC	NT7107,NT7108
Interface	6800

Absolute Maximum Ratings

Item	Symbol	Min	Typ	Max	Unit
Operating Temperature	TOP	-20	－	+70	℃
Storage Temperature	TST	-30	－	+80	℃
Supply voltage for Logic	VDD-VSS	-0.3	－	7.0	V
Driver Supply Voltage	VLCD	VEE-0.3	－	VDD+0.3	V

Electrical Characteristics

Item	Symbol	Condition	Min	Typ	Max	Unit
Supply Voltage For Logic	VDD-VSS	－	4.5	5.0	5.5	V
Supply Voltage For LCD	VDD-V0	Ta=-20℃ Ta=25℃ Ta=70℃	－ 7.8 7.6	－ 8.0 －	9.6 8.2 －	V V V
Input High Volt.	VIH	－	0.7VDD	－	VDD	V
Input Low Volt.	VIL	－	0	－	0.8	V
Output High Volt.	VOH	－	2.4	－	－	V
Output Low Volt.	VOL	－	－	－	0.4	V
Supply Current	IDD	VDD=5.0V	3.0	4.0	5.0	mA

Specifiche di prodotto

Brand	Next Vision Display
Size	2.4"
Risoluzione	128x64
Area Attiva (mm)	55.01x27.49
Dot Size	0.40x0.40
Colore B/L, Tipo LCD	B/L white, FSTN white pos
Alimentazione	5V
Interfaccia Display	6800
Display IC	NT7107T+NT7108T
Struttura Costruttiva	COB
Angolo Visione	6H
Frame	Yes
Touch Panel	No touch
Temperatura O. (°C)	-20~70
Connessione Display	Soldering PAD
Nr. Pin	20
Passo Pin	2.54mm
Preferred - Not Preferred	Preferred
