PH720128T005ZBC

TFT 7" 720x1280 Portrait LCD Panel, Interface MIPI IC ILI9881C, 500nits, Wide View Angle (IPS), Capacitive touch panel I2C interface (GG, IC GT911)

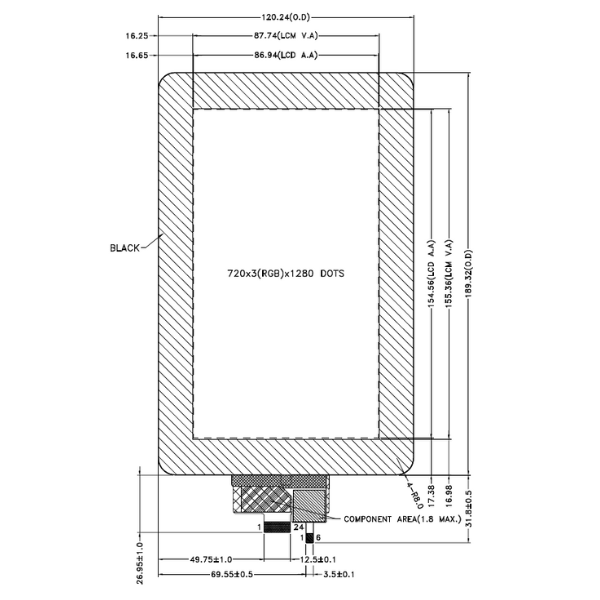

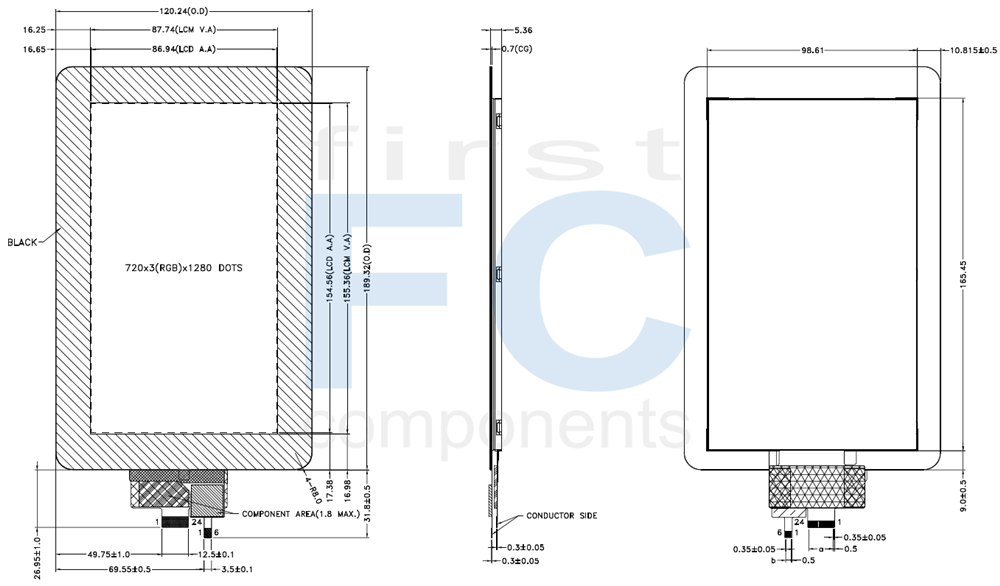

DRAWING

SPECIFICATIONS

Interface Pin Description

Pin #	Name	Description
1	NC	No connection
2	K	Power for LED backlight cathode input
3	A	Power for LED backlight anode input
4	NC	No connection
5	NC	No connection
6	GND	Ground
7	NC	No connection
8	NC	No connection
9	VDD	Power supply for internal logic regulator
10	VCI	Power supply for analog circuit
11	GND	Ground
12	LCD_RESX	The external reset input initializes the chip with a low input. Be sure to execute a power-on reset after supplying power
13	LCD_TE	Tearing effect output pin
14	GND	Ground
15	CLK_P	MIPI DSI differential clock pair
16	CLK_N	MIPI DSI differential clock pair
17	GND	Ground
18	D1_P	MIPI DSI differential data pair (Data lane 1)
19	D1_N	MIPI DSI differential data pair (data lane 1)
20	GND	Ground
21	D0_P	MIPI DSI differential data pair (Data lane 0)
22	D0_N	MIPI DSI differential data pair (Data lane 0)
23	GND	Ground
24	NC	No connection

Interface for Capacitive Touch Panel (CTP)

Pin #	Name	Description
1	RST	RESET
2	SCL	I2C Data
3	SDA	I2C Data
4	INT	The interrupt from the CTP to the Host
5	TPVDD	Power
6	GND	Ground

General Specification

Item	Dimension	Unit
Display Type	720 × (RGB) x 1280 Dots	－
Module dimension	120.24(W) × 189.32(L) × 5.36(H)	mm
Active Area	86.94(W) × 154.56(L)	mm
LCD Type	Full Viewing Angle, Normally Black, Transmissive type
Screen size (inch)	7.0 inch
Backlight Type	LED B/L
Weight	170g
Control IC	ILI9881C (TFT Unit)
Interface	MIPI Interface (TFT Unit)
Touch Type	Projective Capacitive Touch Panel
CTP IC	GT911
CTP Output Interface	I2C
ROHS	This product conforms the RoHS of PTC

Absolute Maximum Ratings

Parameter	Symbol	Condition	Min	Max	Unit
Supply Voltage	VDD	GND=0	-0.3	+3.8	V
Supply Voltage	VCI	GND=0	-0.3	+7.0	V
Operating Temperature	T_OP	-	-20	+70	°C
Storage Temperature	T_ST	-	-30	+80	°C

Electronical Characteristics

Item	Symbol	Min	Typ	Max	Unit
Supply Voltage	VDD	3.0	3.3	3.6	V
Supply Voltage	VCI	3.0	3.3	3.6
Input signal Voltage	V_IH	0.7*VDD	-	VDD
	V_IL	-0.3	－	0.3*VDD
	V_OH	0.8*VDD	-	VDD
	V_OL	0	-	0.2*VDD
Supply Current	I_VDD	-	20mA	35mA
Supply Current	I_VCI	-	25mA	35mA

GND=0V, Ta=25°C

SKU: PH720128T005ZBC

Brand: Powertip

Disponibile: Si

Si tratta dela prima recensione per questo prodotto

Kit Accessori

Display Connector
Touch-Panel Connector

Prezzi per quantità

Quantità

10+

Prezzo

€53,40

€51,60

€45,20

Per quantita’ maggiori di 25pz prego invii la richiesta a [email protected] o chiami il +39 0332 1888005

€53,40 IVA esclusa

Overview
Specifiche
Download
Contattaci

DRAWING

SPECIFICATIONS

Interface Pin Description

Pin #	Name	Description
1	NC	No connection
2	K	Power for LED backlight cathode input
3	A	Power for LED backlight anode input
4	NC	No connection
5	NC	No connection
6	GND	Ground
7	NC	No connection
8	NC	No connection
9	VDD	Power supply for internal logic regulator
10	VCI	Power supply for analog circuit
11	GND	Ground
12	LCD_RESX	The external reset input initializes the chip with a low input. Be sure to execute a power-on reset after supplying power
13	LCD_TE	Tearing effect output pin
14	GND	Ground
15	CLK_P	MIPI DSI differential clock pair
16	CLK_N	MIPI DSI differential clock pair
17	GND	Ground
18	D1_P	MIPI DSI differential data pair (Data lane 1)
19	D1_N	MIPI DSI differential data pair (data lane 1)
20	GND	Ground
21	D0_P	MIPI DSI differential data pair (Data lane 0)
22	D0_N	MIPI DSI differential data pair (Data lane 0)
23	GND	Ground
24	NC	No connection

Interface for Capacitive Touch Panel (CTP)

Pin #	Name	Description
1	RST	RESET
2	SCL	I2C Data
3	SDA	I2C Data
4	INT	The interrupt from the CTP to the Host
5	TPVDD	Power
6	GND	Ground

General Specification

Item	Dimension	Unit
Display Type	720 × (RGB) x 1280 Dots	－
Module dimension	120.24(W) × 189.32(L) × 5.36(H)	mm
Active Area	86.94(W) × 154.56(L)	mm
LCD Type	Full Viewing Angle, Normally Black, Transmissive type
Screen size (inch)	7.0 inch
Backlight Type	LED B/L
Weight	170g
Control IC	ILI9881C (TFT Unit)
Interface	MIPI Interface (TFT Unit)
Touch Type	Projective Capacitive Touch Panel
CTP IC	GT911
CTP Output Interface	I2C
ROHS	This product conforms the RoHS of PTC

Absolute Maximum Ratings

Parameter	Symbol	Condition	Min	Max	Unit
Supply Voltage	VDD	GND=0	-0.3	+3.8	V
Supply Voltage	VCI	GND=0	-0.3	+7.0	V
Operating Temperature	T_OP	-	-20	+70	°C
Storage Temperature	T_ST	-	-30	+80	°C

Electronical Characteristics

Item	Symbol	Min	Typ	Max	Unit
Supply Voltage	VDD	3.0	3.3	3.6	V
Supply Voltage	VCI	3.0	3.3	3.6
Input signal Voltage	V_IH	0.7*VDD	-	VDD
	V_IL	-0.3	－	0.3*VDD
	V_OH	0.8*VDD	-	VDD
	V_OL	0	-	0.2*VDD
Supply Current	I_VDD	-	20mA	35mA
Supply Current	I_VCI	-	25mA	35mA

GND=0V, Ta=25°C

Specifiche di prodotto

Brand	Powertip
Size	7"
Risoluzione	720x1280
Area Attiva (mm)	86.94x154.56
Colore	Full Color
Interfaccia Display	MIPI
Display IC	ILI9881C
Angolo Visione	IPS
Frame	No
Touch Panel	Capacitive
Temperatura O. (°C)	-20~70
Connessione Display	FPC for ZIF Connector
Nr. Pin	24
Passo Pin	0.5mm
IC Controller Touch Panel	GT911
Preferred - Not Preferred	Preferred
