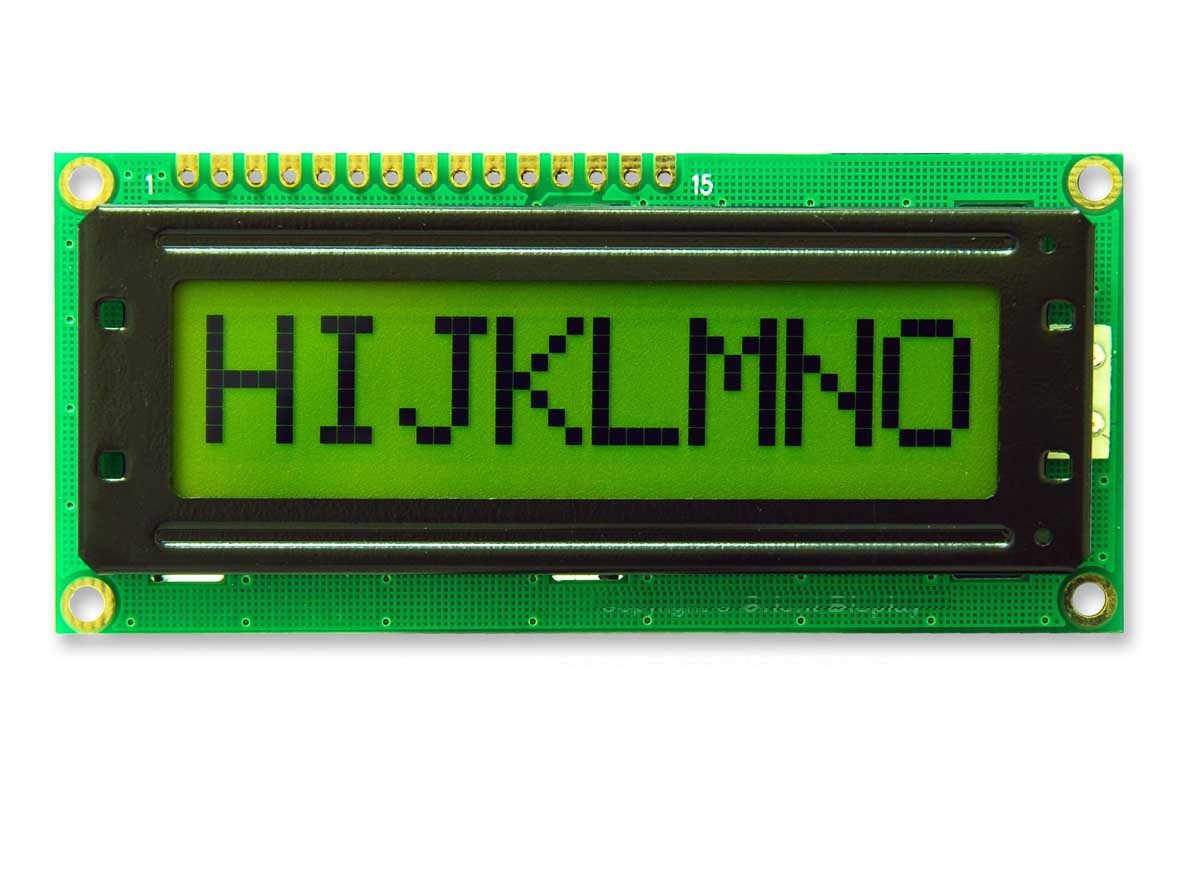

    ABC008001C00-YHY-R

    Character LCD 2.6" 8x1, B/L yellow/green, STN yellow/green pos, Transflective, COB, 5V, Interface 6800, Font Eng/Jap, 6 O'clock (O.D. 80x36mm)
    Cod.: ABC008001C00-YHY-R

    Kit accessori

    Prezzi per quantità
    Quantità
    1+
    5+
    10+
    Prezzo
    €20,90
    €18,80
    €17,70

    Per quantità maggiori di 24pz prego invii la richiesta a [email protected] o chiami il +39 0332 1888005

    Disponibilità: Disponibile
    €20,90 IVA esclusa
    i h
    Specifiche di prodotto
    Size 2.3"
    Resolution 8x1
    Active Area (mm) 56.50x10.75
    Dot Size 1.25x1.30
    B/L color, LCD type B/L yellow/green, STN yellow/green pos
    Power supply 5V
    Display Interface 6800
    Display IC SPLC780DI
    Constructive Structure COB
    View Angle 6H
    O. Temperature (°C) -20~70
    Data Connection Soldering PAD
    Pin Nr. 15
    Pin Pitch 2.54mm
    Preferred - Not Preferred Preferred
    *
    *
    *
    *
