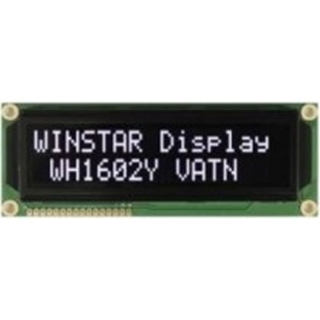

WH1602Y-SLL-JWV#

Character LCD 3.8" 16x2, B/L white, VATN, COB, 5V, Interface 6800, 12 O'clock, Font Eng/Jap

MOQ

After sample PO, MP MOQ 1K

DESCRIPTION

The VATN display is featured with wide viewing angle and high contrast ratio, therefore, it’s very suitable for many applications. Below are the examples for reference.

Industrial: Automotive application, Digital meter, UPS
Medical: medical device & medical equipment
Home appliance: audio, coffee machine, microwave oven
Automobile: dashboard, car audio

DRAWING

SPECIFICATIONS

Interface Pin Function

Pin No.	Symbol	Description
1	V_SS	Ground
2	V_DD	Power supply for logic
3	VO	Operating voltage for LCD
4	RS	H: DATA, L: Instruction code
5	R/W	Read/Write select signal
6	E	Chip enable signal
7~14	DB0~DB7	Data bus line
15	V_ee	Negative Voltage Output
16	K	Power supply for B/L -

General Specification

Item	Standard Value	Unit
Module Dimension	122.0× 44.0	mm
Viewing Area	99.0 × 24.0	mm
Character Size	4.8 × 9.22	mm

Absolute Maximum Ratings

Item	Symbol	Standard Value typ.	Unit
Input Voltage	VDD	5.0	V

SKU: WH1602Y-SLL-JWV#

Brand: Winstar

Disponibile: No

Si tratta dela prima recensione per questo prodotto

Kit Accessori

Display Connector

Prezzi per quantità

Quantità

Prezzo

€18,90

€13,90

Per quantita’ maggiori di 25pz prego invii la richiesta a [email protected] o chiami il +39 0332 1888005

€18,90 IVA esclusa

Overview
Specifiche
Download
Contattaci

MOQ

After sample PO, MP MOQ 1K

DESCRIPTION

The VATN display is featured with wide viewing angle and high contrast ratio, therefore, it’s very suitable for many applications. Below are the examples for reference.

Industrial: Automotive application, Digital meter, UPS
Medical: medical device & medical equipment
Home appliance: audio, coffee machine, microwave oven
Automobile: dashboard, car audio

DRAWING

SPECIFICATIONS

Interface Pin Function

Pin No.	Symbol	Description
1	V_SS	Ground
2	V_DD	Power supply for logic
3	VO	Operating voltage for LCD
4	RS	H: DATA, L: Instruction code
5	R/W	Read/Write select signal
6	E	Chip enable signal
7~14	DB0~DB7	Data bus line
15	V_ee	Negative Voltage Output
16	K	Power supply for B/L -

General Specification

Item	Standard Value	Unit
Module Dimension	122.0× 44.0	mm
Viewing Area	99.0 × 24.0	mm
Character Size	4.8 × 9.22	mm

Absolute Maximum Ratings

Item	Symbol	Standard Value typ.	Unit
Input Voltage	VDD	5.0	V

Specifiche di prodotto

Brand	Winstar
Size	3.8"
Risoluzione	16x2
Area Attiva (mm)	94.20x20.00
Dot Size	0.92x1.10
Colore B/L, Tipo LCD	B/L white, VATN
Alimentazione	5V
Interfaccia Display	6800
Display IC	RW1063
Struttura Costruttiva	COB
Angolo Visione	12H
Temperatura O. (°C)	-20~70
Connessione Display	Soldering PAD
Nr. Pin	16
Passo Pin	2.54mm
Preferred - Not Preferred	Not Preferred
