Specifications
Current Rating: 1Amp
Insulation Resistance: 1000MΩMin
Dielectric Withstanding Voltage: 300VAC
Contact Resistance: 20 mΩMax
Operating Temperature: -40ºC to +105ºC
Material
Contact Material:Phosphor Bronze
Insulation Material:High Temperature Thermoplastic, UL 94V-0 LCP

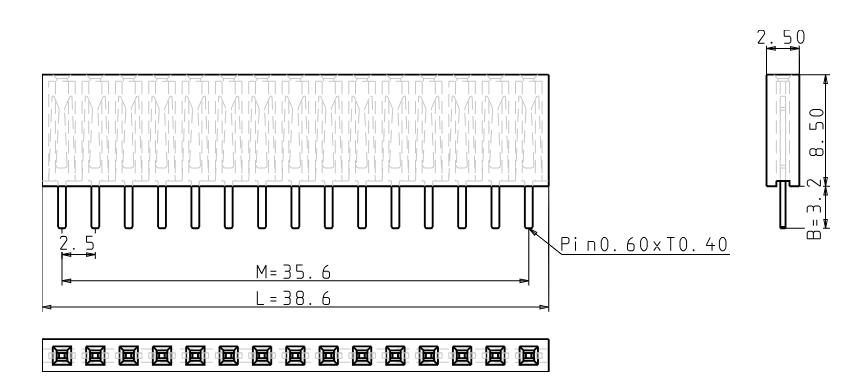

Dimensions

Specifiche di prodotto
|
Constructive Structure
|
Through Hole |
|
Pin Nr.
|
1*15 |
|
Pin Pitch
|
2.54mm |
|
Contact Direction
|
DIP |
