    Eval Kit for TFT 4.3" 480x272, RS485 ModBus interface, 400cd/m², Wide View Angle (IPS), Super extended temperature, Capacitive touch panel (GG)
    Manufacturer: Winstar
    SKU: WWSSDEMO43W-DA-11#

    Accessory kit

    Availability: In stock
    €123.70 excl tax
    i h

    DESCRIPTION

        Link to 'SMART GUI BLIDER' INTRODUCTION & VIDEO

    WL0F00043000WGDAASA00-FC is a 4.3-inch Smart Display_RS485 series TFT, defined as a slave device controlled by a master device via RS485 command to render display content on the display screen and return touch event data with Modbus protocol data. It is featured with Winstar wide temperature TFT WF43-480272WD#APW3-FC and a 4-layers FR4 PCBA built-in firmware. This 4.3" RS485 series TFT is an easy-to-use product that allows you to develop projects rapidly in a cost-effective way. Winstar RS485 Smart Display support single-master (HOST) platforms, such as a computer (with USB2RS485 Dongle), MCU, and Raspberry Pi. Below are the features:

    • DC 5V working voltage.
    • Self testing after booting function.
    • RS485 communication interface with Modbus protocol.
    • Built in flash memory, store the font and Object Dictionary Data.
    • WF43-480272WD#APW3-FC with capacitive touch panel (CTP).
    • Smart Display scenario is slave device display and action from Master Device instruction.
    • Embedded buzzer controlled by Master Device.
    • Demo set HOST can be used on multiple platforms, such as Computer (with USB2RS485 Dongle), MCU, Single Board Computer with Linux OS.
    • Design the UI without writing a line of code by winstar GUI builder!

    Winstar developed a Windows app. for Smart Display GUI design. Winstar GUI builder software allows customers to simulate their GUI design in advance by using the drag-and-drop Widget preview function; customers can also create their ideal GUI. Winstar GUI builder software supports Windows systems only; it can fulfill What You See Is What You Get (WYSIWYG). The new version of built-in software is a 3-in-1 APP; we combined three application templates for optional, including industrial, vehicle and medical applications. Please choose a template you would like to use by pressing 3 seconds icons when the very first time of power on. Customers can change to another template by using GUIbuilder to change the application.

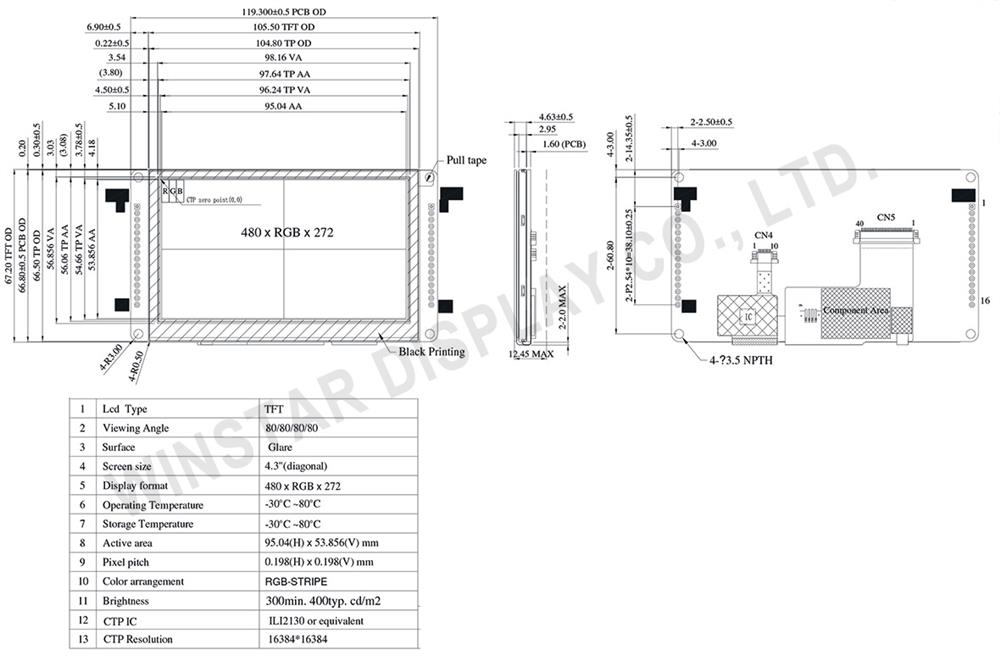

    DRAWING

    SPECIFICATIONS

    General Specifications

    Mechanical Data

    ItemStandard ValueUnit
    LCD panel 105.5(W) × 67.2(H) × 4.6(D) mm
    PCB 119.3(W) × 67.2(H) × 1.6 mm
    Housing outline NA mm


    General information

    ItemStandard ValueUnit
    Operating voltage 5 Vdc
    Communication Interface RS485 differential ± 3.3 Vpp
    MCU STM32F750 N/A
    Flash Memory 16 MB
    SDRAM Frequency 108 Mhz
    Size 4.3 inch
    Dot Matrix 480 × RGB × 272(TFT) dots
    Module dimension 105.5(W) × 67.2(H) × 4.6(D) mm
    Active area 95.04(W) × 53.856 (H) mm
    Dot pitch 0.066 (W) × 0.198(H) mm
    Backlight Type TFT, Normally Black, Transmissive
    Viewing Angle 80/80/80/80
    Aspect Ratio 16:9
    With /Without TP With Projected Capacitive Touch Panel (PCAP)
    Surface Glare


    Absolute Maximum Ratings

    ItemSymbolMinTypMaxUnit
    Operating Temperature TOP -30 - +80 ℃
    Storage Temperature TST -30 - +80 ℃


    Electrical Characteristics

    Operating conditions:

    ItemSymbolMinTypMaxUnit
    Supply Voltage VCC 4.5 5 5.5 V
    Supply Curren ICC - 330   mA

    BOM

    ItemDescription
    LCM WF43-480272WD#APW3-FC
    PCBA SV10004R300WA00N0104

    Interface Pin Function

    CN1 definition

    PinSymbolFunctionRemark
    1 GND GND GND
    2 RS485- RS485 DATA- I/O
    3 RS485+ RS485 DATA+ I/O
    4 VDD 5V Power supply 5V input Input
    5   GND GND GND
    6 NC _ _
    7 NC _ _
    8 VDD 5V Power supply 5V input Input
    9 NC _ _
    10 NC _ _
    11 GND GND GND
    12 GND GND GND
    13 NC _ _
    14 NC _ _
    15 GND GND GND
    16 +6V Power supply 5V input Input


    CN2 definition

    Pin SymbolFunctionRemark
    1 NC
    2 NC
    3 NC
    4 NC
    5 NC
    6 NC
    7 NC
    8 NC
    9 NC
    10 GND GND GND
    11 JTAG_SWDO Data pin for JTAG interface I/O
    12 NRST Reset pin for JTAG interface Input
    13 JTAG_SWDI Data pin for JTAG interface I/O
    14 GND GND for JTAG interface Output
    15 JTAG_SWCLK CLK pin for JTAG interface Input
    16 VDD3V 3.3V power for JTAG interface Output

    Display Usage

    Functional description

    Smart Display can be used to display the coordinate, status and data information provided by the connected HOST device. Customers can configure the position coordinates they want to display in normal operation mode

    The Display is designed to be easily connected to a controller network, and to use the register type of Holding Register.


    Splash Screen

    The default splash image is shown below.



     This product is produced as a generic product. If you require a custom splash image for your application, contact us to discuss

    Default Selection

    Press the preferred application and hold for 3 seconds for the first time power on.

    Winstar's Smart Display Default Selection

    Acquisition of Displayed Data

    Smart Display uses the Modbus protocol to get and send the data.

    On Config mode, customers can set the coordinates or type of objects; On Display mode, customers can send and get data of objects.

    Configuring the Display

    Winstar Smart Display RS-485 series offers an out-of-the-box Modbus development experience that will lower customers' development costs and speed time-to-market expectations.

    The Smart Display can use wide-temperature are designed to support control applications in harsh operating conditions, which designed to be connected to a variety of different situation combinations, such as automotive, marine, power generation and oil-and-gas.

    The Smart Display comes with standard UI objects to get customers project off the ground quickly. If customers need custom UI objects support, our engineers are here to help. Send over your contents in PNG/JPG format, we will send over a new set of UI objects within 3~5 working days.

    The Smart Display is defined as a slave device, which is controlled by master device via RS-485 command to render display content on the display screen and return touch event data with protocol objects.

    Example Screen Layout (Industry application)

    Example Layout

    The screen layout described in this section is intended to demonstrate the settings of screen items that can be used in an industry application situation.



    Example Layout (Vehicle automotive)

    The screen layout described in this section is intended to demonstrate the settings of screen items that can be used in a vehicle automotive situation.



    Example Layout (Medical application)

    The screen layout described in this section is intended to demonstrate the settings of screen items that can be used in a Medical application situation.



    Products specifications
    Size 4.3"
    Resolution 480x272
    Active Area (mm) 95.04x53.85
    Color Full Color
    Power supply 5V
    Display Interface RS485
    View Angle IPS
    Frame Yes
    Touch Panel Capacitive
    O. Temperature (°C) -30~80
    Preferred - Not Preferred Preferred
    *
    *
    *
    *
