WWSSDEMO35X-DA-10#

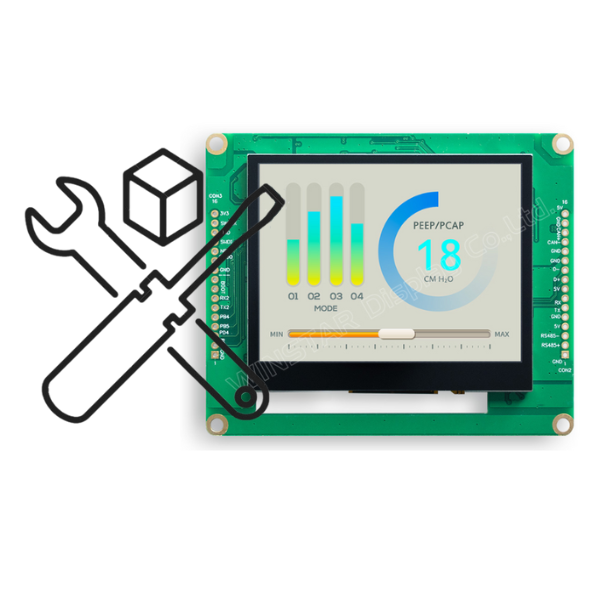

Eval Kit for TFT 3.5" 320x240, RS485 ModBus interface, 400cd/m², Wide View Angle (IPS), Super extended temperature, No Touch

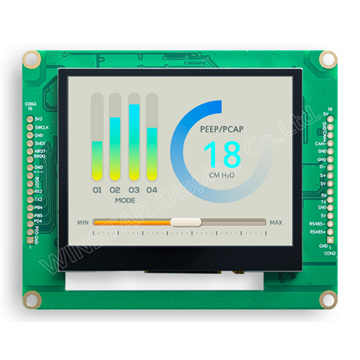

EVALUATION KIT FOR WL0F00035000XNDAASA00-FC

Content

    Link to 'SMART GUI BLIDER' INTRODUCTION & VIDEO

3.5-inch Smart Display_RS485 series TFT, defined as a slave device controlled by a master device via RS485 command to render display content on the display screen and return touch event data with Modbus protocol data. This module is featured with Winstar wide temperature standard TFT and a 4-layers FR4 PCBA built-in firmware. This 3.5” RS485 series TFT is an easy-to-use product that allows you to develop projects rapidly in a cost-effective way. Winstar RS485 Smart Display support single-master (HOST) platforms, such as a computer (with USB2RS485 Dongle), MCU, and Raspberry Pi.

Smart Display products are designed with STMicroelectronics' (ST) controller which supports ST development tools like TouchGFX and STM32CubeIDE. You can also use ST tools to design WINSTAR Smart Display modules besides GUI builder.

  • TouchGFX: An advanced free-of-charge graphic software framework optimized for STM32 microcontrollers.
  • STM32CubeIDE: An advanced C/C++ development platform with peripheral configuration, code generation, code compilation, and debug features for STM32 microcontrollers and microprocessors.
  • STM32CubeMX: A graphical tool that allows a very easy configuration of STM32 microcontrollers, as well as the generation of the corresponding initialization C code for the Arm® Cortex®-M core or a partial Linux® Device Tree for Arm® Cortex®-A core, through a step-by-step process.
  • STM32CubeProg: An all-in-one multi-OS software tool for programming STM32 products. It provides an easy-to-use and efficient environment for reading, writing and verifying device memory through both the debug interface (JTAG and SWD) and the bootloader interface (UART, USB DFU, I2C, SPI, and CAN).

Below are the features of this 3.5 inches Smart Display (RS485 series):

  • DC 5V~24V working voltage, low power consumption.
  • Self testing after booting function.
  • RS485 communication interface.
  • Built in flash memory, store the font and Object Dictionary Data.
  • Without TP.
  • Embedded buzzer controlled by Master Device.
  • Demo set HOST can be used on multiple platforms, such as Computer (with USB to RS485 Dongle), MCU, Raspberry Pi (with PiCAN2).


Winstar developed a Windows app. for Smart Display GUI design. Winstar GUI builder software allows customers to simulate their GUI design in advance by using the drag-and-drop Widget preview function; customers can also create their ideal GUI. Winstar GUI builder software supports Windows systems only; it can fulfill What You See Is What You Get (WYSIWYG). The new version of built-in software is a 3-in-1 APP; we combined three application templates for optional, including industrial, vehicle and medical applications. Please choose a template you would like to use by pressing 3 seconds icons when the very first time of power on. Customers can change to another template by using GUIbuilder to change the application.



SPECIFICATIONS

General Specifications

ItemStandard ValueUnit
Operating voltage 5~24 Vdc
Communication Interface RS485 differential --
MCU STM32F750 N/A
Flash ROM 16 MB
SDRAM 8 MB
LCD display size 3.5 inch
Dot Matrix 320 x 3(RGB) x 240 dot
Module dimension 100(W) x 82(H) x 13.2(D) mm
Active area 70.08(H) x 52.56(V) mm
Pixel pitch 0.073(W) x 0.219(H) mm
Brightness Min: 300; Typ: 400 cd/m2
LCD type TFT, Normally Black, Transmissive
View Direction 80/80/80/80
Aspect Ratio 4:3
With / Without TP Without TP
Surface Glare



Display Usage

Functional description

Smart Display can be used to display the coordinate, status and data information provided by the connected HOST device. Customers can configure the position coordinates they want to display in normal operation mode.

The Display is designed to be easily connected to a controller network, and to use the register type of Holding Register

Splash Screen

The default splash image is shown below.

This product is produced as a generic product. If you require a custom splash image for your application, contact us to discuss.

Acquisition of Displayed Data

Smart Display uses the Modbus protocol to get and send the data.

On Config mode, customers can set the coordinates or type of objects; On Display mode, customers can send and get data of objects.

Configuring the Display

Winstar Smart Display RS-485 series offers an out-of-the-box Modbus development experience that will lower customers' development costs and speed time-to-market expectations.

The Smart Display can use wide-temperature are designed to support control applications in harsh operating conditions, which designed to be connected to a variety of different situation combinations, such as automotive, marine, power generation and oil-and-gas.

The Smart Display can use wide-temperature are designed to support control applications in harsh operating conditions, which designed to be connected to a variety of different situation combinations, such as automotive, marine, power generation and oil-and-gas.

The Smart Display comes with standard UI objects to get customers project off the ground quickly. If customers need custom UI objects support, our engineers are here to help. Send over your contents in PNG/JPG format, we will send over a new set of UI objects within 3~5 working days

The Smart Display is defined as a slave device, which is controlled by master device via RS-485 command to render display content on the display screen and return touch event data with protocol objects.

Example Screen Layout (Industry application)

The screen layout described in this section is intended to demonstrate the settings of screen items that can be used in a industry application situation.

Example Screen Layout (Vehicle automotive)

The screen layout described in this section is intended to demonstrate the settings of screen items that can be used in a vehicle automotive situation.

Example Screen Layout (Medical application)

The screen layout described in this section is intended to demonstrate the settings of screen items that can be used in a Medical application situation.

SKU: WWSSDEMO35X-DA-10#
Brand: Winstar
Available: Yes
Accessory Kit
€87.50 excl tax

EVALUATION KIT FOR WL0F00035000XNDAASA00-FC

Content

    Link to 'SMART GUI BLIDER' INTRODUCTION & VIDEO

3.5-inch Smart Display_RS485 series TFT, defined as a slave device controlled by a master device via RS485 command to render display content on the display screen and return touch event data with Modbus protocol data. This module is featured with Winstar wide temperature standard TFT and a 4-layers FR4 PCBA built-in firmware. This 3.5” RS485 series TFT is an easy-to-use product that allows you to develop projects rapidly in a cost-effective way. Winstar RS485 Smart Display support single-master (HOST) platforms, such as a computer (with USB2RS485 Dongle), MCU, and Raspberry Pi.

Smart Display products are designed with STMicroelectronics' (ST) controller which supports ST development tools like TouchGFX and STM32CubeIDE. You can also use ST tools to design WINSTAR Smart Display modules besides GUI builder.

  • TouchGFX: An advanced free-of-charge graphic software framework optimized for STM32 microcontrollers.
  • STM32CubeIDE: An advanced C/C++ development platform with peripheral configuration, code generation, code compilation, and debug features for STM32 microcontrollers and microprocessors.
  • STM32CubeMX: A graphical tool that allows a very easy configuration of STM32 microcontrollers, as well as the generation of the corresponding initialization C code for the Arm® Cortex®-M core or a partial Linux® Device Tree for Arm® Cortex®-A core, through a step-by-step process.
  • STM32CubeProg: An all-in-one multi-OS software tool for programming STM32 products. It provides an easy-to-use and efficient environment for reading, writing and verifying device memory through both the debug interface (JTAG and SWD) and the bootloader interface (UART, USB DFU, I2C, SPI, and CAN).

Below are the features of this 3.5 inches Smart Display (RS485 series):

  • DC 5V~24V working voltage, low power consumption.
  • Self testing after booting function.
  • RS485 communication interface.
  • Built in flash memory, store the font and Object Dictionary Data.
  • Without TP.
  • Embedded buzzer controlled by Master Device.
  • Demo set HOST can be used on multiple platforms, such as Computer (with USB to RS485 Dongle), MCU, Raspberry Pi (with PiCAN2).


Winstar developed a Windows app. for Smart Display GUI design. Winstar GUI builder software allows customers to simulate their GUI design in advance by using the drag-and-drop Widget preview function; customers can also create their ideal GUI. Winstar GUI builder software supports Windows systems only; it can fulfill What You See Is What You Get (WYSIWYG). The new version of built-in software is a 3-in-1 APP; we combined three application templates for optional, including industrial, vehicle and medical applications. Please choose a template you would like to use by pressing 3 seconds icons when the very first time of power on. Customers can change to another template by using GUIbuilder to change the application.



SPECIFICATIONS

General Specifications

ItemStandard ValueUnit
Operating voltage 5~24 Vdc
Communication Interface RS485 differential --
MCU STM32F750 N/A
Flash ROM 16 MB
SDRAM 8 MB
LCD display size 3.5 inch
Dot Matrix 320 x 3(RGB) x 240 dot
Module dimension 100(W) x 82(H) x 13.2(D) mm
Active area 70.08(H) x 52.56(V) mm
Pixel pitch 0.073(W) x 0.219(H) mm
Brightness Min: 300; Typ: 400 cd/m2
LCD type TFT, Normally Black, Transmissive
View Direction 80/80/80/80
Aspect Ratio 4:3
With / Without TP Without TP
Surface Glare



Display Usage

Functional description

Smart Display can be used to display the coordinate, status and data information provided by the connected HOST device. Customers can configure the position coordinates they want to display in normal operation mode.

The Display is designed to be easily connected to a controller network, and to use the register type of Holding Register

Splash Screen

The default splash image is shown below.

This product is produced as a generic product. If you require a custom splash image for your application, contact us to discuss.

Acquisition of Displayed Data

Smart Display uses the Modbus protocol to get and send the data.

On Config mode, customers can set the coordinates or type of objects; On Display mode, customers can send and get data of objects.

Configuring the Display

Winstar Smart Display RS-485 series offers an out-of-the-box Modbus development experience that will lower customers' development costs and speed time-to-market expectations.

The Smart Display can use wide-temperature are designed to support control applications in harsh operating conditions, which designed to be connected to a variety of different situation combinations, such as automotive, marine, power generation and oil-and-gas.

The Smart Display can use wide-temperature are designed to support control applications in harsh operating conditions, which designed to be connected to a variety of different situation combinations, such as automotive, marine, power generation and oil-and-gas.

The Smart Display comes with standard UI objects to get customers project off the ground quickly. If customers need custom UI objects support, our engineers are here to help. Send over your contents in PNG/JPG format, we will send over a new set of UI objects within 3~5 working days

The Smart Display is defined as a slave device, which is controlled by master device via RS-485 command to render display content on the display screen and return touch event data with protocol objects.

Example Screen Layout (Industry application)

The screen layout described in this section is intended to demonstrate the settings of screen items that can be used in a industry application situation.

Example Screen Layout (Vehicle automotive)

The screen layout described in this section is intended to demonstrate the settings of screen items that can be used in a vehicle automotive situation.

Example Screen Layout (Medical application)

The screen layout described in this section is intended to demonstrate the settings of screen items that can be used in a Medical application situation.

Products specifications
Brand Winstar
Size 3.5"
Resolution 320x240
Active Area (mm) 70.08x52.56
Color Full Color
Power supply 5V
Display Interface RS485
View Angle IPS
Frame Yes
Touch Panel No touch
O. Temperature (°C) -30~80
Preferred - Not Preferred Preferred
