WWOLEDUSBDEMO-160#

Picture of WWOLEDUSBDEMO-160#

Evaluation kit for PMOLED COG/TAB + FPC or Hot bar versions 1.1-5.5"

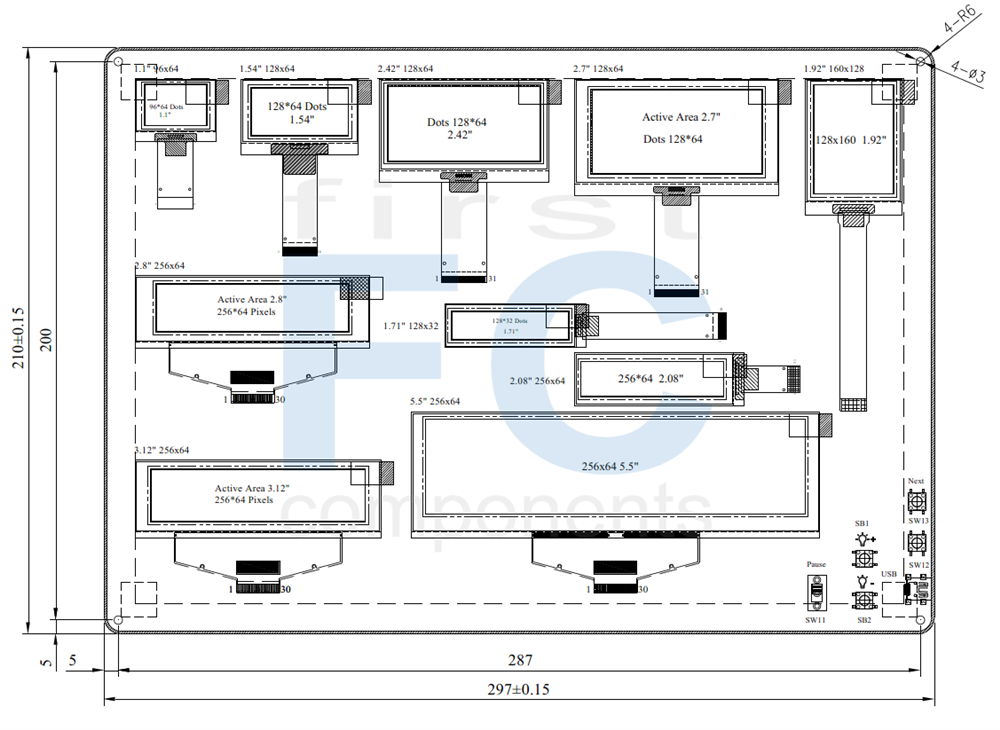

DRAWING

General Specification

Item	Module	Module dimension (mm)
1.1" 96*64	WEO9664L#B00-FC	29.00x22.50x01.65
1.54" 128*64	WEO12864W#A01-FC	42.04x27.22x01.45
2.42" 128*64	WEO12864W#G0=-FC	60.50x37.00x02.15
2.7"128*64	WEO12864L#K00-FC	73.00x41.86x02.15
1.92" 160*128	WEO160128W#A00-FC	34.50x48.80x01.41
2.8" 256*64	WEX25664W#A00-FC	84.00x25.80x02.15
1.71" 128*32	WEO12832W#G00-FC	50.50x15.75x02.01
2.08" 256*64	WEO25664L#A00-FC	60.50x19.00x01.61
3.12" 256*64	WEX25664L#B00-FC	88.00x27.80x02.05
5.5" 256*64	WEX25664G#D00-FC	146.00x45.00x02.05

Interface Description

Component explain

Parts Location	Function explanation	Remarks
USB	+5V power supply from adaptor or Notebook/PC	-
SB1	High Brightness	-
SB2	Low Brightness	-
SW11	Loop/Step Mode Function switch	-
SW12	Step Control Function (Switch to the next image)	-
SW13	Reset Function	-

Absolute Maximum Ratings

Parameter	Symbol	Min	Max	Unit	Notes
USB Supply Voltage	VDD	0	5.5	V	1
Operating Temperaature	TOP	-20	+60	°C	-
Storage Temperature	TSTG	-30	+70	°C	-

Note 1: All the above voltages are on the basis of "VSS = 0V".

Electrical Characteristics

DC Electrical Characteristics

Item	Symbol	Condition	Min.	Typical	Max.	Unit
USB Supply Voltage	VDD-VSS	-	4.7	5	5.3	V
VDD Supply Current	IDD	-	2	-	3	A

Module Dimensions Characteristics

No	Item	Remark
1.	Demo Board PCB + OLED Module	297*210 (mm)

SKU: WWOLEDUSBDEMO-160#

Brand: Winstar
