WO320240-85HH#FC

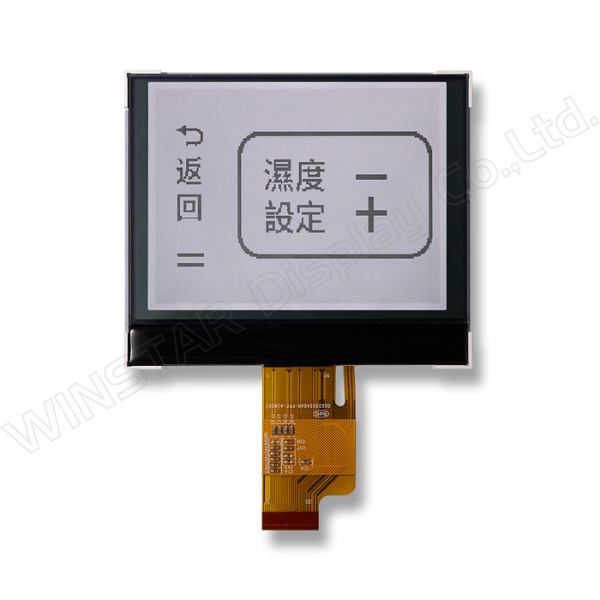

Graphic LCD 4.88" 320x240, B/L white, FSTN white pos, Transflective, COG, 3V, Interface 6800/8080/SPI, 6 O'clock

DESCRIPTION

This 4.88-inch monochrome LCD display module adopts a COG (Chip on Glass) structure, with the controller IC directly mounted on the glass substrate, effectively saving space while enabling a slim form factor and enhanced stability. It features a 320x240 dot resolution and a 1/240 driving method. The module integrates an IST3088 controller IC and a built-in booster circuit, allowing contrast adjustment via software for optimized display performance.

It supports various interface options including 6800, 8080, and 4-Wire SPI, offering flexible configuration through software or hardware connections. Both the display and backlight operate on a single 3.0V power supply, simplifying the power architecture. Ideal for industrial control systems, HMIs, instrumentation, medical equipment, and other applications requiring medium-sized monochrome graphical displays.



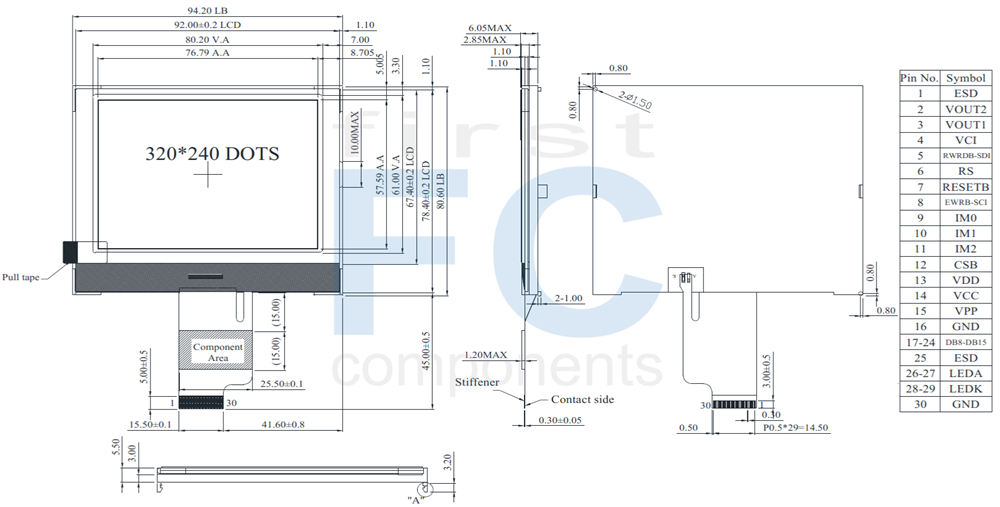

DRAWING



SPECIFICATIONS

Mechanical Data

ItemDimensionUnit
Number of dots  320 x 240 dots －
Module dimension 94.20 x 80.60 x 6.05(MAX) mm
View area 80.2 x 61.00 mm
Active area 76.79 x 57.59 mm
Dot size 0.23 x0.23 mm
Dot pitch 0.24x 0.24 mm
Duty 1/240 duty;1/12 bias
Backlight Type LED
IC IST3088
Interface 6800/8080/4-Line SPI



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 － +70 ℃
Storage Temperature TST -30 － +80 ℃
Supply voltage range VCC -0.3 － +8.0 V
V0/VOUT -0.3 － +40 V
V1/V2/V3/V4 -0.3 － V0 V



Electrical Characteristics

ItemSymbolConditionMinTypMaxUnit
Supply Voltage For Logic VCC-VSS － 2.8 3.0 3.3 V
Supply Voltage For LCM VOP Ta=-20℃
Ta=25℃
Ta=+70℃		 －
21.5
－		 －
22.0
－		 －
22.5
－		 V
V
V
Input High Volt. VIH － 0.8VCC － VCC V
Input Low Volt. VIL － GND － 0.2 VCC V
Output High Volt. VOH － 0.8 VCC － VCC V
Output Low Volt. VOL － GND － 0.2 VCC V
Supply Current IDD VCC=3.0V － 15 25 mA



Interface Pin Function

PinSymbolFunction
1 ESD ESD
2 VOUT2 VOUT2 is the internal booster output, step-up voltage based on the difference voltage of VCI & GND.
3 VOUT1 VOUT1 is the internal booster   output, step-up voltage based on the difference voltage of VCI & GND.
4 VCI Power source
5 RWRDB-SDI 4-line serial interface
6 RS Internal resistor select pin
7 RESETB Reset pin
8 EWRB-SCI 4-line serial interface
9 IM0
IM2IM1IM0MPU interface mode
GND GND GND 68-system 16-bit bus interface
GND GND VCC 68-system 8-bit bus interface
GND VCC GND 80-system 16-bit bus interface
GND VCC VCC 80-system 8-bit bus interface
VCC GND GND 4-line serial interface
10 IM1
11 IM2
12 CSB Chip select
13 VDD Power source
14 VCC Power supply
15 VPP External power VPP is the power pin of embedded OTP (One-Time-Programming)
16 GND Ground
17-24 DB8-DB15 8 bit bi-directional data bus.
25 ESD ESD
26-27 LEDA Backlight A
28-29 LEDK Backlight K
30 GND Ground
SKU: WO320240-85HH#FC
Brand: Winstar
Available: No
Be the first to review this product
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
Price
€32.30
€25.80
€24.90

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€32.30 excl tax

DESCRIPTION

This 4.88-inch monochrome LCD display module adopts a COG (Chip on Glass) structure, with the controller IC directly mounted on the glass substrate, effectively saving space while enabling a slim form factor and enhanced stability. It features a 320x240 dot resolution and a 1/240 driving method. The module integrates an IST3088 controller IC and a built-in booster circuit, allowing contrast adjustment via software for optimized display performance.

It supports various interface options including 6800, 8080, and 4-Wire SPI, offering flexible configuration through software or hardware connections. Both the display and backlight operate on a single 3.0V power supply, simplifying the power architecture. Ideal for industrial control systems, HMIs, instrumentation, medical equipment, and other applications requiring medium-sized monochrome graphical displays.



DRAWING



SPECIFICATIONS

Mechanical Data

ItemDimensionUnit
Number of dots  320 x 240 dots －
Module dimension 94.20 x 80.60 x 6.05(MAX) mm
View area 80.2 x 61.00 mm
Active area 76.79 x 57.59 mm
Dot size 0.23 x0.23 mm
Dot pitch 0.24x 0.24 mm
Duty 1/240 duty;1/12 bias
Backlight Type LED
IC IST3088
Interface 6800/8080/4-Line SPI



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 － +70 ℃
Storage Temperature TST -30 － +80 ℃
Supply voltage range VCC -0.3 － +8.0 V
V0/VOUT -0.3 － +40 V
V1/V2/V3/V4 -0.3 － V0 V



Electrical Characteristics

ItemSymbolConditionMinTypMaxUnit
Supply Voltage For Logic VCC-VSS － 2.8 3.0 3.3 V
Supply Voltage For LCM VOP Ta=-20℃
Ta=25℃
Ta=+70℃		 －
21.5
－		 －
22.0
－		 －
22.5
－		 V
V
V
Input High Volt. VIH － 0.8VCC － VCC V
Input Low Volt. VIL － GND － 0.2 VCC V
Output High Volt. VOH － 0.8 VCC － VCC V
Output Low Volt. VOL － GND － 0.2 VCC V
Supply Current IDD VCC=3.0V － 15 25 mA



Interface Pin Function

PinSymbolFunction
1 ESD ESD
2 VOUT2 VOUT2 is the internal booster output, step-up voltage based on the difference voltage of VCI & GND.
3 VOUT1 VOUT1 is the internal booster   output, step-up voltage based on the difference voltage of VCI & GND.
4 VCI Power source
5 RWRDB-SDI 4-line serial interface
6 RS Internal resistor select pin
7 RESETB Reset pin
8 EWRB-SCI 4-line serial interface
9 IM0
IM2IM1IM0MPU interface mode
GND GND GND 68-system 16-bit bus interface
GND GND VCC 68-system 8-bit bus interface
GND VCC GND 80-system 16-bit bus interface
GND VCC VCC 80-system 8-bit bus interface
VCC GND GND 4-line serial interface
10 IM1
11 IM2
12 CSB Chip select
13 VDD Power source
14 VCC Power supply
15 VPP External power VPP is the power pin of embedded OTP (One-Time-Programming)
16 GND Ground
17-24 DB8-DB15 8 bit bi-directional data bus.
25 ESD ESD
26-27 LEDA Backlight A
28-29 LEDK Backlight K
30 GND Ground
Products specifications
Brand Winstar
Size 4.88"
Resolution 320x240
Active Area (mm) 76.79x57.59
Dot Size 0.23x0.23
B/L color, LCD type B/L white, FSTN white pos
Power supply 3V
Display Interface 6800/8080/SPI
Display IC IST3088
Constructive Structure COG
View Angle 6H
Frame No
Touch Panel No touch
O. Temperature (°C) -20~70
Display Connection FPC for ZIF Connector
Pin Nr. 30
Pin Pitch 0.5mm
Preferred - Not Preferred Preferred
