WO240128-85HB#FC

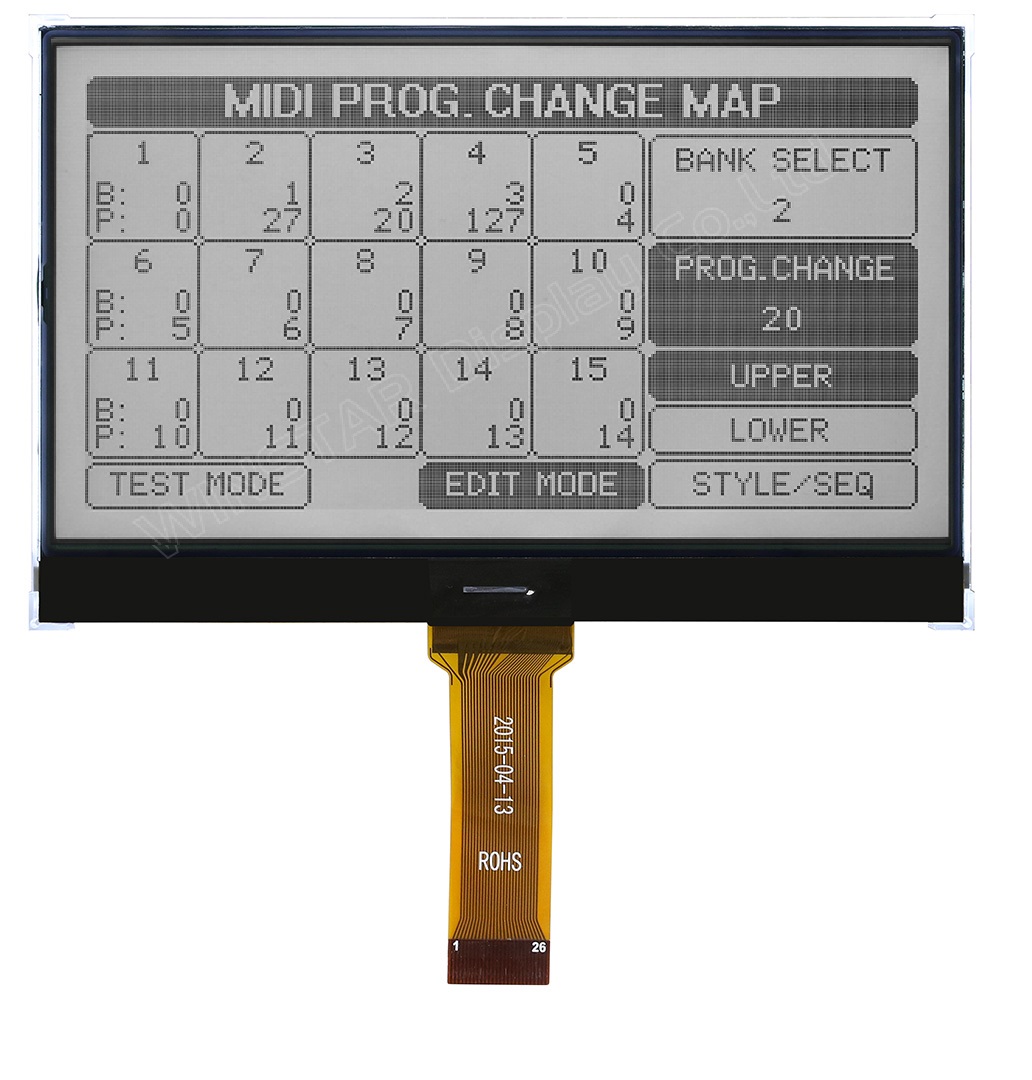

Picture of WO240128-85HB#FC Picture of WO240128-85HB#FC
Graphic LCD 4.8" 240x128, B/L white, FSTN white pos, Transflective, COG, 3V, Interface 6800/8080/SPI, 6 O'clock

DESCRIPTION

Monochrome COG graphic LCD module made of 240x128 pixels, diagonal size 4.8 inch. This COG LCD Module is built in with ST7586S controller IC; it supports 6800 8-bit, 8080 8-bit parallel and 3-line 9-bit /4-line 8-bit serial SPI interface. This COG has the same Active Area dimension and View Area as COB WG240128B, but this COG is much thinner than WG240128B. If the customers require 4.8” thinner module for new design, it is a good choice.

Operating temperatures from -20℃ to +70℃; storage temperatures range from -30℃ to +80℃. Different LCD mode options; STN Negative blue with white LED backlight, and FSTN positive white with white LED backlight.

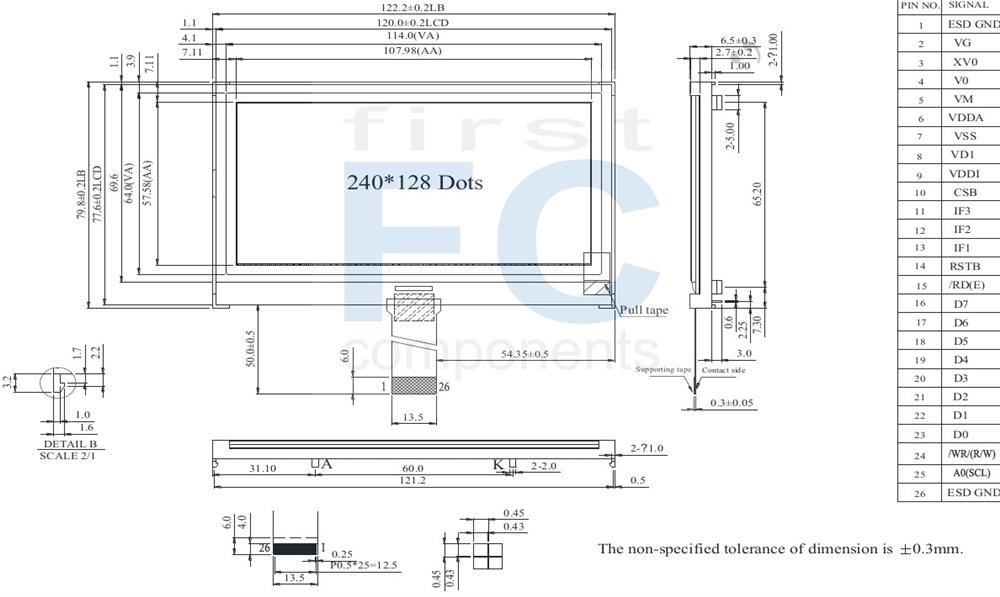

DRAWING




SPECIFICATIONS

Interface Pin Function

Pin No.SymbolDescription
1 ESD GND Electro-Static discharge
2 VG VG is the power of SEG-drivers
3 XV0 Negative operating voltage of COM-drivers
4 V0 Positive operating voltage of COM-drivers
5 VM VM is the non-select voltage level of COM-drivers
6 VDDA Power supply
7 VSS Ground
8 VD1 Digital power source selection
9 VDDI VDD1 is the power of interface I/O circuit
10 CSB Chip select input pin
CSB=“L”: This chip is selected and the MPU interface is active
CSB=“H”: This chip is not selected and the MPU interface is disabled
(D[7:0] are high impedance)
11
12
13		 IF3
IF2
IF1

These pins select interface operation mode

IF3IF2IF1MPU interface type
H H L 80 series 8-bit parallel
H L L 68 series 8-bit parallel
L H H 8-bit serial (4-Line)
L H L 9-bit serial (3-Line)
14 RSTB Reset input pin. When RSTB is “L”, internal initialization procedure is executed
15 /RD(E)

Read / Write execution control pin. (This pin is only used in parallelinterface)

MPU TypeERDDescriptin
6800-series ERD Read/Write control input pin
R/W = "H" When E is "H", data bus is in output status.
R/W = "L" The data are lunched at the failling edge of the E signal.
8080-series /RD Read enable inputpin.
When /RD is "L". Data bus is in output status.
16~23 D7~D0 The bi-directional data bus of the MPU interface. When CSB is “H”, they are high impedance
If using serial interface:
D0 is the SDA signal in 4-Line & 3-Line interface
D1 is the A0 signal in 4-Line interface
24 /WR/(R/W)

Read / Write execution control pin. (This pin is only used in parallel interface)

MPU TypeRWRDescriptin
6800-series R/W Read/Write control input pin
R/W = "H" : Read
R/W = "L" : write
8080-series /WR Write enable clock input pin.
The data are layched at the rising edge of the /WR signal.
25 A0(SCL) The function of this pin is different in parallel and serial interface
In parallel interface: A0 is register selection input
A0 = "H": inputs on data bus are display data
A0 = "L": inputs on data bus are command
In serial interface: this pad will be used as SCL (serial-clock) input
26 ESD GND Electro-Static discharge



Mechanical Data

ItemDimensionUnit
Number of dots 240 × 128 －
Module dimension 122.2 × 79.8 × 6.5 mm
View area 114.0 × 64.0 mm
Active area 107.98 × 57.58 mm
Dot size 0.43 × 0.43 mm
Dot pitch 0.45 × 0.45 mm
Drive Method 1/128Duty，1/12Bias
Backlight Type LED
IC ST7586S



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 － +70 ℃
Storage Temperature TST -30 － +80 ℃
Digital Power Supply Voltage VDDI -0.3 － 3.6 V
Analog Power supply voltage VDDA -0.3 － 3.6 V
LCD Power supply voltage V0-XV0 -0.3 － 19 V
LCD Power supply voltage VG -0.3 － 5.5 V



Electrical Characteristics

ItemSymbolConditionMinTypMaxUnit
Supply Voltage For Logic VDD-VSS － 3.0 3.3 3.6 V
Supply Voltage For LCM VOP Ta=-20℃
Ta=25℃
Ta=+70℃		 －
14.8
－		 －
15.0
－		 －
15.2
－		 V
V
V
Input High Volt. VIH － 0.7VDD － VDD V
Input Low Volt. VIL － Vss － 0.3 VDD V
Output High Volt. VOH － 0.8 VDD － VDD V
Output Low Volt. VOL － Vss － 0.2VDD V
Supply Current IDD VDD=3.3V － － 2.0 mA


SKU: WO240128-85HB#FC
Brand: Winstar
Available: No
Be the first to review this product
Price Breaks
Quantity
1+
5+
10+
Price
€30.60
€24.50
€23.60

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€30.60 excl tax

DESCRIPTION

Monochrome COG graphic LCD module made of 240x128 pixels, diagonal size 4.8 inch. This COG LCD Module is built in with ST7586S controller IC; it supports 6800 8-bit, 8080 8-bit parallel and 3-line 9-bit /4-line 8-bit serial SPI interface. This COG has the same Active Area dimension and View Area as COB WG240128B, but this COG is much thinner than WG240128B. If the customers require 4.8” thinner module for new design, it is a good choice.

Operating temperatures from -20℃ to +70℃; storage temperatures range from -30℃ to +80℃. Different LCD mode options; STN Negative blue with white LED backlight, and FSTN positive white with white LED backlight.



DRAWING




SPECIFICATIONS

Interface Pin Function

Pin No.SymbolDescription
1 ESD GND Electro-Static discharge
2 VG VG is the power of SEG-drivers
3 XV0 Negative operating voltage of COM-drivers
4 V0 Positive operating voltage of COM-drivers
5 VM VM is the non-select voltage level of COM-drivers
6 VDDA Power supply
7 VSS Ground
8 VD1 Digital power source selection
9 VDDI VDD1 is the power of interface I/O circuit
10 CSB Chip select input pin
CSB=“L”: This chip is selected and the MPU interface is active
CSB=“H”: This chip is not selected and the MPU interface is disabled
(D[7:0] are high impedance)
11
12
13		 IF3
IF2
IF1

These pins select interface operation mode

IF3IF2IF1MPU interface type
H H L 80 series 8-bit parallel
H L L 68 series 8-bit parallel
L H H 8-bit serial (4-Line)
L H L 9-bit serial (3-Line)
14 RSTB Reset input pin. When RSTB is “L”, internal initialization procedure is executed
15 /RD(E)

Read / Write execution control pin. (This pin is only used in parallelinterface)

MPU TypeERDDescriptin
6800-series ERD Read/Write control input pin
R/W = "H" When E is "H", data bus is in output status.
R/W = "L" The data are lunched at the failling edge of the E signal.
8080-series /RD Read enable inputpin.
When /RD is "L". Data bus is in output status.
16~23 D7~D0 The bi-directional data bus of the MPU interface. When CSB is “H”, they are high impedance
If using serial interface:
D0 is the SDA signal in 4-Line & 3-Line interface
D1 is the A0 signal in 4-Line interface
24 /WR/(R/W)

Read / Write execution control pin. (This pin is only used in parallel interface)

MPU TypeRWRDescriptin
6800-series R/W Read/Write control input pin
R/W = "H" : Read
R/W = "L" : write
8080-series /WR Write enable clock input pin.
The data are layched at the rising edge of the /WR signal.
25 A0(SCL) The function of this pin is different in parallel and serial interface
In parallel interface: A0 is register selection input
A0 = "H": inputs on data bus are display data
A0 = "L": inputs on data bus are command
In serial interface: this pad will be used as SCL (serial-clock) input
26 ESD GND Electro-Static discharge



Mechanical Data

ItemDimensionUnit
Number of dots 240 × 128 －
Module dimension 122.2 × 79.8 × 6.5 mm
View area 114.0 × 64.0 mm
Active area 107.98 × 57.58 mm
Dot size 0.43 × 0.43 mm
Dot pitch 0.45 × 0.45 mm
Drive Method 1/128Duty，1/12Bias
Backlight Type LED
IC ST7586S



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 － +70 ℃
Storage Temperature TST -30 － +80 ℃
Digital Power Supply Voltage VDDI -0.3 － 3.6 V
Analog Power supply voltage VDDA -0.3 － 3.6 V
LCD Power supply voltage V0-XV0 -0.3 － 19 V
LCD Power supply voltage VG -0.3 － 5.5 V



Electrical Characteristics

ItemSymbolConditionMinTypMaxUnit
Supply Voltage For Logic VDD-VSS － 3.0 3.3 3.6 V
Supply Voltage For LCM VOP Ta=-20℃
Ta=25℃
Ta=+70℃		 －
14.8
－		 －
15.0
－		 －
15.2
－		 V
V
V
Input High Volt. VIH － 0.7VDD － VDD V
Input Low Volt. VIL － Vss － 0.3 VDD V
Output High Volt. VOH － 0.8 VDD － VDD V
Output Low Volt. VOL － Vss － 0.2VDD V
Supply Current IDD VDD=3.3V － － 2.0 mA


Products specifications
Brand Winstar
Size 4.8"
Resolution 240x128
Active Area (mm) 107.98x57.58
Dot Size 0.43x0.43
B/L color, LCD type B/L white, FSTN white pos
Power supply 3.3V
Display Interface 6800/8080/SPI
Display IC ST7586S-G4
Constructive Structure COG
View Angle 6H
Frame No
Touch Panel No touch
O. Temperature (°C) -20~70
Display Connection FPC for ZIF Connector
Pin Nr. 26
Pin Pitch 0.5mm
Preferred - Not Preferred Preferred
Download
Products specifications
Brand Winstar
Size 4.8"
Resolution 240x128
Active Area (mm) 107.98x57.58
Dot Size 0.43x0.43
B/L color, LCD type B/L white, FSTN white pos
Power supply 3.3V
Display Interface 6800/8080/SPI
Display IC ST7586S-G4
Constructive Structure COG
View Angle 6H
Frame No
Touch Panel No touch
O. Temperature (°C) -20~70
Display Connection FPC for ZIF Connector
Pin Nr. 26
Pin Pitch 0.5mm
Preferred - Not Preferred Preferred
Related products
Picture of EVAL_KIT_WO240128B-TFH#

EVAL_KIT_WO240128B-TFH#

Development Board for MONO LCD COG 4.8" 240x128, COG, 3.3V, Interface 6800/8080/SPI (Including LCD)
€55.60 excl tax

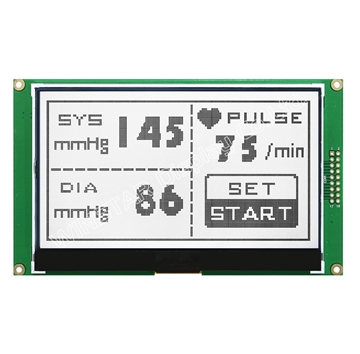

Picture of WO240128-85HB2#FC
