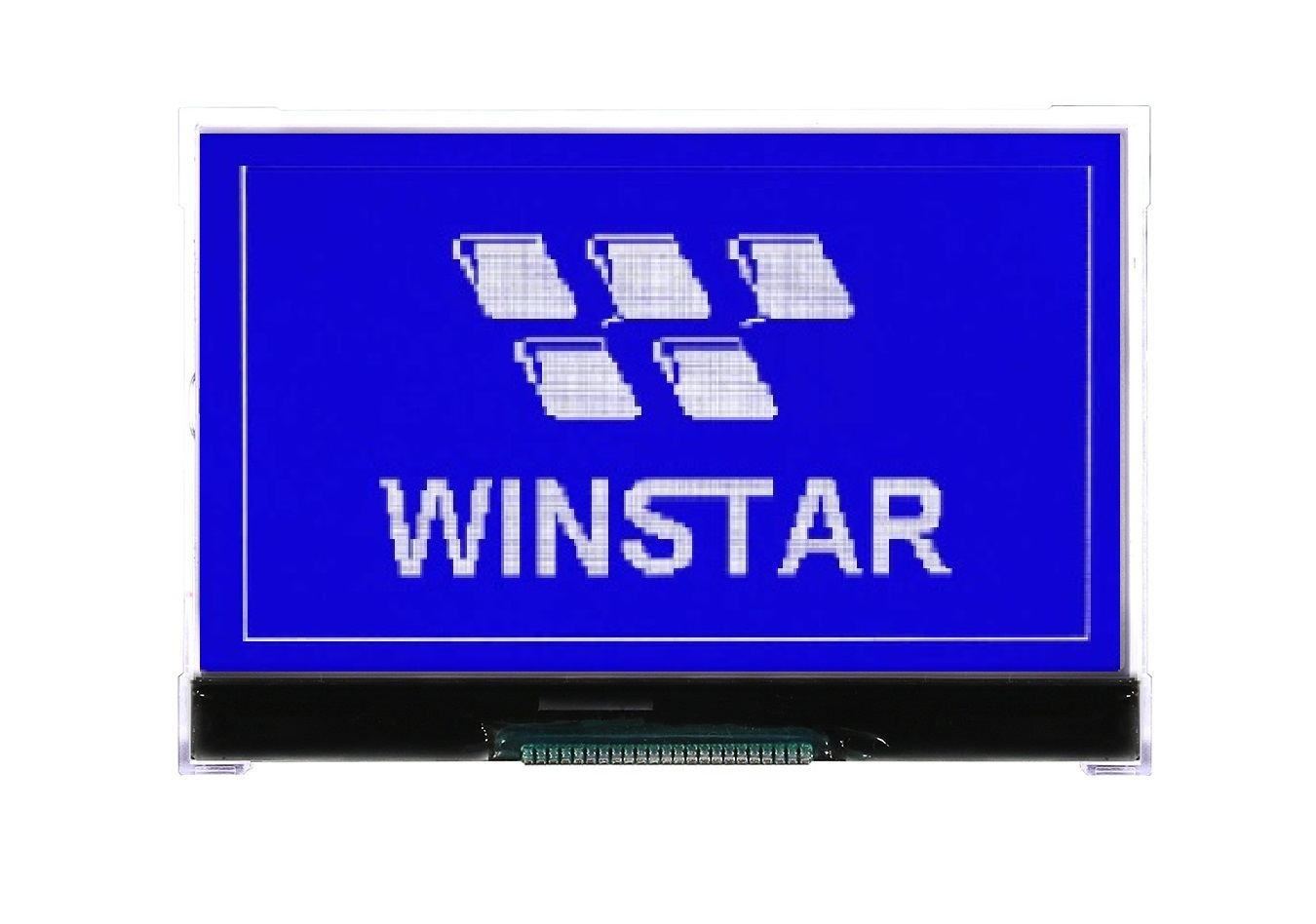

    WO240128-84IA#FC

    Graphic LCD 3.7" 240x128, B/L white, STN blue neg, Transmissive, COG, 3V, Interface 6800/8080/SPI, 6 O'clock
    Manufacturer: Winstar
    SKU: WO240128-84IA#FC

    Accessory kit

    PRICE BREAKS
    Quantity
    1+
    5+
    10+
    Price
    €33.40
    €30.10
    €28.30

    For quantities above 24pcs pls send your enquiry to [email protected] or call +39 0332 1888005

    Availability: In stock
    €33.40 excl tax
    i h

    MOQ

    After sample PO, MP MOQ 1000pcs

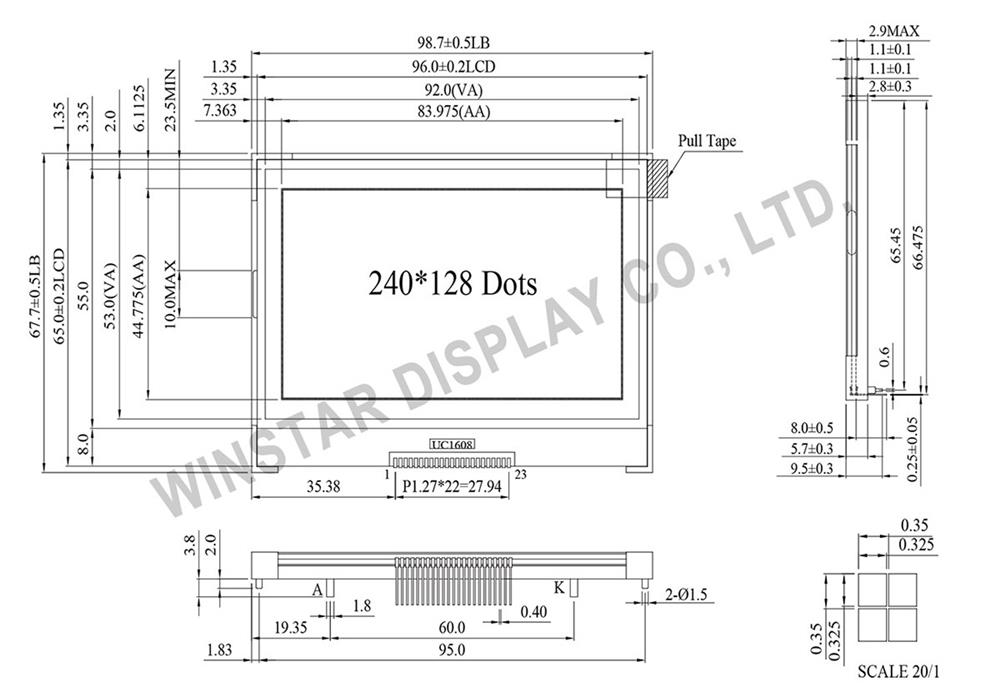

    DRAWING

    COG LCD Display 240x128 - Winstar WO240128A

    SPECIFICATIONS



    Interface Pin Function

    Pin No.SymbolDescription
    1 VB1- DC/DC voltage converter.
    2 VB1+ DC/DC voltage converter.
    3 VB0- DC/DC voltage converter.
    4 VB0+ DC/DC voltage converter.
    5 VLCD Bias voltage levels for LCD driving
    6 VBIAS Contrast Adjustment
    7 VSS Ground
    8 VDD Power supply for logic
    9~16 D7~D0 Data bus line
    17 WR1 8080 family: Read signal, 6800 family: Enable clock
    18 WR0 8080 family: Write signal, 6800 family: Read/Write signal
    19 CD Data/ Instruction select signal
    20 RST Controller reset signal, Active Low
    21 CS Chip select input pins
    22 BM0 Interface selection: "00" : SPI mode , "10" : 8080 mode, "11" : 6800 mode
    23 BM1



    Mechanical Data

    ItemStandard ValueUnit
    Module Dimension 98.7 × 67.7 mm
    Viewing Area 92.0 × 53.0 mm
    Dot Pitch 0.35 × 0.35 mm
    Dot Size 0.325 × 0.325 mm



    Electrical Characteristics

    ItemSymbolStandard value
    typ.
    Unit
    Input Voltage VDD 3.3 V
    Recommended LCD Driving
    Voltage for Normal Temp.
    Version module @25°C
    Vo-Vss 15.5 V


    Products specifications
    Size 3.7"
    Resolution 240x128
    Active Area (mm) 83.97x44.77
    Dot Size 0.32x0.32
    B/L color, LCD type B/L white, STN blue neg
    Power supply 3V
    Display Interface 6800/8080/SPI
    Display IC UC1608
    Constructive Structure COG
    View Angle 6H
    Frame No
    Touch Panel No touch
    O. Temperature (°C) -20~70
    Data Connection Pin Strip
    Pin Nr. 23
    Pin Pitch 1.27mm
    Preferred - Not Preferred Preferred
    *
    *
    *
    *
