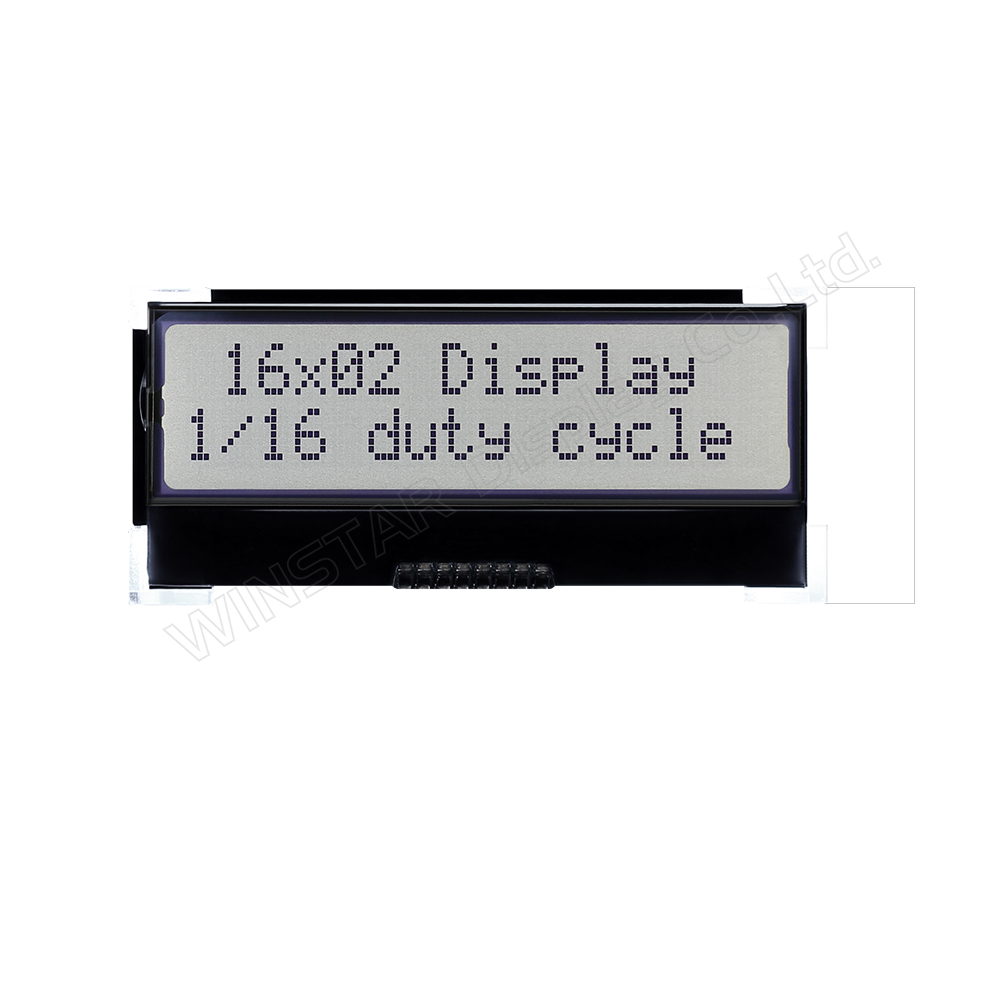

WO1602AT-85HM#FC
WO1602AT-85HM#FC
Character LCD 1.5" 16x2, B/L white, FSTN white pos, Transflective, COG, 3V/5V, Interface I2C, 6 O'clock (IC ST7032Ai)
DESCRIPTION
16x2 COG monochrome LCD display module. This module has the outline dimension 51.2 x 20.7 mm and VA size of 40.0 x 10.0 mm. This series is built-in with ST7032Ai driver and the interface is I2C. This series of modules can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃. Please note that this family is the alternative model for WO1602-xxxI#FC corresponding IC shortage or longer lead-time.

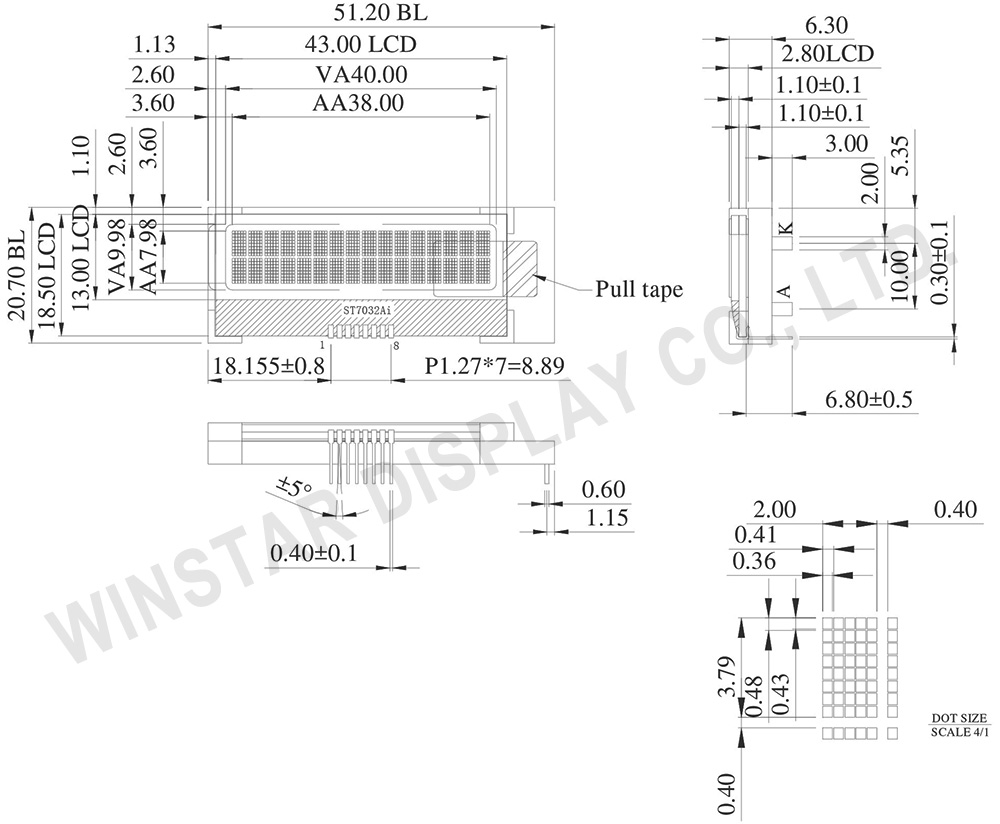

DRAWING
SPECIFICATIONS
Interface Pin Function
Pin No.
Symbol
Description
1
VG
VG is the LCD driving voltage for segment circuits.
VGO is the output of VG regulator. VGS is the feedback of VG regulator.
VGI is the VG input of segment circuits.
1.6 ≤ VG < VDD2.
2
XV0
XV0 is the LCD driving voltage for common circuits at positive frame.
XV0OUT is the output of XV0 regulator. XV0S is the feedback of XV0 regulator.
XV0I is the V0 input of common circuits.
3
V0
V0 is the LCD driving voltage for common circuits at negative frame.
V0OUT is the output of V0 regulator. V0S is the feedback of V0 regulator.
V0I is the V0 input of common circuits.
Be sure that: V0 ≥ VG > VM > VSS ≥ XV0 (under operation).
4
VDD
Power supply input.
5
VSS
Ground
6
SDA
Serial data input
7
SCL
Serial clock input
8
RST
Hardware reset input pin. When RSTB is “L”, internal initialization is executed and the internal registers will be initialized.
Mechanical Data
Item
Dimension
Unit
Number of Characters
16 characters x 2 Lines
-
Module dimension
51.2 x 20.7 x 6.3
mm
View area
40.0 x 10.0
mm
Active area
38.0 x 7.98
mm
Dot size
0.36 x 0.43
mm
Dot pitch
0.41 x 0.48
mm
Character size
2.00 x 3.79
mm
Character pitch
2.40 x 4.19
mm
Duty
1/16 , 1/5 Bias
Backlight Type
LED
IC
ST7032Ai
Interface
I2C
Absolute Maximum Ratings
Item
Symbol
Min
Typ
Max
Unit
Operating Temperature
TOP
-20
-
+70
℃
Storage Temperature
TST
-30
-
+80
℃
Input Voltage
VIN
-0.3
-
VDD+0.3
V
Power Supply Voltage
VDD-VSS
-0.3
-
+4.0
V
LCD Driver Voltage
VLCD
-0.3
-
7.0
V
Electrical Characteristics
Item
Symbol
Condition
Min
Typ
Max
Unit
Supply Voltage For Logic
VDD-VSS
-
2.9
3.0
3.1
V
Supply Voltage For LCD
VOP
Ta=-20℃
Ta=25℃
Ta=70℃
-
4.3
-
-
4.5
-
-
4.7
-
V
V
V
Input High Volt.
VIH
-
0.7 VDD
-
VDD
V
Input Low Volt.
VIL
-
VSS
-
0.3VDD
V
Supply Current (LED backlight is not included)
IDD
-
-
0.16
1.0
mA
SKU:
WO1602AT-85HM#FC
Brand:
Winstar
Available:
Yes
Be the first to review this product
Price Breaks
Quantity
1+
5+
10+
25+
Price
€6.20
€4.60
€4.40
€4.20
For quantities above
25
pcs pls send your enquiry to
[email protected]
or call +39 0332 1888005
€6.20 excl tax
Overview
Specifications
Download
Contact Us
DESCRIPTION
16x2 COG monochrome LCD display module. This module has the outline dimension 51.2 x 20.7 mm and VA size of 40.0 x 10.0 mm. This series is built-in with ST7032Ai driver and the interface is I2C. This series of modules can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃. Please note that this family is the alternative model for WO1602-xxxI#FC corresponding IC shortage or longer lead-time.
DRAWING
SPECIFICATIONS
Interface Pin Function
Pin No.
Symbol
Description
1
VG
VG is the LCD driving voltage for segment circuits.
VGO is the output of VG regulator. VGS is the feedback of VG regulator.
VGI is the VG input of segment circuits.
1.6 ≤ VG < VDD2.
2
XV0
XV0 is the LCD driving voltage for common circuits at positive frame.
XV0OUT is the output of XV0 regulator. XV0S is the feedback of XV0 regulator.
XV0I is the V0 input of common circuits.
3
V0
V0 is the LCD driving voltage for common circuits at negative frame.
V0OUT is the output of V0 regulator. V0S is the feedback of V0 regulator.
V0I is the V0 input of common circuits.
Be sure that: V0 ≥ VG > VM > VSS ≥ XV0 (under operation).
4
VDD
Power supply input.
5
VSS
Ground
6
SDA
Serial data input
7
SCL
Serial clock input
8
RST
Hardware reset input pin. When RSTB is “L”, internal initialization is executed and the internal registers will be initialized.
Mechanical Data
Item
Dimension
Unit
Number of Characters
16 characters x 2 Lines
-
Module dimension
51.2 x 20.7 x 6.3
mm
View area
40.0 x 10.0
mm
Active area
38.0 x 7.98
mm
Dot size
0.36 x 0.43
mm
Dot pitch
0.41 x 0.48
mm
Character size
2.00 x 3.79
mm
Character pitch
2.40 x 4.19
mm
Duty
1/16 , 1/5 Bias
Backlight Type
LED
IC
ST7032Ai
Interface
I2C
Absolute Maximum Ratings
Item
Symbol
Min
Typ
Max
Unit
Operating Temperature
TOP
-20
-
+70
℃
Storage Temperature
TST
-30
-
+80
℃
Input Voltage
VIN
-0.3
-
VDD+0.3
V
Power Supply Voltage
VDD-VSS
-0.3
-
+4.0
V
LCD Driver Voltage
VLCD
-0.3
-
7.0
V
Electrical Characteristics
Item
Symbol
Condition
Min
Typ
Max
Unit
Supply Voltage For Logic
VDD-VSS
-
2.9
3.0
3.1
V
Supply Voltage For LCD
VOP
Ta=-20℃
Ta=25℃
Ta=70℃
-
4.3
-
-
4.5
-
-
4.7
-
V
V
V
Input High Volt.
VIH
-
0.7 VDD
-
VDD
V
Input Low Volt.
VIL
-
VSS
-
0.3VDD
V
Supply Current (LED backlight is not included)
IDD
-
-
0.16
1.0
mA
Products specifications
Brand
Winstar
Size
1.5"
Resolution
16x2
Active Area (mm)
38.00x8.00
Dot Size
0.36x0.43
B/L color, LCD type
B/L white, FSTN white pos
Power supply
3V
Display Interface
I2C
Display IC
ST7032Ai
Constructive Structure
COG
View Angle
6H
Frame
No
O. Temperature (°C)
-20~70
Display Connection
Pin Strip
Pin Nr.
8
Pin Pitch
1.27mm
