    WO12864-86IB1#FC

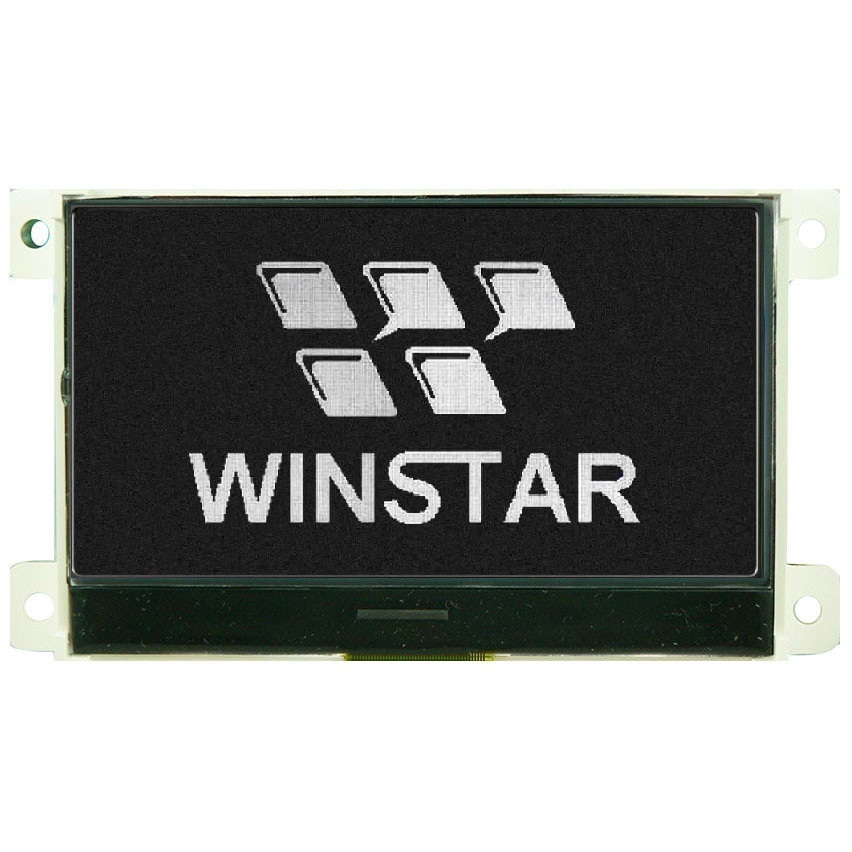

    Graphic LCD 2.8" 128x64, B/L white, FSTN black neg, Transmissive, COG, 3.3V, Interface 6800/8080/SPI, Frame, 6 O'clock (IC ST7565P)
    Manufacturer: Winstar
    SKU: WO12864-86IB1#FC

    Accessory kit

    PRICE BREAKS
    Quantity
    1+
    5+
    10+
    25+
    Price
    €17.10
    €15.40
    €14.50
    €14.10

    For quantities above 49pcs pls send your enquiry to [email protected] or call +39 0332 1888005

    Availability: In stock
    €17.10 excl tax
    i h

    DESCRIPTION

    2.8 inch 128x64 COG monochrome Graphic LCD module. This LCD module is built in with ST7565P controller or equivalent IC.  It supports 6800 8-bit, 8080 8-bit parallel and SPI interface. Operating temperatures from -20℃ to +70℃; storage temperatures range from -30℃ to +80℃.  This display is very suitable for the applications that demand more compact package displays.



    DRAWING



    SPECIFICATIONS

    Interface Pin Function

    Pin No.SymbolDescription
    1 /CS1B This is the chip select signal.
    2 /RES Controller reset signal, Active Low
    3 A0 Data/ Instruction select signal
    4 /WR(R/W) 8080 family: Write signal, 6800 family: Read/Write signal
    5 /RD(E) 8080 family: Read signal, 6800 family: Enable clock
    6~13 D0~D7 Data bus line
    14 VDD Power supply for logic
    15 VSS Ground
    16 Vout Positive Voltage output
    17 CAP3P DC/DC voltage converter.
    18 CAP1N DC/DC voltage converter.
    19 CAP1P DC/DC voltage converter.
    20 CAP2P DC/DC voltage converter.
    21 CAP2N DC/DC voltage converter.
    22~26 V4~ V0 Bias voltage levels for LCD driving
    27 VR LCD Contrast Adjustment when IRS = “L”
    28 C86 Interface selection 6800/8080
    29 P/S Selects the interface type: Serial or Parallel.
    30 NC No connection



    Mechanical Data

    ItemStandard ValueUnit
    Module Dimension 89.7 × 49.8 mm
    Viewing Area 69.0 × 36.5 mm
    Mounting Hole 82.7 × 40.2 mm
    Dot Pitch 0.50 × 0.50 mm
    Dot Size 0.47 × 0.47 mm



    Electrical Characteristics

    ItemSymbolStandard value
    typ.
    Unit
    Input Voltage VDD 3.0 V
    Recommended LCD Driving
    Voltage for Normal Temp.
    Version module @25°C
    Vo-Vss 9.50 V


    Products specifications
    Size 2.8"
    Resolution 128x64
    Active Area (mm) 63.97x31.97
    Dot Size 0.47x0.47
    B/L color, LCD type B/L white, FSTN black neg
    Power supply 3.3V
    Display Interface 6800/8080/SPI
    Display IC ST7565P
    Constructive Structure COG
    View Angle 6H
    Frame Yes
    Touch Panel No touch
    O. Temperature (°C) -20~70
    Data Connection FPC for ZIF Connector
    Pin Nr. 30
    Pin Pitch 0.5mm
    Preferred - Not Preferred Not Preferred
    *
    *
    *
    *
