WO12864-84ID3#FC
WO12864-84ID3#FC

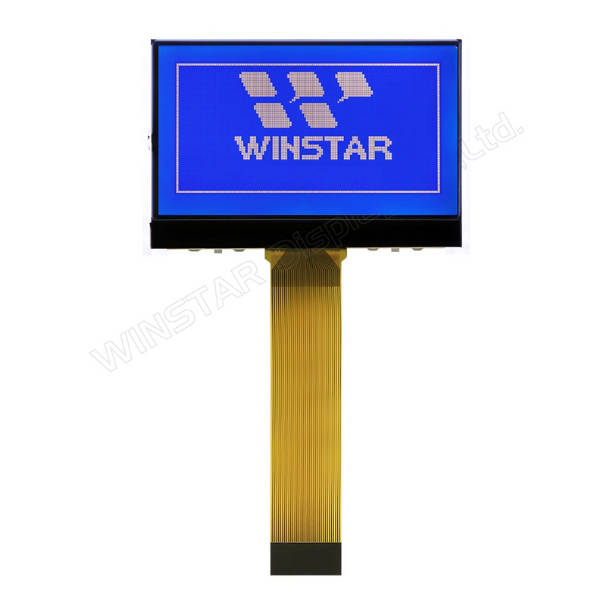

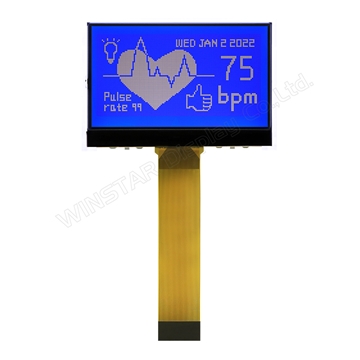

Graphic LCD 2.9" 128x64, B/L white, STN blue neg, Transmissive, COG, 3.3V, Interface 6800/8080/SPI, 6 O'clock (IC ST7565P)

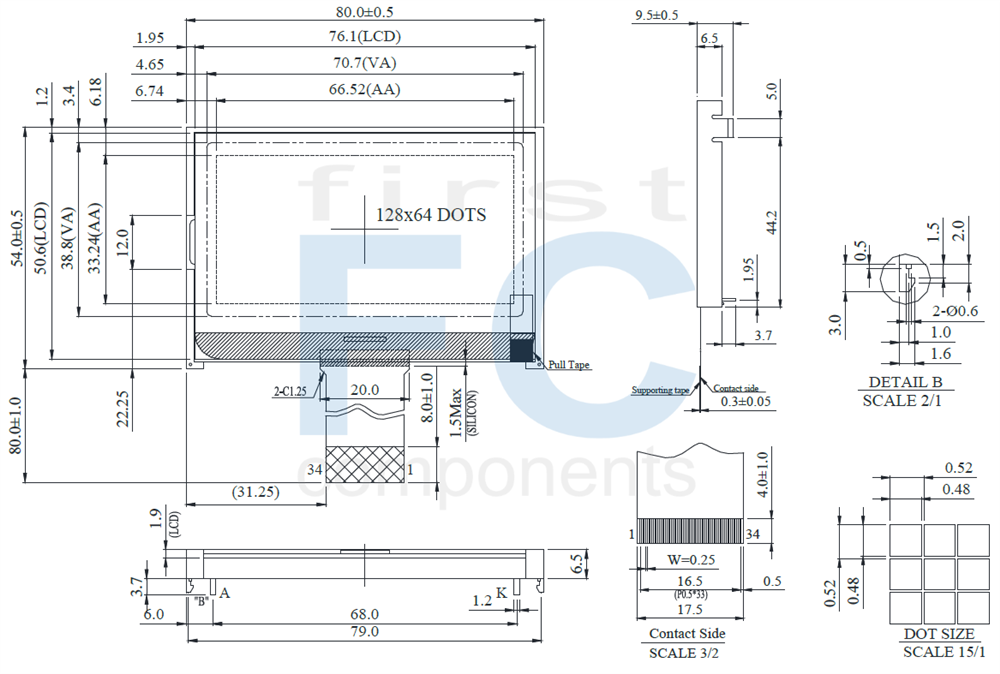

DRAWING
SPECIFICATIONS
Interface Pin Function
Pin No.
Symbol
Level
Description
1
/CS1
I
The chip select signal
2
/RES
I
When RES is set to “L”, the setting are initialized.
3
A0
I
This is connect to the least significant bit of the normal MPU address bus, and it determines whether the data bits are data or command.
A0 = “H”: Indicates that D0 to D7 are display data.
A0 = “L”: Indicates that D0 to D7 are control data.
4
/WR(R/W)
I
• When connected to 8080 series MPU, this pin is treated as the “/WR” signal of the 8080 MPU and is LOW-active.
The signals on the data bus are latched at the rising edge of the /WR signal.
• When connected to 6800 series MPU, this pin is treated as the “R/W” signal of the 6800 MPU and decides the access type :
When R/W = “H”: Read.
When R/W = “L”: Write.
5
/RD(E)
I
• When connected to 8080 series MPU, this pin is treated as the “/RD” signal of the 8080 MPU and is LOW-active.
The data bus is in an output status when this signal is “L”.
• When connected to 6800 series MPU, this pin is treated as the “E” signal of the 6800 MPU and is HIGH-active.
This is the enable clock input terminal of the 6800 Series MPU.
6~13
D0~D7
I/O
Data bus line
14
VDD
Power
Supply
Power supply
15
VSS
Power
Supply
Ground
16
VOUT
O
DC/DC voltage converter. Connect a capacitor between this terminal and vss or VDD
17
CAP5+
O
DC/DC voltage converter
18
CAP3+
19
CAP1-
20
CAP1+
21
CAP2+
22
CAP2-
23
CAP4+
24
VRS
Power
Supply
This is the internal-output VREG power supply for the LCD power supply voltage
regulator.
25
V4
Power
Supply
This is a multi-level power supply for the liquid crystal drive.
26
V3
27
V2
28
V1
29
V0
30
VR
I
Output voltage regulator terminal. Provides the voltage between VSS and V0 through a resistive voltage divider.
IRS = “L” : the V0 voltage regulator internal resistors are not used.
IRS = “H” : the V0 voltage regulator internal resistors are used.
31
C86
I
This is the MPU interface selection pin.
C86 = “H”: 6800 Series MPU interface.
C86 = “L”: 8080 Series MPU interface
32
P/S
I
This is the parallel data input/serial data input switch terminal.
P/S = “H”: Parallel data input.
P/S = “L”: Serial data input.
The following applies depending on the P/S status:
P/S
Data/Command
Data
Read/Write
Serial Clock
"H"
A0
D0 to D7
/RD,/WR
X
"L"
A0
SI(D7)
Write only
SCL(D6)
When P/S = “L”, D0 to D5 fixed “H”.
/RD (E) and /WR (R/W) are fixed to either “H” or “L”.
With serial data input, It is impossible read data from RAM
33
/HPM
I
This is the power control terminal for the power supply circuit for liquid crystal drive.
/HPM = “H”: Normal mode
/HPM = “L”: High power mode
34
IRS
I
This terminal selects the resistors for the V0 voltage level adjustment.
IRS = “H”: Use the internal resistors
IRS = “L”: Do not use the internal resistors. The V0 voltage level is
regulated by an external resistive voltage divider attached to the VR terminal
Mechanical Data
Item
Dimension
Unit
Number of Dots
128 x 64
-
Module dimension
80.0 x 54.0 x 9.5
mm
View area
70.7 x 38.8
mm
Active area
66.52 x 33.24
mm
Dot size
0.48 x 0.48
mm
Dot pitch
0.52 x 0.52
mm
Duty
1/64 , 1/9 Bias
Backlight Type
LED
IC
ST7565P
Interface
6800/8080/4-Line SPI
Absolute Maximum Ratings
Item
Symbol
Min
Typ
Max
Unit
Operating Temperature
TOP
-20
-
+70
℃
Storage Temperature
TST
-30
-
+80
℃
Power Supply Voltage
VDD
-0.3
-
3.6
V
Power supply voltage (VDD standard)
V0,VOUT
-0.3
-
14.5
V
Power supply voltage (VDD standard)
V1,V2,V3,V4
-0.3
-
V0+0.3
V
Electrical Characteristics
Item
Symbol
Condition
Min
Typ
Max
Unit
Supply Voltage For Logic
VDD-VSS
-
2.7
-
3.3
V
Supply Voltage For LCM
V0-VSS
Ta=-20℃
Ta=25℃
Ta=70℃
10.0
9.8
9.6
10.2
10.0
9.8
10.4
10.2
10.0
V
V
V
Input High Volt.
VIH
-
0.8 VDD
-
VDD
V
Input Low Volt.
VIL
-
VSS
-
0.2VDD
V
Output High Volt.
VOH
-
0.8VDD
-
VDD
V
Output Low Volt.
VOL
-
VSS
-
0.2VDD
V
Supply Current(No include LED Backlight)
IDD
-
-
0.6
1.0
mA
SKU:
WO12864-84ID3#FC
Brand:
Winstar
Available:
No
Be the first to review this product
Accessory Kit
Display Connector
-- Details Below in 'Related Products' --
CNQ5231XXXXXXXXXXX00 [+€2.80]
MOLEX_54104-3433 [+€2.70]
MOLEX_54132-3433 [+€2.60]
Touch-Panel Connector
-- Details Below in 'Related Products' --
CN36531XXXXXXXXXXX01 [+€2.80]
Touch-Panel
-- Details Below in 'Related Products' --
NVRTP300#R000 [+€5.10]
Added Board
-- Details Below in 'Related Products' --
SW101286400C0XXN0100 [+€3.60]
Price Breaks
Quantity
1+
5+
10+
25+
Price
€14.30
€10.50
€10.10
€9.80
For quantities above
25
pcs pls send your enquiry to
[email protected]
or call +39 0332 1888005
€14.30 excl tax

Overview
Specifications
Download
Contact Us
DRAWING
SPECIFICATIONS
Interface Pin Function
Pin No.
Symbol
Level
Description
1
/CS1
I
The chip select signal
2
/RES
I
When RES is set to “L”, the setting are initialized.
3
A0
I
This is connect to the least significant bit of the normal MPU address bus, and it determines whether the data bits are data or command.
A0 = “H”: Indicates that D0 to D7 are display data.
A0 = “L”: Indicates that D0 to D7 are control data.
4
/WR(R/W)
I
• When connected to 8080 series MPU, this pin is treated as the “/WR” signal of the 8080 MPU and is LOW-active.
The signals on the data bus are latched at the rising edge of the /WR signal.
• When connected to 6800 series MPU, this pin is treated as the “R/W” signal of the 6800 MPU and decides the access type :
When R/W = “H”: Read.
When R/W = “L”: Write.
5
/RD(E)
I
• When connected to 8080 series MPU, this pin is treated as the “/RD” signal of the 8080 MPU and is LOW-active.
The data bus is in an output status when this signal is “L”.
• When connected to 6800 series MPU, this pin is treated as the “E” signal of the 6800 MPU and is HIGH-active.
This is the enable clock input terminal of the 6800 Series MPU.
6~13
D0~D7
I/O
Data bus line
14
VDD
Power
Supply
Power supply
15
VSS
Power
Supply
Ground
16
VOUT
O
DC/DC voltage converter. Connect a capacitor between this terminal and vss or VDD
17
CAP5+
O
DC/DC voltage converter
18
CAP3+
19
CAP1-
20
CAP1+
21
CAP2+
22
CAP2-
23
CAP4+
24
VRS
Power
Supply
This is the internal-output VREG power supply for the LCD power supply voltage
regulator.
25
V4
Power
Supply
This is a multi-level power supply for the liquid crystal drive.
26
V3
27
V2
28
V1
29
V0
30
VR
I
Output voltage regulator terminal. Provides the voltage between VSS and V0 through a resistive voltage divider.
IRS = “L” : the V0 voltage regulator internal resistors are not used.
IRS = “H” : the V0 voltage regulator internal resistors are used.
31
C86
I
This is the MPU interface selection pin.
C86 = “H”: 6800 Series MPU interface.
C86 = “L”: 8080 Series MPU interface
32
P/S
I
This is the parallel data input/serial data input switch terminal.
P/S = “H”: Parallel data input.
P/S = “L”: Serial data input.
The following applies depending on the P/S status:
P/S
Data/Command
Data
Read/Write
Serial Clock
"H"
A0
D0 to D7
/RD,/WR
X
"L"
A0
SI(D7)
Write only
SCL(D6)
When P/S = “L”, D0 to D5 fixed “H”.
/RD (E) and /WR (R/W) are fixed to either “H” or “L”.
With serial data input, It is impossible read data from RAM
33
/HPM
I
This is the power control terminal for the power supply circuit for liquid crystal drive.
/HPM = “H”: Normal mode
/HPM = “L”: High power mode
34
IRS
I
This terminal selects the resistors for the V0 voltage level adjustment.
IRS = “H”: Use the internal resistors
IRS = “L”: Do not use the internal resistors. The V0 voltage level is
regulated by an external resistive voltage divider attached to the VR terminal
Mechanical Data
Item
Dimension
Unit
Number of Dots
128 x 64
-
Module dimension
80.0 x 54.0 x 9.5
mm
View area
70.7 x 38.8
mm
Active area
66.52 x 33.24
mm
Dot size
0.48 x 0.48
mm
Dot pitch
0.52 x 0.52
mm
Duty
1/64 , 1/9 Bias
Backlight Type
LED
IC
ST7565P
Interface
6800/8080/4-Line SPI
Absolute Maximum Ratings
Item
Symbol
Min
Typ
Max
Unit
Operating Temperature
TOP
-20
-
+70
℃
Storage Temperature
TST
-30
-
+80
℃
Power Supply Voltage
VDD
-0.3
-
3.6
V
Power supply voltage (VDD standard)
V0,VOUT
-0.3
-
14.5
V
Power supply voltage (VDD standard)
V1,V2,V3,V4
-0.3
-
V0+0.3
V
Electrical Characteristics
Item
Symbol
Condition
Min
Typ
Max
Unit
Supply Voltage For Logic
VDD-VSS
-
2.7
-
3.3
V
Supply Voltage For LCM
V0-VSS
Ta=-20℃
Ta=25℃
Ta=70℃
10.0
9.8
9.6
10.2
10.0
9.8
10.4
10.2
10.0
V
V
V
Input High Volt.
VIH
-
0.8 VDD
-
VDD
V
Input Low Volt.
VIL
-
VSS
-
0.2VDD
V
Output High Volt.
VOH
-
0.8VDD
-
VDD
V
Output Low Volt.
VOL
-
VSS
-
0.2VDD
V
Supply Current(No include LED Backlight)
IDD
-
-
0.6
1.0
mA
Products specifications
Brand
Winstar
Size
2.9"
Resolution
128x64
Active Area (mm)
66.52x33.24
Dot Size
0.48x0.48
B/L color, LCD type
B/L white, STN blue neg
Power supply
3.3V
Display Interface
6800/8080/SPI
Display IC
ST7565P
Constructive Structure
COG
View Angle
6H
Frame
No
Touch Panel
No touch
O. Temperature (°C)
-20~70
Display Connection
FPC for ZIF Connector
Pin Nr.
34
Pin Pitch
0.5mm
