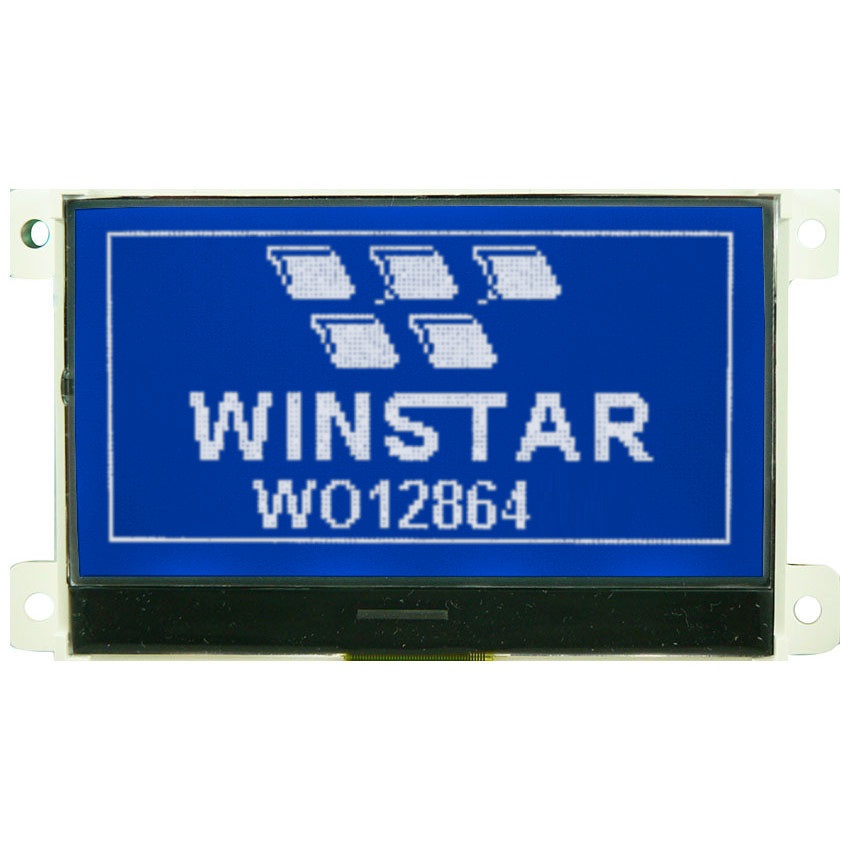

WO12864-84IB1#FC
WO12864-84IB1#FC
Graphic LCD 2.8" 128x64, B/L white, STN blue neg, Transmissive, COG, 3.3V, Interface 6800/8080/SPI, Frame, 6 O'clock (IC ST7565P)
DESCRIPTION
2.8 inch 128x64 COG monochrome Graphic LCD module. This LCD module is built in with ST7565P controller or equivalent IC. It supports 6800 8-bit, 8080 8-bit parallel and SPI interface. Operating temperatures from -20℃ to +70℃; storage temperatures range from -30℃ to +80℃. This display is very suitable for the applications that demand more compact package displays.
DRAWING
SPECIFICATIONS
Interface Pin Function
Pin No.
Symbol
Description
1
/CS1B
This is the chip select signal.
2
/RES
Controller reset signal, Active Low
3
A0
Data/ Instruction select signal
4
/WR(R/W)
8080 family: Write signal, 6800 family: Read/Write signal
5
/RD(E)
8080 family: Read signal, 6800 family: Enable clock
6~13
D0~D7
Data bus line
14
V
DD
Power supply for logic
15
V
SS
Ground
16
Vout
Positive Voltage output
17
CAP3P
DC/DC voltage converter.
18
CAP1N
DC/DC voltage converter.
19
CAP1P
DC/DC voltage converter.
20
CAP2P
DC/DC voltage converter.
21
CAP2N
DC/DC voltage converter.
22~26
V4~ V0
Bias voltage levels for LCD driving
27
VR
LCD Contrast Adjustment when IRS = “L”
28
C86
Interface selection 6800/8080
29
P/S
Selects the interface type: Serial or Parallel.
30
NC
No connection
Mechanical Data
Item
Standard Value
Unit
Module Dimension
89.7 × 49.8
mm
Viewing Area
69.0 × 36.5
mm
Mounting Hole
82.7 × 40.2
mm
Dot Pitch
0.50 × 0.50
mm
Dot Size
0.47 × 0.47
mm
Electrical Characteristics
Item
Symbol
Standard value
typ.
Unit
Input Voltage
VDD
3.0
V
Recommended LCD Driving
Voltage for Normal Temp.
Version module @25°C
Vo-Vss
9.50
V
SKU:
WO12864-84IB1#FC
Brand:
Winstar
Available:
Yes
Be the first to review this product
Accessory Kit
Display Connector
-- Details Below in 'Related Products' --
MOLEX_502790-3091 [+€4.50]
CNN5231XXXXXXXXXXX00 [+€2.80]
Touch-Panel Connector
-- Details Below in 'Related Products' --
CN36531XXXXXXXXXXX01 [+€2.80]
Touch-Panel
-- Details Below in 'Related Products' --
TSO012864B1141XXXX01 [+€9.90]
Added Board
-- Details Below in 'Related Products' --
SW101286400B0XXN0100 [+€3.60]
Price Breaks
Quantity
1+
5+
10+
25+
Price
€15.10
€11.10
€10.70
€10.30
For quantities above
25
pcs pls send your enquiry to
[email protected]
or call +39 0332 1888005
€15.10 excl tax
Overview
Specifications
Download
Contact Us
DESCRIPTION
2.8 inch 128x64 COG monochrome Graphic LCD module. This LCD module is built in with ST7565P controller or equivalent IC. It supports 6800 8-bit, 8080 8-bit parallel and SPI interface. Operating temperatures from -20℃ to +70℃; storage temperatures range from -30℃ to +80℃. This display is very suitable for the applications that demand more compact package displays.
DRAWING
SPECIFICATIONS
Interface Pin Function
Pin No.
Symbol
Description
1
/CS1B
This is the chip select signal.
2
/RES
Controller reset signal, Active Low
3
A0
Data/ Instruction select signal
4
/WR(R/W)
8080 family: Write signal, 6800 family: Read/Write signal
5
/RD(E)
8080 family: Read signal, 6800 family: Enable clock
6~13
D0~D7
Data bus line
14
V
DD
Power supply for logic
15
V
SS
Ground
16
Vout
Positive Voltage output
17
CAP3P
DC/DC voltage converter.
18
CAP1N
DC/DC voltage converter.
19
CAP1P
DC/DC voltage converter.
20
CAP2P
DC/DC voltage converter.
21
CAP2N
DC/DC voltage converter.
22~26
V4~ V0
Bias voltage levels for LCD driving
27
VR
LCD Contrast Adjustment when IRS = “L”
28
C86
Interface selection 6800/8080
29
P/S
Selects the interface type: Serial or Parallel.
30
NC
No connection
Mechanical Data
Item
Standard Value
Unit
Module Dimension
89.7 × 49.8
mm
Viewing Area
69.0 × 36.5
mm
Mounting Hole
82.7 × 40.2
mm
Dot Pitch
0.50 × 0.50
mm
Dot Size
0.47 × 0.47
mm
Electrical Characteristics
Item
Symbol
Standard value
typ.
Unit
Input Voltage
VDD
3.0
V
Recommended LCD Driving
Voltage for Normal Temp.
Version module @25°C
Vo-Vss
9.50
V
Products specifications
Brand
Winstar
Size
2.8"
Resolution
128x64
Active Area (mm)
63.97x31.97
Dot Size
0.47x0.47
B/L color, LCD type
B/L white, STN blue neg
Power supply
3.3V
Display Interface
6800/8080/SPI
Display IC
ST7565P
Constructive Structure
COG
View Angle
6H
Frame
Yes
Touch Panel
No touch
O. Temperature (°C)
-20~70
Display Connection
FPC for ZIF Connector
Pin Nr.
30
Pin Pitch
0.5mm
Preferred - Not Preferred
Not Preferred
Download
Log in
or
Register
to downloads PDF.
Your name
Your email
Enquiry
Products specifications
Brand
Winstar
Size
2.8"
Resolution
128x64
Active Area (mm)
63.97x31.97
Dot Size
0.47x0.47
B/L color, LCD type
B/L white, STN blue neg
Power supply
3.3V
Display Interface
6800/8080/SPI
Display IC
ST7565P
Constructive Structure
COG
View Angle
6H
Frame
Yes
Touch Panel
No touch
O. Temperature (°C)
-20~70
Display Connection
FPC for ZIF Connector
Pin Nr.
30
Pin Pitch
0.5mm
Preferred - Not Preferred
Not Preferred
Related products
CNN5231XXXXXXXXXXX00
ZIF Connector 30 pins, 0.5mm pitch, Top contact
From €2.40 excl tax
MOLEX_502790-3091
ZIF Connector 30 pins, 0.5mm pitch, Bottom contact
From €3.00 excl tax
TSO012864B1141XXXX01
Resistive Touch panel 2.8", O.D. 47.29x73.25mm, 4w, Film-Glass structure, FPC per ZIF Connector
From €6.80 excl tax
SW101286400B0XXN0100
Adapter Board for Graphic COG LCD WO12864B / WO12864B1#FC families
From €2.70 excl tax
CN36531XXXXXXXXXXX01
ZIF Connector 4 pins, 1mm pitch, Bottom contact
From €2.40 excl tax

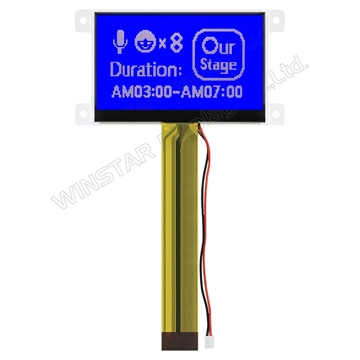

WO12864-84IN#FC
