WO12864-43HC2#000-FC

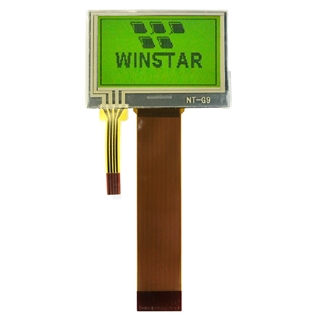

Picture of WO12864-43HC2#000-FC Picture of WO12864-43HC2#000-FC
Graphic LCD 1.9" 128x64, B/L yellow/green, STN yellow/green pos, Transflective, COG, 3.3V, Interface 6800/8080/SPI, 6 O'clock, Resistive touch panel (IC ST7565P)

MOQ

After sample PO, MP COG MOQ 500pcs, Touch panel MOQ 1500pcs



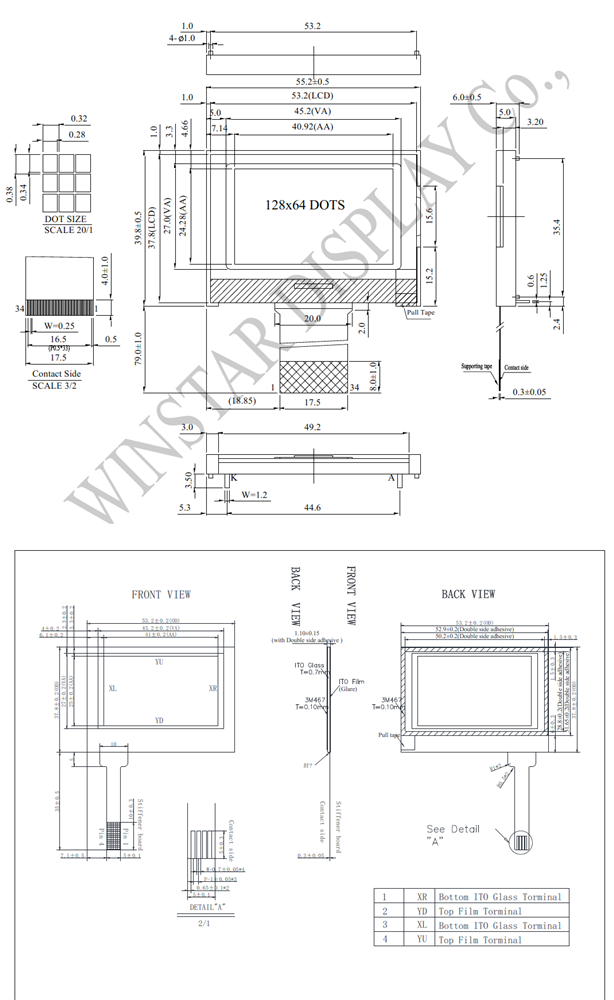

DRAWING

SPECIFICATIONS

Interface Pin Function

Pin No.SymbolDescription
1 IRS Selects the resistors for the V0 voltage level adjustment
2 /HPM Control power supply for LCD “H”: Normal mode, “L”: High power mode
3 P/S Selects the interface type: Serial or Parallel.
4 C86 Interface selection 6800/8080
5 VR LCD Contrast Adjustment when IRS = “L”
6~10 V0~V4 Bias voltage levels for LCD driving
11 VRS This is the internal-output VREG power supply for the LCD power supply voltage regulator.
12 CAP4+ DC/DC voltage converter.
13 CAP2- DC/DC voltage converter.
14 CAP2+ DC/DC voltage converter.
15 CAP1+ #N/A
16 CAP1- DC/DC voltage converter.
17 CAP3+ DC/DC voltage converter.
18 CAP5+ DC/DC voltage converter
19 Vout Positive Voltage output
20 VSS Ground
21 VDD Power supply for logic
22~29 D7~D0 #N/A
30 /RD(E) 8080 family: Read signal, 6800 family: Enable clock
31 /WR(RW) 8080 family: Write signal, 6800 family: Read/Write signal
32 A0 Data/ Instruction select signal
33 /RES Controller reset signal, Active Low
34 /CS1 This is the chip select signal.



Mechanical Data

ItemStandard ValueUnit
Module Dimension 55.2 × 39.8 mm
Viewing Area 45.2 × 27.0 mm
Dot Pitch 0.32 × 0.38 mm
Dot Size 0.28 × 0.34 mm



Electrical Characteristics

ItemSymbolStandard value
typ.		Unit
Input Voltage VDD 3.0 V
Recommended LCD Driving
Voltage for Normal Temp.
Version module @25°C		 Vo-Vss 9.60 V


SKU: WO12864-43HC2#000-FC
Brand: Winstar
Available: Yes
Be the first to review this product
Accessory Kit
Price Breaks
Quantity
1+
5+
Price
€14.20
€10.40

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€14.20 excl tax

MOQ

After sample PO, MP COG MOQ 500pcs, Touch panel MOQ 1500pcs



DRAWING

SPECIFICATIONS

Interface Pin Function

Pin No.SymbolDescription
1 IRS Selects the resistors for the V0 voltage level adjustment
2 /HPM Control power supply for LCD “H”: Normal mode, “L”: High power mode
3 P/S Selects the interface type: Serial or Parallel.
4 C86 Interface selection 6800/8080
5 VR LCD Contrast Adjustment when IRS = “L”
6~10 V0~V4 Bias voltage levels for LCD driving
11 VRS This is the internal-output VREG power supply for the LCD power supply voltage regulator.
12 CAP4+ DC/DC voltage converter.
13 CAP2- DC/DC voltage converter.
14 CAP2+ DC/DC voltage converter.
15 CAP1+ #N/A
16 CAP1- DC/DC voltage converter.
17 CAP3+ DC/DC voltage converter.
18 CAP5+ DC/DC voltage converter
19 Vout Positive Voltage output
20 VSS Ground
21 VDD Power supply for logic
22~29 D7~D0 #N/A
30 /RD(E) 8080 family: Read signal, 6800 family: Enable clock
31 /WR(RW) 8080 family: Write signal, 6800 family: Read/Write signal
32 A0 Data/ Instruction select signal
33 /RES Controller reset signal, Active Low
34 /CS1 This is the chip select signal.



Mechanical Data

ItemStandard ValueUnit
Module Dimension 55.2 × 39.8 mm
Viewing Area 45.2 × 27.0 mm
Dot Pitch 0.32 × 0.38 mm
Dot Size 0.28 × 0.34 mm



Electrical Characteristics

ItemSymbolStandard value
typ.		Unit
Input Voltage VDD 3.0 V
Recommended LCD Driving
Voltage for Normal Temp.
Version module @25°C		 Vo-Vss 9.60 V


Products specifications
Brand Winstar
Size 1.9"
Resolution 128x64
Active Area (mm) 40.92x24.28
Dot Size 0.28x0.34
B/L color, LCD type B/L yellow/green, STN yellow/green pos
Power supply 3.3V
Display Interface 6800/8080/SPI
Display IC ST7565P
Constructive Structure COG
View Angle 6H
Frame No
Touch Panel Resistive
O. Temperature (°C) -20~70
Display Connection FPC for ZIF Connector
Pin Nr. 34
Pin Pitch 0.5mm
Preferred - Not Preferred Not Preferred
Download
Products specifications
Brand Winstar
Size 1.9"
Resolution 128x64
Active Area (mm) 40.92x24.28
Dot Size 0.28x0.34
B/L color, LCD type B/L yellow/green, STN yellow/green pos
Power supply 3.3V
Display Interface 6800/8080/SPI
Display IC ST7565P
Constructive Structure COG
View Angle 6H
Frame No
Touch Panel Resistive
O. Temperature (°C) -20~70
Display Connection FPC for ZIF Connector
Pin Nr. 34
Pin Pitch 0.5mm
Preferred - Not Preferred Not Preferred
