WL0F00101000JGAADSA00-FC

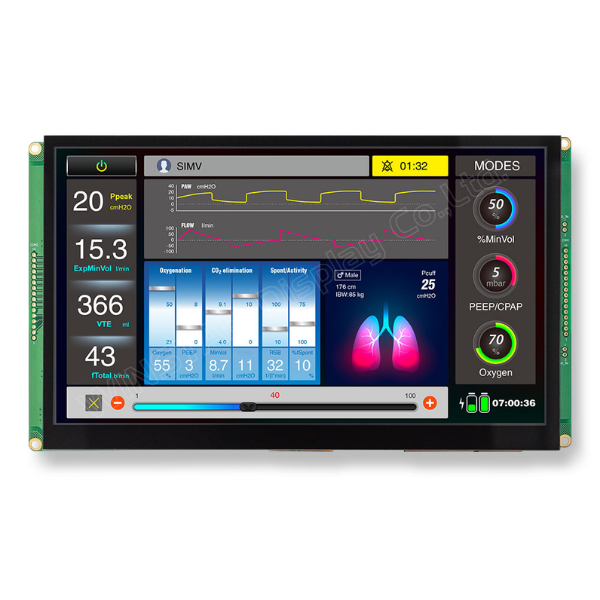

Picture of WL0F00101000JGAADSA00-FC Picture of WL0F00101000JGAADSA00-FC
TFT 10.1" 1024x600, CAN Bus interface CANopen, 400cd/m², Wide View Angle (IPS), Capacitive touch panel (GG) (New Model)

DESCRIPTION

WL0F00101000JGAADSA00-FC model is a 10.1 inch Smart Display CAN series TFT display which is running CANopen protocol via CAN bus command to render display content on the screen and return touch event data with protocol objects. WL0F00101000JGAADSA00-FC model is integrated with a standard 10.1 inch IPS TFT module WF101-1024600JL#0P8-FC and a 4-layers PCBA with built-in firmware code which is developed by WINSTAR RD team. This 10.1" Smart Display CAN series TFT is an easy-to-use product which allows customers to their own UI without writing a line of code in cost-effective way. This 10.1” Smart Display can use computer with USB2CAN dongle or Raspberry Pi (+PiCAN2) or even MCU scale like Arduino(+CAN adaptor) as HOST platform. WINSTAR already developed Windows Apps (GUI & GUI Builder) for Smart Display GUI design. WINSTAR GUI builder software is designed for customers to simulate their UI design in advance by using the drag-and-drop Widget preview function; furthermore, customers can create their ideal UI objects by themselves using this software then go simulation to check UI design without hardware module. WINSTAR GUI builder software is supporting Windows system only; it can fulfill What You See Is What You Get (WYSIWYG).

WINSTAR Smart Display CAN Series is really a "smart" choice for customers. There are many important features and functions for this new released 10.1" smart display CAN TFT as below:

  • +12V power supply input, the power consumption is around 6W.
  • Self testing after booting function
  • CAN bus communication Interface
  • Supports CANopen protocol. Default baud rate is at 250KB.
  • Built in 16MB flash memory, store the font and Object Dictionary Data
  • Supports projected capacitive touch screen (PCAP)
  • Embedded buzzer controlled by Master Device.
  • Demo set HOST can be used on multiple platforms, such as Computer (with USB to CAN Dongle), MCU, Raspberry Pi (with PiCAN2).
  • Design the UI without writing a line of code by WINSTAR GUI builder! (►Link to GUI Builder Introduction)
  • Designed with STM32F series MCU and Support STMicroelectronics' (ST) software development tools.

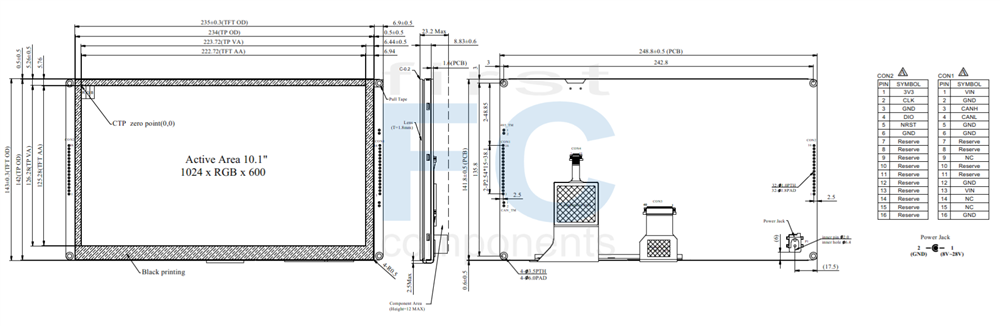

DRAWING

SPECIFICATIONS

General Information

ItemStandard ValueUnit
Operating voltage 8V~28V dynamic Vdc
Communication Interface CAN bus -
MCU STM32F746 N/A
Flash Memory 16 MB
LCD display size 10.1 inch
Dot Matrix 1024 x RGB x 600(TFT) dots
Module dimension 248.8(W) x 143(H) x 23.2(D) mm
Active area 222.72 (H) x 125.28(V) mm
Pixel pitch 0.2175(W) x 0.2088(H) mm
Brightness Min: 300; Typ: 400
LCD type LED, Normally Black, Transmissive
View Direction 85/85/85/85
Aspect Ratio 16:9
Touch Panel Projected Capacitive Touch Panel (PCAP)
Surface Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 － +70 ℃
Storage Temperature TST -30 － +80 ℃



Electrical Characteristics

ItemSymbolConditionMinTypMaxUnit
Supply Voltage VCC － 8 12 28 V
Supply LCM current I(mA) － － 550 － mA



BOM

ItemDescription
LCM WF101-1024600JL#0P8-FC
PCBA SV10010R100JC00N0100




Interface Pin Function

CON1 definition

PinSymbolFunctionRemark
1 VIN Power supply 8V to 28V input Input
2 GND Power supply GND input Input
3 CANH CAN bus D+ I/O
4 CANL CAN bus D- I/O
5 GND Power supply GND input GND
6 GND Power supply GND input GND
7 Reserve USB_D- Reserve
8 Reserve USB_D+ Reserve
9 NC - -
10 Reserve USART RX interface(Reserve) Reserve
11 Reserve USART TX interface(Reserve) Reserve
12 GND Power supply GND input GND
13 VIN Power supply 8V to 28V input Input
14 NC - -
15 NC - -
16 GND Power supply GND input Input


CON2 definition

PinSymbolFunctionRemark
1 3V3 3.3V power for JTAG interface Output
2 CLK CLK pin for JTAG interface Input
3 GND GND for JTAG interface Output
4 DIO Data pin for JTAG interface I/O
5 NRST Reset pin for JTAG interface Input
6 GND GND Output
7 Reserve (PA0) for system Resume
from suspend (Reserve)		 WKup,ADC,Timer,Event,I/O
8 Reserve Reset (active Low) I
9 Reserve IO_0 ADC,DAC,Timer,Event,I/O
10 Reserve IO_1 ADC,Timer,Event,I/O
11 Reserve IO_2 ADC,Timer,Event,I/O
12 Reserve IO_3 RST,Timer,Event,I/O
13 Reserve IO_4 RST,Timer,Event,I/O
14 Reserve IO_5 ADC,Timer,Event,I/O
15 Reserve IO_6 RST,Timer,Event,I/O
16 Reserve IO_7 RST,ADC,Event,I/O

Display Usage

Functional description

Smart Display can be used to display the coordinate, status and data information provided by the connected HOST device. Customers can configure the position coordinates they want to display in normal operation mode. The Display is designed to be easily connected to a controller network, and to operate with minimum setup or knowledge of the SDO configuration on the controllers.


Splash Screen

The default splash image is shown below.

Splash Screen - Winstar Can Display, Smart Display
This product is produced as a generic product. If you require a custom splash image for your application, contact us to discuss.


Acquisition of Displayed Data

The Smart Display can acquire the data that it displays either using the CANopen SDO protocol, or using the CANopen PDO protocol. On Pre-operational mode, customers can set the coordinates of objects through SDO; On operational mode, customers can send data of objects through PDO.


Configuring the Display

Winstar Smart Display CAN series offers an out-of-the-box CANopen development experience that will lower customers' development costs and speed time-to-market expectations. The Smart Display can use wide-temperature are designed to support control applications in harsh operating conditions, which designed to be connected to a variety of different situation combinations, such as automotive, marine, power generation and oil-and-gas. The Smart Display comes with standard UI objects to get customers project off the ground quickly. If customers need custom UI objects support, our engineers are here to help. Send over your contents in PNG/JPG format, we will send over a new set of UI objects within 3~5 working days. The Smart Display is defined as a slave device, which is controlled by master device via CAN bus command to render display content on the display screen and return touch event data with protocol objects.
SKU: WL0F00101000JGAADSA00-FC
Brand: Winstar
Available: No
Be the first to review this product
Price Breaks
Quantity
1+
5+
10+
Price
€171.50
€163.10
€154.60

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€171.50 excl tax
