WL0F0007000A8GXACSA00-FC

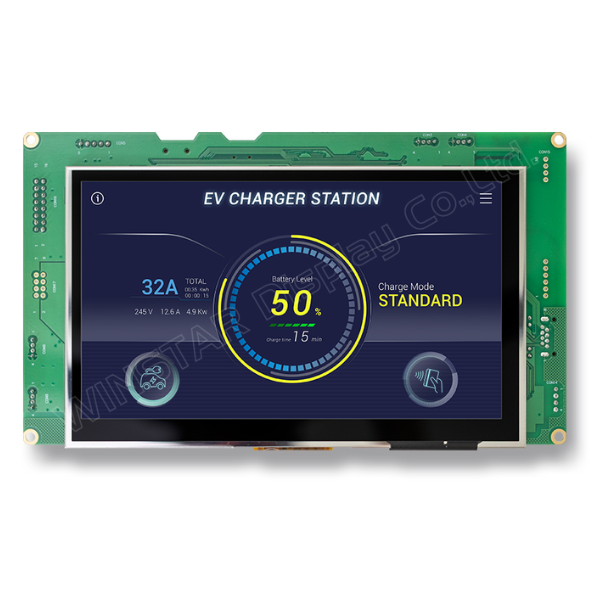

Picture of WL0F0007000A8GXACSA00-FC Picture of WL0F0007000A8GXACSA00-FC
TFT 7" 1024x600, Multi-Interface Development System, High Brightness 850cd/m², Wide View Angle (IPS), Capacitive touch panel (GG)

DESCRIPTION

    Link to 'SMART GUI BLIDER' INTRODUCTION & VIDEO

WINSTAR proudly presents the Development Board (WL0F0007000A8GXACSA00-FC), a versatile HMI display platform designed to accelerate product development and simplifies system integration. Designed for industrial automation, automotive, and advanced HMI applications, this all-in-one solution reduces development cycles, simplifies hardware selection, and enables a seamless path from prototype to production.



Why Choose WINSTAR Development Board?

  • Technical Support — We offer assistance with technical inquiries and provide relevant resources to support your development process. (may subject to potential NRE costs).
  • Rapid Prototyping & Proof of Concept — Get started immediately with a production-grade display and MCU platform integrated, ready for hands-on development.
  • Shortened Development Cycles — Extensive interfaces and onboard resources reduce integration time and speed up development.
  • Simplified Supply Chain — A fully integrated, customizable solution cuts down vendor management and streamlines production.
  • Effortless Transition to Production — WINSTAR's team supports you from early prototyping through mass production by removing unneeded connectors/functions to create a cost-optimized, production-ready module.



Exceptional Processing Power & Display Quality

  • STM32H747 Dual-Core MCU: features dual-core Cortex®-M7 and Cortex®-M4 processors for superior multitasking and graphical UI performance.
  • 7.0" TFT Display (WF70-1024600A8L#BP3-FC): High-brightness (850 nits) ensures readability in outdoor or harsh lighting.
  • PCAP Touch Panel: Projected capacitive touchscreen offers a responsive, modern user experience.



Comprehensive Interfaces

The board offers a rich suite of industrial-standard communication interfaces, including:

  • RS485 ×2 (2.0mm, 4 pins w/ power)
  • RS232 (2.54mm, 5 pins), UART ×2 (1.25mm, 3 pins)
  • CAN FD ×2 (2.0mm, 4 pins w/ power)
  • I²C ×2 (1.25mm, 3 pins), SPI
  • USB Type-C
  • Ethernet (RJ45)
  • MicroSD Card Slot



Rich Onboard Features & Power Support

  • 16MB Onboard Flash Memory – Ideal for storing fonts, images, and UI data; optimized for ST's TouchGFX GUI framework.
  • 16 GPIO Pins (2.54mm pitch) – Configurable as input/output for custom functions and external device control.
  • Integrated Buzzer – For audible feedback and system alerts.
  • 3 x Push Buttons – For reset and user-defined functions.
  • Status LEDs – Indicate power and SWD debugging activity (SWDIO, SWCLK).
  • Battery Coin Cell Connector – Supports RTC or low-power backup scenarios.
  • Wide Input Voltage (8–48V DC) – Compatible with varied industrial power sources.
  • SWD Debug Port (2.54mm, 4 pins) – Enables easy firmware upload and real-time debugging.



Software Features_ST development tools:

The Development Board supports the full suite of STMicroelectronics development tools:

  • TouchGFX: An advanced free-of-charge graphic software framework optimized for STM32 microcontrollers.
  • STM32CubeIDE: An advanced C/C++ development platform with peripheral configuration, coding, and debugging.
  • STM32CubeMX: A graphical tool that allows easy graphical setup of MCU peripherals and middleware.
  • STM32CubeProg: Universal programmer for STM32 devices over JTAG, SWD, or bootloader interfaces (UART, USB DFU, I2C, SPI, and CAN).



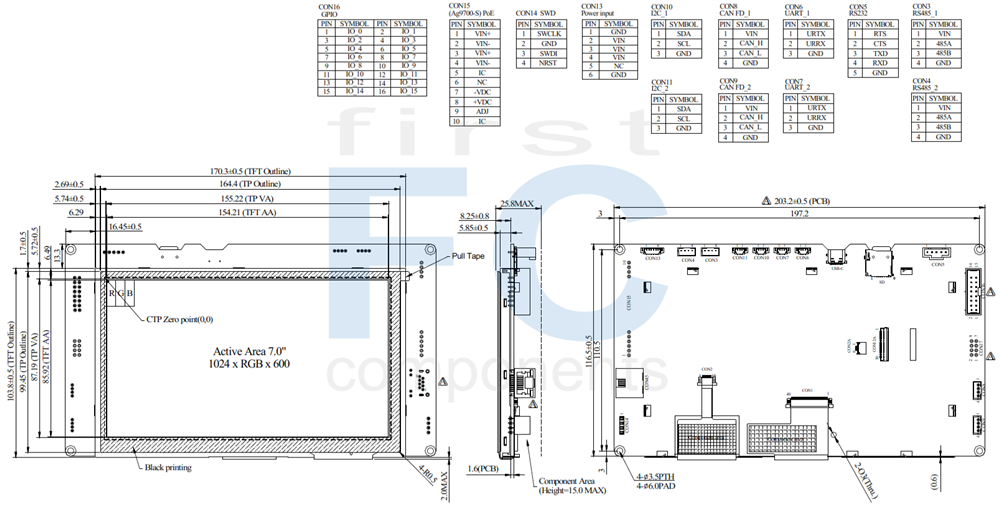

DRAWING

SPECIFICATIONS

General Specifications

Mechanical Data

ItemStandard ValueUnit
LCD panel 169.9(W) x 103.4(H) x 7.3(D) mm

General information

ItemStandard ValueUnit
Operating voltage DC 8~48V or POE PD(Option) Vdc
Communication Interface  LAN /CANFD /RS485 /RS232 /UART /I2C /USB NA
MCU  STM32H747 N/A
Flash Memory 16 MB
LCD display size 7.0 inch
Dot Matrix 1024 x RGB x 600(TFT) dot
Module dimension 203.2(W) x 116.5 (H) x 25.8(D) mm
Active area 154.21 x 85.92 mm
Pixel pitch 0.1506 x 0.1432 mm
Brightness Min: 800; Typ: 850 cd/m2
LCD type TFT, Normally Black, Transmissive
View Direction 85/85/85/85
Aspect Ratio 16:9
Touch Panel With Projected Capacitive Touch Panel (PCAP)
Surface Glare
GPIO 16 CH
SD card Micro SD slot



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 － +70 ℃
Storage Temperature TST -30 － +80 ℃




Electrical Characteristics

Operating conditions

ItemSymbolConditionMinTypMaxUnit
Supply Voltage VIN － 8 24 48 V
LCM Power Consumption   －   6.48 7 W
Current Drawn VIN=8V       838   mA
Current Drawn VIN=12V       531   mA
Current Drawn VIN=24V       270   mA
Current Drawn VIN=48V       144   mA


LED driving conditions

ParameterSymbolMin.Typ.Max.Unit
LED current   - 188   mA
Power Consumption   - 3.3 3.667 W



BOM

ItemDescription
LCM

WF70-1024600A8L#BSP3-FC
PCBA SV10007R00A8F00N0100



Interface Pin Function

Power input connector:
CON13 (1.25mm, 6P)

PinSymbolFunctionRemark
1 GND Power supply GND input Power
2 VIN Power supply input; 8~48V Power
3 VIN Power supply input; 8~48V Power
4 VIN Power supply input; 8~48V Power
5   NC
6 GND Power supply GND input Power


RS485_1 interface
CON3 (2.0mm, 4P)

PinSymbolFunctionRemark
1 VIN Power supply input; 8~48V Power
2 485A Non-inverting receiver input and non-inverting driver
3 485B Inverting receiver input and inverting driver output
4 GND Power supply GND input Power


RS485_2 interface
CON4 (2.0mm, 4P)

PinSymbolFunctionRemark
1 VIN Power supply input; 8~48V Power
2 485A Non-inverting receiver input and non-inverting driver
3 485B Inverting receiver input and inverting driver output
4 GND Power supply GND input Power

RS232 interface
CON5 (2.54mm, 5P)

PinSymbolFunctionRemark
1 RTS Request to send I/O
2 CTS Clear to send I/O
3 TXD Transmit Data   I/O
4 RXD Receive Data I/O
5 GND Ground  Power


CAN FD_1 interface
CON8 (2.0mm, 4P)

PinSymbolFunctionRemark
1 VIN Power supply input; 8~48V Power
2 CAN_H CAN High-Level Voltage
3 CAN_L CAN Low-Level Voltage
4 GND Power supply GND input Power


CAN FD _2 interface
CON9 (2.0mm, 4P)

PinSymbolFunctionRemark
1 VIN Power supply input; 8~48V Power
2 CAN_H CAN High-Level Voltage
3 CAN_L CAN Low-Level Voltage
4 GND Power supply GND input Power


I2C _1 interface
CON10 (1.25mm, 3P)

PinSymbolFunctionRemark
1 SDA I2C SDA signal  I/O
2 SCL I2C CLK signal  I/O
3 GND Power supply GND input Power


I2C _2 interface
CON11 (1.25mm, 3P)

PinSymbolFunctionRemark
1 SDA I2C SDA signal  I/O
2 SCL I2C CLK signal  I/O
3 GND Power supply GND input Power


SWD interface:
CON14 (2.54mm, 4P)

PinSymbolFunctionRemark
1 SWCLK CLK pin for SWD interface Input
2 GND GND for SWD interface Output
3 SWDI Data pin for SWD interface I/O
4 NRST Reset pin for SWD interface Input


GPIO
CON16 (2.54mm, 16P)

PinSymbolFunctionPinSymbolFunction
1 IO0 (PA5) GPIO,ADC1,DAC1,TIMER2 2 IO1 (PI15) GPIO
3 IO2 (PC2) GPIO,ADC3 4 IO3 (PC3) GPIO, ADC3
5 IO4 (PE4) GPIO, TIMER15 6 IO5 (PA12) GPIO
7 IO6 (PE5) GPIO,TIMER15 8 IO7 (PE2) GPIO
9 IO8 (PE6) GPIO, TIMER15 10 IO9 (PE3) GPIO
11 IO10 (PI11) GPIO 12 IO11 (PB1) GPIO,ADC1,ADC2,TIMER3
13 IO12 (PD11) GPIO 14 IO13 (PB10) GPIO, TIMER2
15 IO14 (PH4) GPIO,ADC3,I2C2_SCL 16 IO15 (PB11) GPIO, TIMER2, I2C2_SDA


RTC Battery interface:
CONA200 (2.0mm, 2P)

PinSymbolFunctionRemark
1 Battery+ 3.0V Input
2 Battery- GND Output



Features

ItemSpecificationsConnector
Display WF70-1024600A8L#BP3-FC CON12
Touch PCAP CON2
Brightness Hi-Brightness(Typ 850/ Min 800 nits) N/A
MCU STM32 Hi-end series N/A
SW GUI tool ST TouchGFX N/A
FW design initial code only N/A
System interface RS485_1 w/PWR 2.0mm, 4P (CON3)
  RS485_2 w/PWR 2.0mm, 4P (CON4)
  RS232 2.54mm, 5P (CON5)
  UART_1 1.25mm,3P (CON6)
  UART_2 1.25mm,3P (CON7)
  USB Type C
  CAN FD_1 w/PWR 2.0mm, 4P (CON8)
  CAN FD_2 w/PWR 2.0mm, 4P (CON9)
  I2C_1 1.25mm,3P (CON10)
  I2C_2 1.25mm,3P (CON11)
Flash memory 16MB N/A
Operating voltage 8V~48V 1.25mm, 6P(CON13)
  SWD debug port 2.54mm, 4P(CON14)
  Micro SD slot SD
  PoE add on function(Option) (CON15)
  Battery coin cell connector Y(CONA200),
PH-SMT-2AW
  Push button_1(SW4) RESET module function
  Push button_2(SW2) PH2 for user development
  Push button_3(SW3) PH3 for user development
  LED_1 for PWR
  LED_2 SWDIO indicator
  LED_3 SWCLK indicator
  LED_4 ( share with CON16 GPIO1) PI15for user development
  Ethernet RJ45
GPIO
2.54mm, 16P
(CON16)		 Each of the GPIO pins can be configured by software as output (push-pull or open-drain, with or without pull-up or pull-down), as input (floating, with or without pull-up or pull-down) or as peripheral alternate function. Most of the GPIO pins are shared with digital or analog alternate functions. Please refer to the datasheet of MCU STM32H747
Optional for 1xDAC Pin1
Optional for 3xADCs Pin1/3/4/12/15
Optional for 16 sets of GPIO Pin1~16
SKU: WL0F0007000A8GXACSA00-FC
Brand: Winstar
Available: Yes
Be the first to review this product
Price Breaks
Quantity
1+
5+
Price
€177.30
€168.50

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€177.30 excl tax

DESCRIPTION

    Link to 'SMART GUI BLIDER' INTRODUCTION & VIDEO

WINSTAR proudly presents the Development Board (WL0F0007000A8GXACSA00-FC), a versatile HMI display platform designed to accelerate product development and simplifies system integration. Designed for industrial automation, automotive, and advanced HMI applications, this all-in-one solution reduces development cycles, simplifies hardware selection, and enables a seamless path from prototype to production.



Why Choose WINSTAR Development Board?

  • Technical Support — We offer assistance with technical inquiries and provide relevant resources to support your development process. (may subject to potential NRE costs).
  • Rapid Prototyping & Proof of Concept — Get started immediately with a production-grade display and MCU platform integrated, ready for hands-on development.
  • Shortened Development Cycles — Extensive interfaces and onboard resources reduce integration time and speed up development.
  • Simplified Supply Chain — A fully integrated, customizable solution cuts down vendor management and streamlines production.
  • Effortless Transition to Production — WINSTAR's team supports you from early prototyping through mass production by removing unneeded connectors/functions to create a cost-optimized, production-ready module.



Exceptional Processing Power & Display Quality

  • STM32H747 Dual-Core MCU: features dual-core Cortex®-M7 and Cortex®-M4 processors for superior multitasking and graphical UI performance.
  • 7.0" TFT Display (WF70-1024600A8L#BP3-FC): High-brightness (850 nits) ensures readability in outdoor or harsh lighting.
  • PCAP Touch Panel: Projected capacitive touchscreen offers a responsive, modern user experience.



Comprehensive Interfaces

The board offers a rich suite of industrial-standard communication interfaces, including:

  • RS485 ×2 (2.0mm, 4 pins w/ power)
  • RS232 (2.54mm, 5 pins), UART ×2 (1.25mm, 3 pins)
  • CAN FD ×2 (2.0mm, 4 pins w/ power)
  • I²C ×2 (1.25mm, 3 pins), SPI
  • USB Type-C
  • Ethernet (RJ45)
  • MicroSD Card Slot



Rich Onboard Features & Power Support

  • 16MB Onboard Flash Memory – Ideal for storing fonts, images, and UI data; optimized for ST's TouchGFX GUI framework.
  • 16 GPIO Pins (2.54mm pitch) – Configurable as input/output for custom functions and external device control.
  • Integrated Buzzer – For audible feedback and system alerts.
  • 3 x Push Buttons – For reset and user-defined functions.
  • Status LEDs – Indicate power and SWD debugging activity (SWDIO, SWCLK).
  • Battery Coin Cell Connector – Supports RTC or low-power backup scenarios.
  • Wide Input Voltage (8–48V DC) – Compatible with varied industrial power sources.
  • SWD Debug Port (2.54mm, 4 pins) – Enables easy firmware upload and real-time debugging.



Software Features_ST development tools:

The Development Board supports the full suite of STMicroelectronics development tools:

  • TouchGFX: An advanced free-of-charge graphic software framework optimized for STM32 microcontrollers.
  • STM32CubeIDE: An advanced C/C++ development platform with peripheral configuration, coding, and debugging.
  • STM32CubeMX: A graphical tool that allows easy graphical setup of MCU peripherals and middleware.
  • STM32CubeProg: Universal programmer for STM32 devices over JTAG, SWD, or bootloader interfaces (UART, USB DFU, I2C, SPI, and CAN).



DRAWING

SPECIFICATIONS

General Specifications

Mechanical Data

ItemStandard ValueUnit
LCD panel 169.9(W) x 103.4(H) x 7.3(D) mm

General information

ItemStandard ValueUnit
Operating voltage DC 8~48V or POE PD(Option) Vdc
Communication Interface  LAN /CANFD /RS485 /RS232 /UART /I2C /USB NA
MCU  STM32H747 N/A
Flash Memory 16 MB
LCD display size 7.0 inch
Dot Matrix 1024 x RGB x 600(TFT) dot
Module dimension 203.2(W) x 116.5 (H) x 25.8(D) mm
Active area 154.21 x 85.92 mm
Pixel pitch 0.1506 x 0.1432 mm
Brightness Min: 800; Typ: 850 cd/m2
LCD type TFT, Normally Black, Transmissive
View Direction 85/85/85/85
Aspect Ratio 16:9
Touch Panel With Projected Capacitive Touch Panel (PCAP)
Surface Glare
GPIO 16 CH
SD card Micro SD slot



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 － +70 ℃
Storage Temperature TST -30 － +80 ℃




Electrical Characteristics

Operating conditions

ItemSymbolConditionMinTypMaxUnit
Supply Voltage VIN － 8 24 48 V
LCM Power Consumption   －   6.48 7 W
Current Drawn VIN=8V       838   mA
Current Drawn VIN=12V       531   mA
Current Drawn VIN=24V       270   mA
Current Drawn VIN=48V       144   mA


LED driving conditions

ParameterSymbolMin.Typ.Max.Unit
LED current   - 188   mA
Power Consumption   - 3.3 3.667 W



BOM

ItemDescription
LCM

WF70-1024600A8L#BSP3-FC
PCBA SV10007R00A8F00N0100



Interface Pin Function

Power input connector:
CON13 (1.25mm, 6P)

PinSymbolFunctionRemark
1 GND Power supply GND input Power
2 VIN Power supply input; 8~48V Power
3 VIN Power supply input; 8~48V Power
4 VIN Power supply input; 8~48V Power
5   NC
6 GND Power supply GND input Power


RS485_1 interface
CON3 (2.0mm, 4P)

PinSymbolFunctionRemark
1 VIN Power supply input; 8~48V Power
2 485A Non-inverting receiver input and non-inverting driver
3 485B Inverting receiver input and inverting driver output
4 GND Power supply GND input Power


RS485_2 interface
CON4 (2.0mm, 4P)

PinSymbolFunctionRemark
1 VIN Power supply input; 8~48V Power
2 485A Non-inverting receiver input and non-inverting driver
3 485B Inverting receiver input and inverting driver output
4 GND Power supply GND input Power

RS232 interface
CON5 (2.54mm, 5P)

PinSymbolFunctionRemark
1 RTS Request to send I/O
2 CTS Clear to send I/O
3 TXD Transmit Data   I/O
4 RXD Receive Data I/O
5 GND Ground  Power


CAN FD_1 interface
CON8 (2.0mm, 4P)

PinSymbolFunctionRemark
1 VIN Power supply input; 8~48V Power
2 CAN_H CAN High-Level Voltage
3 CAN_L CAN Low-Level Voltage
4 GND Power supply GND input Power


CAN FD _2 interface
CON9 (2.0mm, 4P)

PinSymbolFunctionRemark
1 VIN Power supply input; 8~48V Power
2 CAN_H CAN High-Level Voltage
3 CAN_L CAN Low-Level Voltage
4 GND Power supply GND input Power


I2C _1 interface
CON10 (1.25mm, 3P)

PinSymbolFunctionRemark
1 SDA I2C SDA signal  I/O
2 SCL I2C CLK signal  I/O
3 GND Power supply GND input Power


I2C _2 interface
CON11 (1.25mm, 3P)

PinSymbolFunctionRemark
1 SDA I2C SDA signal  I/O
2 SCL I2C CLK signal  I/O
3 GND Power supply GND input Power


SWD interface:
CON14 (2.54mm, 4P)

PinSymbolFunctionRemark
1 SWCLK CLK pin for SWD interface Input
2 GND GND for SWD interface Output
3 SWDI Data pin for SWD interface I/O
4 NRST Reset pin for SWD interface Input


GPIO
CON16 (2.54mm, 16P)

PinSymbolFunctionPinSymbolFunction
1 IO0 (PA5) GPIO,ADC1,DAC1,TIMER2 2 IO1 (PI15) GPIO
3 IO2 (PC2) GPIO,ADC3 4 IO3 (PC3) GPIO, ADC3
5 IO4 (PE4) GPIO, TIMER15 6 IO5 (PA12) GPIO
7 IO6 (PE5) GPIO,TIMER15 8 IO7 (PE2) GPIO
9 IO8 (PE6) GPIO, TIMER15 10 IO9 (PE3) GPIO
11 IO10 (PI11) GPIO 12 IO11 (PB1) GPIO,ADC1,ADC2,TIMER3
13 IO12 (PD11) GPIO 14 IO13 (PB10) GPIO, TIMER2
15 IO14 (PH4) GPIO,ADC3,I2C2_SCL 16 IO15 (PB11) GPIO, TIMER2, I2C2_SDA


RTC Battery interface:
CONA200 (2.0mm, 2P)

PinSymbolFunctionRemark
1 Battery+ 3.0V Input
2 Battery- GND Output



Features

ItemSpecificationsConnector
Display WF70-1024600A8L#BP3-FC CON12
Touch PCAP CON2
Brightness Hi-Brightness(Typ 850/ Min 800 nits) N/A
MCU STM32 Hi-end series N/A
SW GUI tool ST TouchGFX N/A
FW design initial code only N/A
System interface RS485_1 w/PWR 2.0mm, 4P (CON3)
  RS485_2 w/PWR 2.0mm, 4P (CON4)
  RS232 2.54mm, 5P (CON5)
  UART_1 1.25mm,3P (CON6)
  UART_2 1.25mm,3P (CON7)
  USB Type C
  CAN FD_1 w/PWR 2.0mm, 4P (CON8)
  CAN FD_2 w/PWR 2.0mm, 4P (CON9)
  I2C_1 1.25mm,3P (CON10)
  I2C_2 1.25mm,3P (CON11)
Flash memory 16MB N/A
Operating voltage 8V~48V 1.25mm, 6P(CON13)
  SWD debug port 2.54mm, 4P(CON14)
  Micro SD slot SD
  PoE add on function(Option) (CON15)
  Battery coin cell connector Y(CONA200),
PH-SMT-2AW
  Push button_1(SW4) RESET module function
  Push button_2(SW2) PH2 for user development
  Push button_3(SW3) PH3 for user development
  LED_1 for PWR
  LED_2 SWDIO indicator
  LED_3 SWCLK indicator
  LED_4 ( share with CON16 GPIO1) PI15for user development
  Ethernet RJ45
GPIO
2.54mm, 16P
(CON16)		 Each of the GPIO pins can be configured by software as output (push-pull or open-drain, with or without pull-up or pull-down), as input (floating, with or without pull-up or pull-down) or as peripheral alternate function. Most of the GPIO pins are shared with digital or analog alternate functions. Please refer to the datasheet of MCU STM32H747
Optional for 1xDAC Pin1
Optional for 3xADCs Pin1/3/4/12/15
Optional for 16 sets of GPIO Pin1~16
Products specifications
Brand Winstar
Size 7"
Resolution 1024x600
Active Area (mm) 154.21x85.92
Color Full Color
Power supply 24V
Display Interface Multi-Interface
View Angle IPS
Sunlight Readable High 601~1200cd/m²
Frame Yes
Touch Panel Capacitive
O. Temperature (°C) -20~70
Preferred - Not Preferred Preferred
