    TFT 5" 800x480, RS485 ModBus interface, 400cd/m², Wide View Angle (IPS), Super extended temperature, Capacitive touch panel (GG)
    Manufacturer: Winstar
    SKU: WL0F00050000FGDABSA00-FC
    PRICE BREAKS
    Quantity
    1+
    5+
    10+
    Price
    €88.50
    €79.60
    €74.80

    For quantities above 24pcs pls send your enquiry to [email protected] or call +39 0332 1888005

    Availability: In stock
    €88.50 excl tax
    i h


    Description

    WL0F00050000FGDABSA00-FC is a 5-inch Smart Display_RS485 series TFT, defined as a slave device controlled by a master device via RS485 command to render display content on the display screen and return touch event data with Modbus protocol data. WL0F00050000FGDABSA00-FC is featured with Winstar wide temperature TFT WL0F00050000FGDABSA00-FC and a 4-layers FR4 PCBA built-in firmware. This 5” RS485 series TFT is an easy-to-use product that allows you to develop projects rapidly in a cost-effective way. Winstar RS485 Smart Display support single-master (HOST) platforms, such as a computer (with USB2RS485 Dongle), MCU, and Raspberry Pi.

    Smart Display products are designed with STMicroelectronics' (ST) controller which supports ST development tools like TouchGFX and STM32CubeIDE. You can also use ST tools to design WINSTAR Smart Display modules besides GUI builder.

    • TouchGFX: An advanced free-of-charge graphic software framework optimized for STM32 microcontrollers.
    • STM32CubeIDE: An advanced C/C++ development platform with peripheral configuration, code generation, code compilation, and debug features for STM32 microcontrollers and microprocessors.
    • STM32CubeMX: A graphical tool that allows a very easy configuration of STM32 microcontrollers, as well as the generation of the corresponding initialization C code for the Arm® Cortex®-M core or a partial Linux® Device Tree for Arm® Cortex®-A core, through a step-by-step process.
    • STM32CubeProg: An all-in-one multi-OS software tool for programming STM32 products. It provides an easy-to-use and efficient environment for reading, writing and verifying device memory through both the debug interface (JTAG and SWD) and the bootloader interface (UART, USB DFU, I2C, SPI, and CAN).


    We’ve also pushed the sample code on Github for your ST platform design reference: ► Link to Github

    Below are the features of this 5-inch RS485 Smart Display WL0F00050000FGDABSA00-FC:

    • DC 5V working voltage.
    • Self testing after booting function.
    • RS485 communication interface with Modbus protocol.
    • Built in flash memory, store the font and Object Dictionary Data.
    • Support capacitive touch panel (CTP).
    • Build in buzzer and can be controlled by Master Device.
    • Demo set HOST can be used on multiple platforms, such as Computer (with USB2RS485 Dongle), MCU.
    • Design the UI without writing a line of code by winstar GUI builder! (►Link to GUI Builder User Guide)
    • Designed with STM32F series MCU and Support STMicroelectronics' (ST) software development tools.



    Winstar developed a Windows app. for Smart Display GUI design. Winstar GUI Builder software allows customers to simulate their GUI design in advance by using the drag-and-drop Widget preview function; customers can also create their ideal GUI. Winstar GUI builder software supports Windows systems only; it can fulfill What You See Is What You Get (WYSIWYG). The new version of built-in software is a 3-in-1 APP; we combined three application templates for optional, including industrial, vehicle and medical applications. Please press the preferred application and hold for 3 seconds at the first time power on. Customers can change to another template by using GUI Builder to change the application.

    Try before you buy! Contact us to download Winstar GUI Builder application.



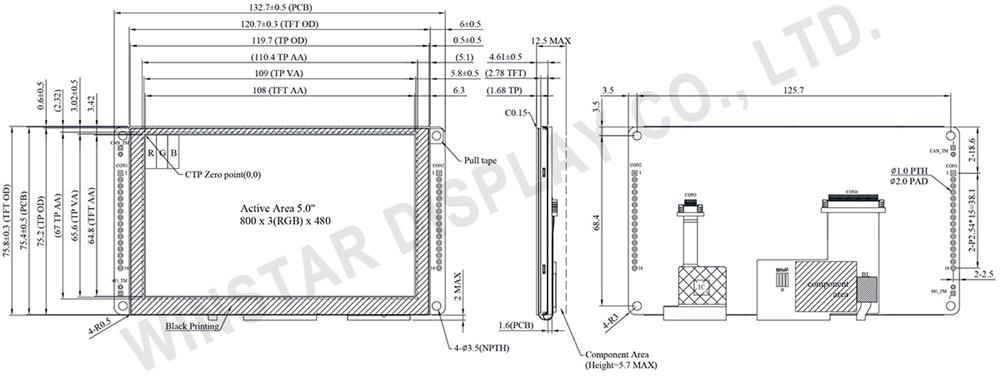

    DRAWING

    5 inch RS485 Modbus TFT Smart Display with Projected Capacitive Touch - WL0F00050000FGDABSA00



    SPECIFICATIONS

    General Specifications

    ItemStandard ValueUnit
    Operating voltage 5 Vdc
    Communication Interface  CAN bus differential -
    MCU STM32F750
    Flash Memory 16 MB
    SDRAM Frequency 108 MHz
    LCD display size 5 inch
    Dot Matrix 800 × 3(RGB) × 480 dots
    Module dimension 132.7(W) × 75.8(H) × 12.5(D) mm
    Active area 108(W) × 64.8 (H) mm
    Pixel pitch 0.135(W) × 0.135(H) mm
    Brightness Min: 300; Typ: 400 cd/m2
    LCD type TFT, Normally Black, Transmissive
    View Direction 80/80/80/80
    Aspect Ratio 5:3
    Touch Panel With Projected Capacitive Touch Panel (PCAP)
    Surface Glare



    Absolute Maximum Ratings

    ItemSymbolMinTypMaxUnit
    Operating Temperature TOP -30 - +80 ℃
    Storage Temperature TST -30 - +80 ℃



    Electrical Characteristics

    ItemSymbolMinTypMaxUnit
    Supply Voltage VCC 4.75 5 5.25 V
    Supply Current ICC   430   mA



    BOM

    ItemDescription
    LCM WF50FTWAGDNG0#
    PCBA SV10005R000FF00N0102



    Interface Pin Function

    CN1 definition

    PinSymbolFunctionRemark
    1 +5V Power supply 5V input Input
    2 GND Power supply GND input Input
    3 NC -- -
    4 NC -- -
    5   VDD_5V Power supply 5V input Input
    6 NC -- -
    7 NC -- -
    8 GND Power supply GND input Input
    9 VDD_5V Power supply 5V input Input
    10 Reserve UART RX interface(Reserve) Reserve
    11 Reserve UART TX interface(Reserve) Reserve
    12 GND Power supply GND input Input
    13 VDD_5V Power supply 5V input Input
    14 RS485_B RS485 DATA- I/O
    15 RS485_A RS485 DATA+ I/O
    16 GND Power supply GND input Input


    CN2 definition

    PinSymbolFunctionRemark
    1 +3V3 3.3V power for JTAG interface Output
    2 SWCLK CLK pin for JTAG interface Input
    3 GND GND for JTAG interface Output
    4 SWDIO Data pin for JTAG interface I/O
    5 NRST Reset pin for JTAG interface Input
    6 GND GND Output
    7-16 NC -- -
    Products specifications
    Size 5"
    Resolution 800x480
    Active Area (mm) 108.00x64.80
    Color Full Color
    Power supply 5V
    Display Interface RS485
    View Angle IPS
    Frame Yes
    Touch Panel Capacitive
    O. Temperature (°C) -30~80
    Preferred - Not Preferred Preferred
    *
    *
    *
    *
