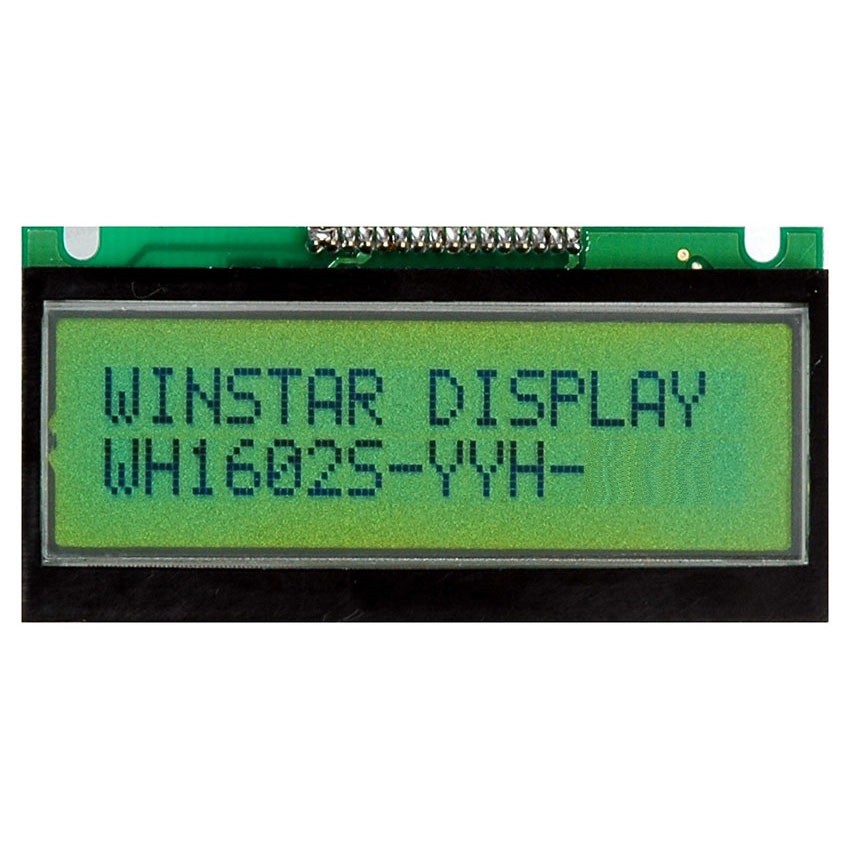

WH1602S-YYH-ET#

Character LCD 1.9" 16x2, B/L yellow/green, STN yellow/green pos, Transflective, COB, 5V, Interface 6800, Font Eng/Eu, 6 O'clock

DESCRIPTION

WH1602S is a 16x2 Character dot Matrix LCD Display Module which is built in with ST7066 controller IC or equivalent; its default interface is 6800 4/8-bit parallel, 5V power supply. WH1602S is available in several different backlight colors including blue, green, white, yellow-green, amber, red or white LEDs. There are different character fonts/texts available for ST7066 IC including English/Japanese, English/West European, English/Scandinavian European, or English/Cyrillic (Russian) as options. This module can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃.

There are different interface options for WH1602S series, details as below:
►WH1602S : 6800 interface (ST7066 IC)
►WH1602S1 : SPI interface (RW1063 IC)
►WH1602S2 : I2C interface (RW1063 IC)

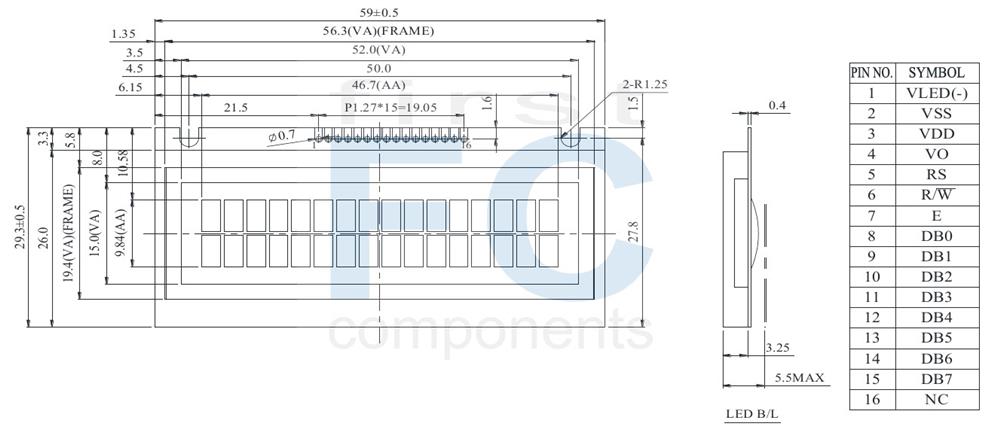

DRAWING

SPECIFICATIONS

Interface Pin Function

Pin No.	Symbol	Description
1	V_LED	Power supply for B/L -
2	V_SS	Ground
3	V_DD	Power supply for logic
4	V_O	Contrast Adjustment
5	RS	Data/ Instruction select signal
6	R/W	Read/Write select signal
7	E	Enable signal
8~15	DB0~DB7	Data bus line
16	NC	No connection

Mechanical Data

Item	Standard Value	Unit
Module Dimension	59.0 × 29.3	mm
Viewing Area	52.0 × 15.0	mm
Mounting Hole	50.0 × 27.8	mm
Character Size	2.45 × 4.67	mm

Electrical Characteristics

Item	Symbol	Standard Value typ.	Unit
Input Voltage	VDD	3/5	V
Recommended LCD Driving Voltage for Normal Temp. Version module @25°C	VDD-VO	3.70	V

Display Character Address Code

Display Position	1	2	3	4	5	6	7	8	9	10	11	12	13	14	15	16
DD RAM Address	00	01	2												0E	0F
DD RAM Address	40	41	42												4E	4F

SKU: WH1602S-YYH-ET#

Brand: Winstar

Available: Yes

Be the first to review this product

Accessory Kit

Display Connector

Price Breaks

Quantity

10+

25+

Price

€7.60

€5.60

€5.40

€5.20

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€7.60 excl tax

Overview
Specifications
Download
Contact Us

DESCRIPTION

DRAWING

SPECIFICATIONS

Interface Pin Function

Pin No.	Symbol	Description
1	V_LED	Power supply for B/L -
2	V_SS	Ground
3	V_DD	Power supply for logic
4	V_O	Contrast Adjustment
5	RS	Data/ Instruction select signal
6	R/W	Read/Write select signal
7	E	Enable signal
8~15	DB0~DB7	Data bus line
16	NC	No connection

Mechanical Data

Item	Standard Value	Unit
Module Dimension	59.0 × 29.3	mm
Viewing Area	52.0 × 15.0	mm
Mounting Hole	50.0 × 27.8	mm
Character Size	2.45 × 4.67	mm

Electrical Characteristics

Item	Symbol	Standard Value typ.	Unit
Input Voltage	VDD	3/5	V
Recommended LCD Driving Voltage for Normal Temp. Version module @25°C	VDD-VO	3.70	V

Display Character Address Code

Display Position	1	2	3	4	5	6	7	8	9	10	11	12	13	14	15	16
DD RAM Address	00	01	2												0E	0F
DD RAM Address	40	41	42												4E	4F

Products specifications

Brand	Winstar
Size	1.9"
Resolution	16x2
Active Area (mm)	46.70x9.84
Dot Size	0.45x0.54
B/L color, LCD type	B/L yellow/green, STN yellow/green pos
Power supply	5V
Display Interface	6800
Display IC	ST7066
Constructive Structure	COB
View Angle	6H
O. Temperature (°C)	-20~70
Display Connection	Soldering PAD
Pin Nr.	16
Pin Pitch	1.27mm
Preferred - Not Preferred	Preferred
