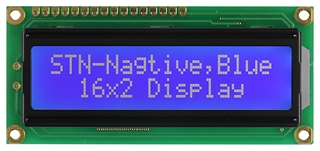

    Character LCD 2.3" 16x2, B/L white, STN blue neg, Transmissive, COB, 5V, Interface 6800, Font Eng/Cyr, 6 O'clock (Total thickness 10.0mm)
    Manufacturer: Winstar
    SKU: WH1602B2-TMI-CT#

    Accessory kit

    PRICE BREAKS
    Quantity
    1+
    5+
    10+
    25+
    Price
    €10.20
    €9.20
    €8.60
    €8.40

    For quantities above 49pcs pls send your enquiry to [email protected] or call +39 0332 1888005

    Availability: In stock
    €10.20 excl tax
    i h

    DESCRIPTION

    Winstar WH1602B is one of the most popular character LCD display module 16x2 types in the market. WH1602B 16x2 LCD display model is built in with ST7066 controller IC or equivalent; its default interface is 6800 4/8-bit parallel. The model no. WH1602B1 is having 4 line SPI interface, as to the part no. WH1602B3 is having I2C interface.

    Key Features for WH1602B1/B3 --
    • Two line (2 x 16) characters
    • Power supply:5V or 3V
    • Interface:WH1602B1for 4 line SPI, WH1602B3 for I2C
    • Driver: Winstar IC providing high level functions
    • Direct access to low level controller is available for advanced control
    • Space reserved for eight custom characters

    There are different interface options for WH1602B series, details as below:
    ►WH1602B : 6800 interface (ST7066 IC), thickness NO B/L:9.70, with backlight: 13.2~13.5 mm
    ►WH1602B1: SPI interface (RW1063 IC), thickness NO B/L:9.70, with backlight: 13.2~13.5 mm
    ►WH1602B2: 6800 interface (ST7066 IC), thickness 10.0 mm
    ►WH1602B3: I2C interface (RW1063 IC), thickness NO B/L:9.70, with backlight: 13.2~13.5 mm

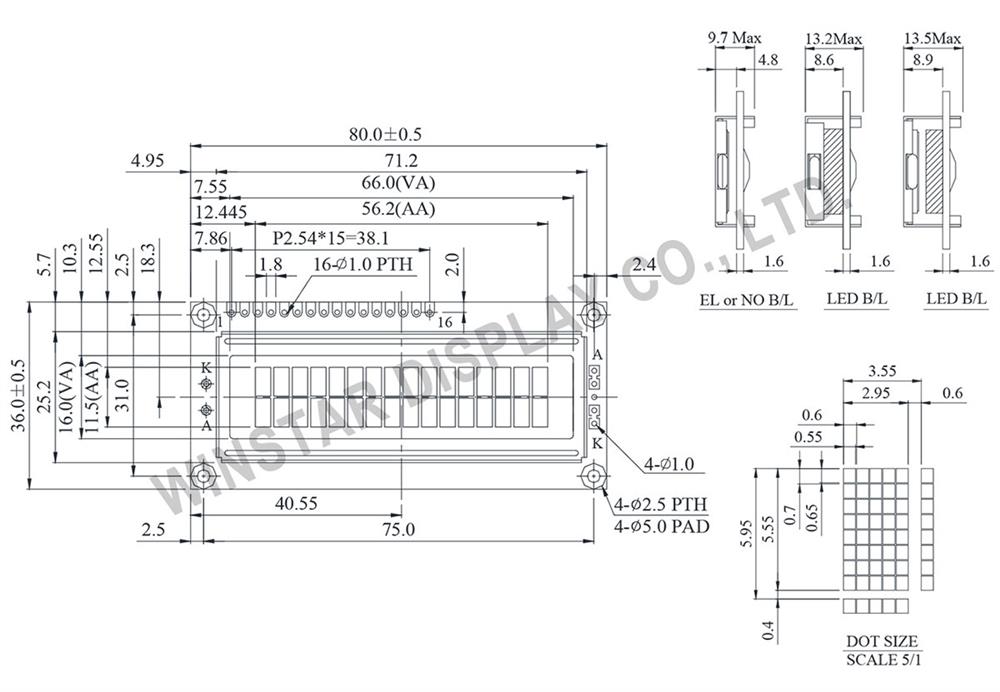

    DRAWING

    Display 16x2, LCD Display 16x2, LCD Module 16x2, LCD Display Module 16x2, Winstar Display LCD WH1602B

    SPECIFICATIONS

    Interface Pin Function

    Pin No.SymbolDescription
    1 VSS Ground
    2 VDD Power supply for logic
    3 VO Contrast Adjustment
    4 RS Data/ Instruction select signal
    5 R/W Read/Write select signal
    6 E Enable signal
    7~14 DB0~DB7 Data bus line
    15 A Power supply for B/L +
    16 K Power supply for B/L -

    Mechanical Data

    ItemStandard ValueUnit
    Module Dimension 80.0 × 36.0 mm
    Viewing Area 66.0 × 16.0 mm
    Mounting Hole 75.0 × 31.0 mm
    Character Size 2.95 × 5.55 mm

    Electrical Characteristics

    ItemSymbolStandard Value
    typ.
    Unit
    Input Voltage VDD 3/5 V
    Recommended LCD Driving
    Voltage for Normal Temp.
    Version module @25°C
    VDD-VO 3.70 V

    Display Character Address Code

    Display Position12345678910111213141516
    DD RAM Address 00 01                           0F
    DD RAM Address 40 41                           4F


    Products specifications
    Size 2.3"
    Resolution 16x2
    Active Area (mm) 56.20x11.50
    Dot Size 0.55x0.65
    B/L color, LCD type B/L white, STN blue neg
    Power supply 5V
    Display Interface 6800
    Display IC ST7066
    Constructive Structure COB
    View Angle 6H
    O. Temperature (°C) -20~70
    Data Connection Soldering PAD
    Pin Nr. 16
    Pin Pitch 2.54mm
    Preferred - Not Preferred Not Preferred
    *
    *
    *
    *
