WH0802A1-SLL-JWV#

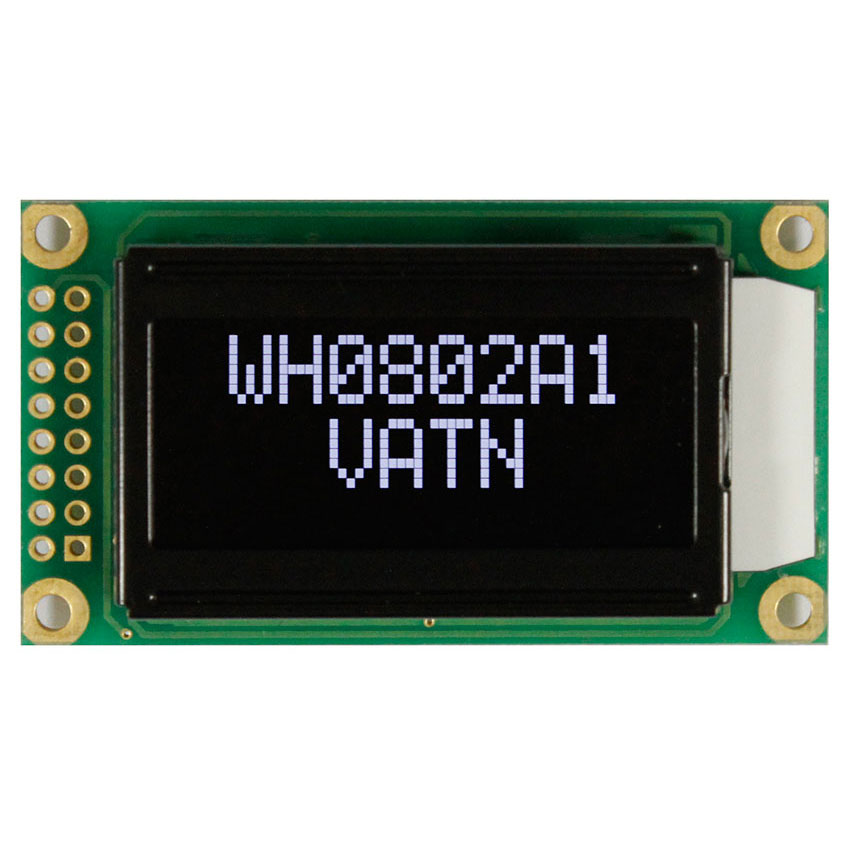

Character LCD 1.2" 8x2, B/L white, VATN, COB, 5V, Interface 6800, 12 O'clock, Font Eng/Jap

DESCRIPTION

The VATN display is featured with wide viewing angle and high contrast ratio, therefore, it’s very suitable for many applications. Below are the examples for reference.

Industrial: Automotive application, Digital meter, UPS
Medical: medical device & medical equipment
Home appliance: audio, coffee machine, microwave oven
Automobile: dashboard, car audio

There are three interface options for VATN WH0802A1 series, details as below:

VATN WH0802A1: Parallel interface (RW1063 IC)
VATN WH0802A2: SPI interface (RW1063 IC)
VATN WH0802A3: I2C interface (RW1063 IC)

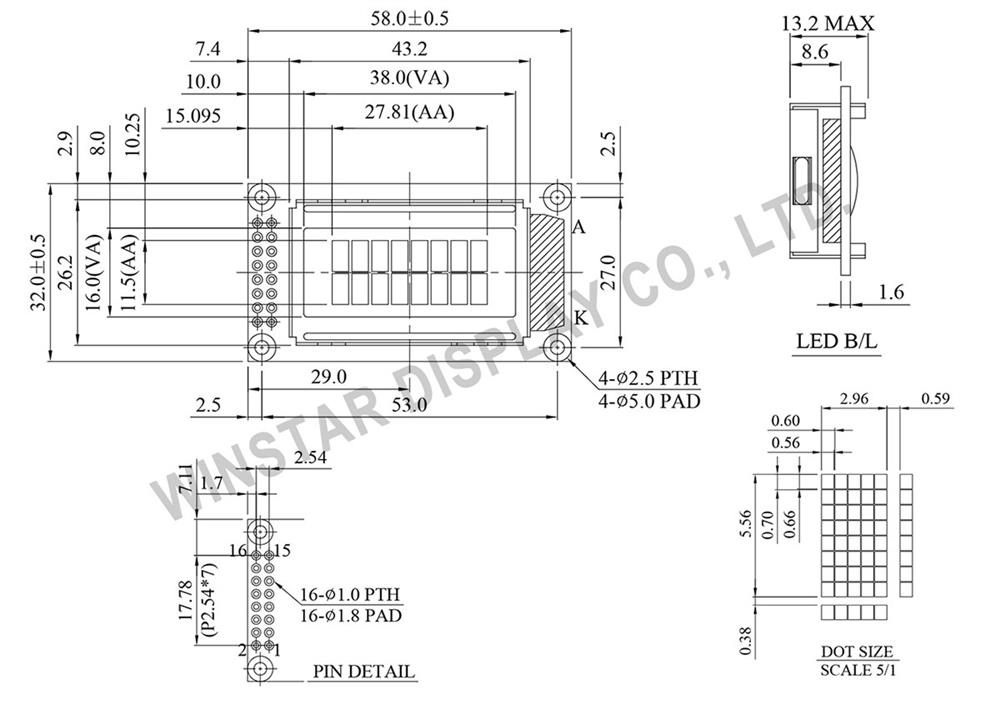

DRAWING

SPECIFICATIONS

Interface Pin Function

Pin No.	Symbol	Description
1	V_SS	Ground
2	V_DD	Power supply for logic
3	NC	No connection
4	RS	Data/ Instruction select signal
5	R/W	Read/Write select signal
6	E	Enable signal
7~14	DB0~DB7	Data bus line
15	A	Power supply for B/L +
16	K	Power supply for B/L -

Mechanical Data

Item	Standard Value	Unit
Module Dimension	58.0 × 32.0	mm
Viewing Area	38.0 × 16.0	mm
Mounting Hole	53.0 × 27.0	mm
Character Size	2.96 × 5.56	mm

Electrical Characteristics

Item	Symbol	Standard Value typ.	Unit
Input Voltage	VDD	5.0	V
Recommended LCD Driving Voltage for Normal Temp. Version module @25°C	VDD-VO	---	V

Display Character Address Code

Display position	1	2	3	4	5	6	7	8
DD RAM Address	00	01						07
DD RAM Address	40	41						47

SKU: WH0802A1-SLL-JWV#

Brand: Winstar

Available: Yes

Be the first to review this product

Accessory Kit

Display Connector

Price Breaks

Quantity

10+

25+

50+

100+

Price

€8.30

€6.10

€5.90

€5.70

€5.50

€5.10

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€8.30 excl tax

Overview
Specifications
Download
Contact Us

DESCRIPTION

The VATN display is featured with wide viewing angle and high contrast ratio, therefore, it’s very suitable for many applications. Below are the examples for reference.

Industrial: Automotive application, Digital meter, UPS
Medical: medical device & medical equipment
Home appliance: audio, coffee machine, microwave oven
Automobile: dashboard, car audio

There are three interface options for VATN WH0802A1 series, details as below:

VATN WH0802A1: Parallel interface (RW1063 IC)
VATN WH0802A2: SPI interface (RW1063 IC)
VATN WH0802A3: I2C interface (RW1063 IC)

DRAWING

SPECIFICATIONS

Interface Pin Function

Pin No.	Symbol	Description
1	V_SS	Ground
2	V_DD	Power supply for logic
3	NC	No connection
4	RS	Data/ Instruction select signal
5	R/W	Read/Write select signal
6	E	Enable signal
7~14	DB0~DB7	Data bus line
15	A	Power supply for B/L +
16	K	Power supply for B/L -

Mechanical Data

Item	Standard Value	Unit
Module Dimension	58.0 × 32.0	mm
Viewing Area	38.0 × 16.0	mm
Mounting Hole	53.0 × 27.0	mm
Character Size	2.96 × 5.56	mm

Electrical Characteristics

Item	Symbol	Standard Value typ.	Unit
Input Voltage	VDD	5.0	V
Recommended LCD Driving Voltage for Normal Temp. Version module @25°C	VDD-VO	---	V

Display Character Address Code

Display position	1	2	3	4	5	6	7	8
DD RAM Address	00	01						07
DD RAM Address	40	41						47

Products specifications

Brand	Winstar
Size	1.2"
Resolution	8x2
Active Area (mm)	27.81x11.50
Dot Size	0.56x0.66
B/L color, LCD type	B/L white, VATN
Power supply	5V
Display Interface	6800
Display IC	RW1063
Constructive Structure	COB
View Angle	12H
O. Temperature (°C)	-20~70
Display Connection	Soldering PAD
Pin Nr.	16
Pin Pitch	2.54mm
Preferred - Not Preferred	Preferred
