WH0802A-NGG-ET#

Picture of WH0802A-NGG-ET#

Character LCD 1.2" 8x2, Without B/L, STN gray pos, Reflective, COB, 5V, Interface 6800, Font Eng/Eu, 6 O'clock

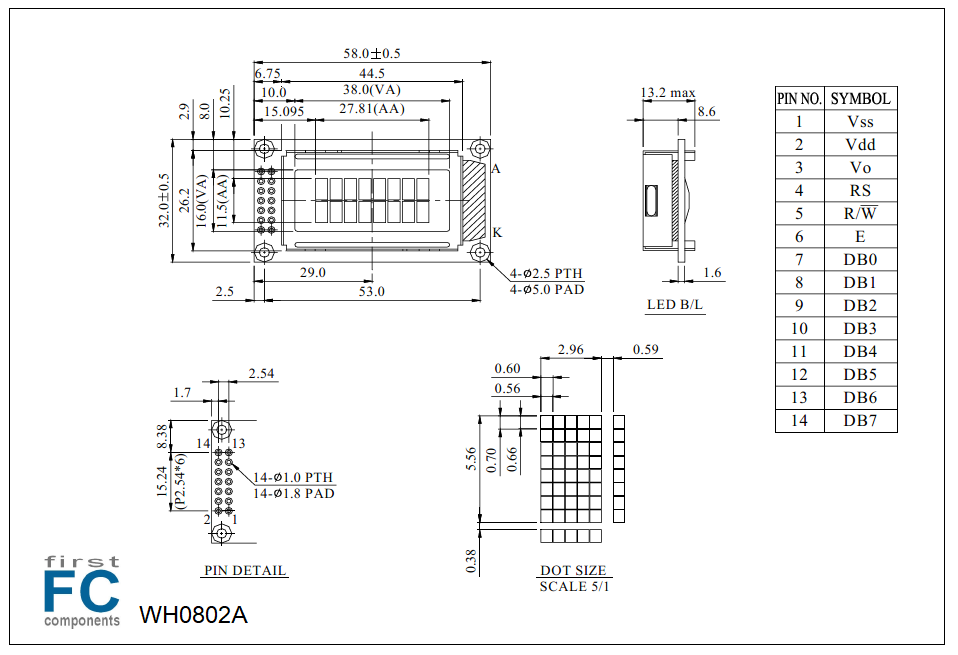

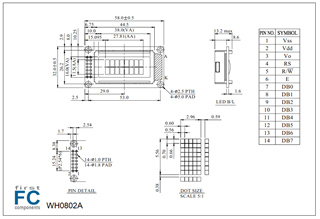

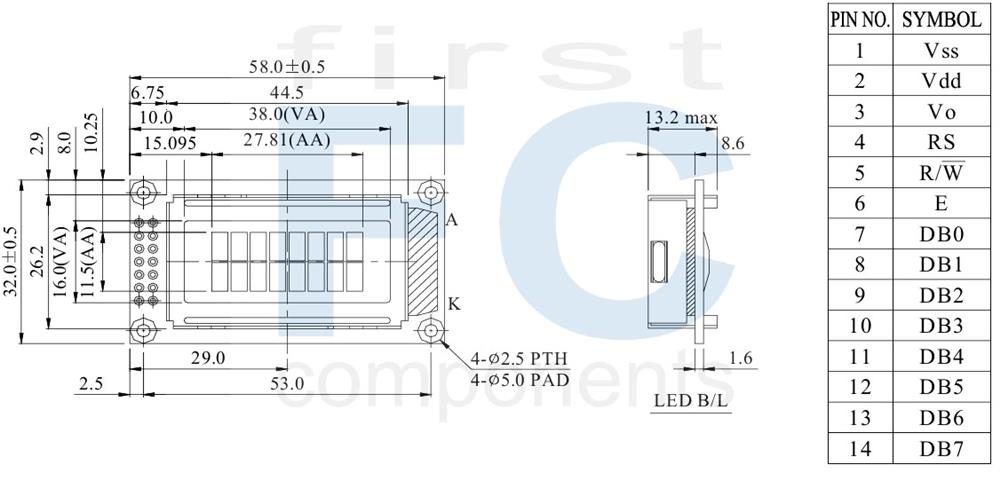

DRAWING

SPECIFICATIONS

Interface Pin Function

Pin No.	Symbol	Level	Description
1	VSS	0V	Ground
2	VDD	5.0V	Supply Voltage for logic
3	VO	(Variable)	Operating voltage for LCD
4	RS	H/L	H: DATA, L: Instruction code
5	R/W	H/L	H: Read L: Write
6	E	H,H→L	Chip enable signal
7	DB0	H/L	Data bus line
8	DB1	H/L	Data bus line
9	DB2	H/L	Data bus line
10	DB3	H/L	Data bus line
11	DB4	H/L	Data bus line
12	DB5	H/L	Data bus line
13	DB6	H/L	Data bus line
14	DB7	H/L	Data bus line

Mechanical Data

Item	Dimension	Unit
Number of Characters	8 characters x 2Lines	－
Module dimension	58.0 x 32.0	mm
View area	38.0 x 16.0	mm
Active area	27.81 x 11.5	mm
Dot size	0.56 x 0.66	mm
Dot pitch	0.60 x 0.70	mm
Character size	2.96 x 5.56	mm
Character pitch	3.55 x 5.94	mm
Duty	1/16
View direction	12 o’clock
IC	ST7066U

SKU: WH0802A-NGG-ET#

Brand: Winstar

Available: Yes

Be the first to review this product

Accessory Kit

Display Connector

Price Breaks

Quantity

1+

5+

10+

25+

Price

€3.90

€2.90

€2.80

€2.70

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€3.90 excl tax

Overview
Specifications
Download
Contact Us

DRAWING

SPECIFICATIONS

Interface Pin Function

Pin No.	Symbol	Level	Description
1	VSS	0V	Ground
2	VDD	5.0V	Supply Voltage for logic
3	VO	(Variable)	Operating voltage for LCD
4	RS	H/L	H: DATA, L: Instruction code
5	R/W	H/L	H: Read L: Write
6	E	H,H→L	Chip enable signal
7	DB0	H/L	Data bus line
8	DB1	H/L	Data bus line
9	DB2	H/L	Data bus line
10	DB3	H/L	Data bus line
11	DB4	H/L	Data bus line
12	DB5	H/L	Data bus line
13	DB6	H/L	Data bus line
14	DB7	H/L	Data bus line

Mechanical Data

Item	Dimension	Unit
Number of Characters	8 characters x 2Lines	－
Module dimension	58.0 x 32.0	mm
View area	38.0 x 16.0	mm
Active area	27.81 x 11.5	mm
Dot size	0.56 x 0.66	mm
Dot pitch	0.60 x 0.70	mm
Character size	2.96 x 5.56	mm
Character pitch	3.55 x 5.94	mm
Duty	1/16
View direction	12 o’clock
IC	ST7066U

Products specifications

Brand	Winstar
Size	1.2"
Resolution	8x2
Active Area (mm)	27.81x11.50
Dot Size	0.56x0.66
B/L color, LCD type	Without B/L, STN gray pos
Power supply	5V
Display Interface	6800
Display IC	ST7066
Constructive Structure	COB
View Angle	6H
O. Temperature (°C)	-20~70
Display Connection	Soldering PAD
Pin Nr.	14
Pin Pitch	2.54mm
Preferred - Not Preferred	Preferred
