WH0802A-CFH-JT#

Character LCD 1.2" 8x2, B/L RGB, FSTN white pos, Transflective, COB, 5V, Interface 6800, Font Eng/Jap, 6 O'clock

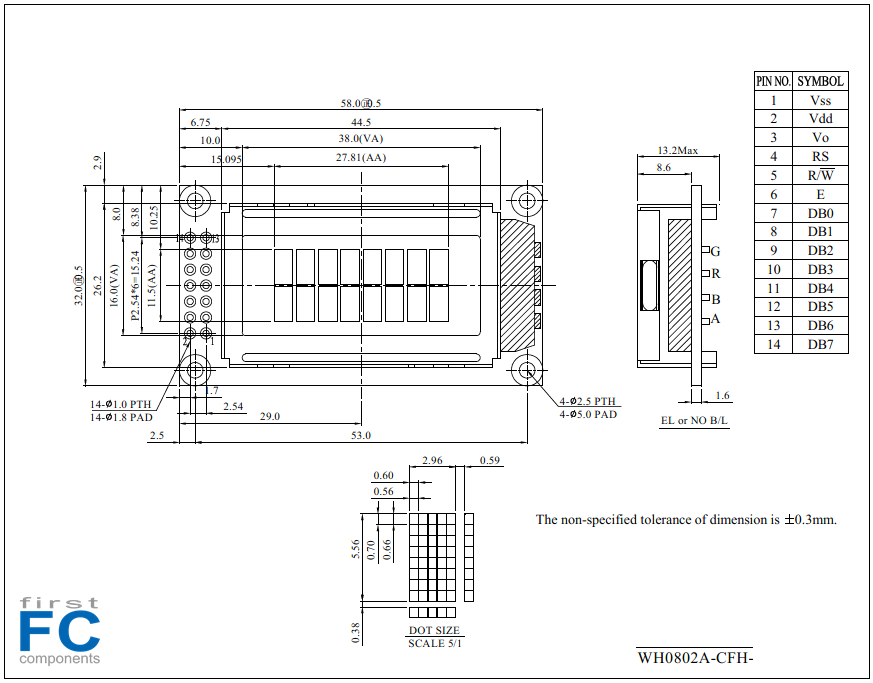

DRAWING

SKU: WH0802A-CFH-JT#
Brand: Winstar
Available: Yes
Be the first to review this product
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
25+
Price
€7.10
€5.20
€5.00
€4.90

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€7.10 excl tax

DRAWING

Products specifications
Brand Winstar
Size 1.2"
Resolution 8x2
Active Area (mm) 27.81x11.50
Dot Size 0.56x0.66
B/L color, LCD type B/L RGB, FSTN white pos
Power supply 5V
Display Interface 6800
Display IC ST7066
Constructive Structure COB
View Angle 6H
O. Temperature (°C) -20~70
Display Connection Soldering PAD
Pin Nr. 14
Pin Pitch 2.54mm
Preferred - Not Preferred Not Preferred
Download
Products specifications
Brand Winstar
Size 1.2"
Resolution 8x2
Active Area (mm) 27.81x11.50
Dot Size 0.56x0.66
B/L color, LCD type B/L RGB, FSTN white pos
Power supply 5V
Display Interface 6800
Display IC ST7066
Constructive Structure COB
View Angle 6H
O. Temperature (°C) -20~70
Display Connection Soldering PAD
Pin Nr. 14
Pin Pitch 2.54mm
Preferred - Not Preferred Not Preferred
