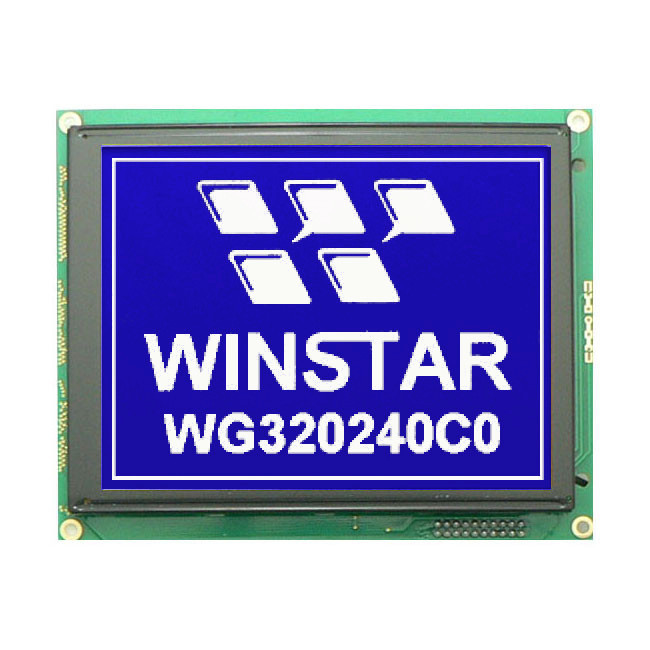

    WG320240C0-TMI-VZ#

    Graphic LCD 5.7" 320x240, B/L white, STN blue neg, Transmissive, COB, 5V, Interface 6800/8080, 6 O'clock, VNEG
    Manufacturer: Winstar
    SKU: WG320240C0-TMI-VZ#

    Accessory kit

    PRICE BREAKS
    Quantity
    1+
    5+
    10+
    Price
    €96.10
    €86.50
    €81.30

    For quantities above 24pcs pls send your enquiry to [email protected] or call +39 0332 1888005

    Availability: In stock
    €96.10 excl tax
    i h

    DESCRIPTION



    WG320240CO is a Liquid Crystal Display 320x240 graphic module which is having the module dimension of 148.02x120.24 mm and AA size of 115.18x86.38 mm, diagonal size 5.7 inch.  This monochrome LCD display is built in with RA8835 controller; it communicates via 6800/8080 8-bit parallel interface; it built in negative voltage generator and temperature compensation optional, touch panel optional.  If customers would like to use pin 19 and pin 20 for A & K backlight, please choose WG320240Q type.

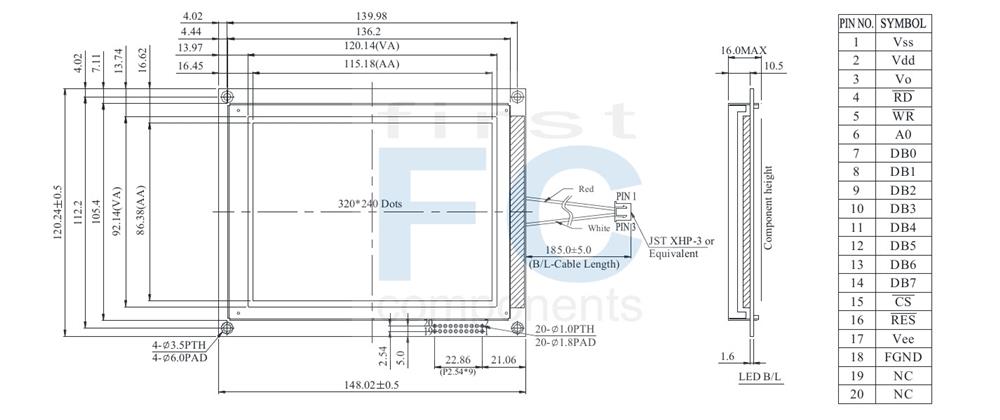

    DRAWING




    SPECIFICATIONS



    Interface Pin Function

    Pin No.SymbolDescription
    1 VSS Ground
    2 VDD Power supply for logic
    3 VO Contrast Adjustment
    4 /RD Data read. Read data from LCD Controller
    5 /WR Data write. Write data into LCD Controller
    6 A0 Data/ Instruction select signal
    7~14 DB0~DB7 Data bus line
    15 /CS Chip select input pins
    16 /RES Controller reset signal, Active Low
    17 VEE Negative Voltage Output
    18 FGND Frame ground
    19~20 NC No connection



    Mechanical Data

    ItemStandard ValueUnit
    Module Dimension 148.02 × 120.24 mm
    Viewing Area 120.14 × 92.14 mm
    Mounting Hole 139.98 × 112.2 mm
    Dot Pitch 0.36 × 0.36 mm
    Dot Size 0.34 × 0.34 mm



    Electrical Characteristics

    ItemSymbolStandard Value
    typ.
    Unit
    Input Voltage VDD 5.0 V
    Recommended LCD Driving
    Voltage for Normal Temp.
    Version module @25°C
    VDD-VO 23.6 V


    Products specifications
    Size 5.7"
    Resolution 320x240
    Active Area (mm) 115.18x86.38
    Dot Size 0.34x0.34
    B/L color, LCD type B/L white, STN blue neg
    Power supply 5V
    Display Interface 6800/8080
    Display IC RA8835
    Constructive Structure COB
    View Angle 6H
    Frame Yes
    Touch Panel No touch
    O. Temperature (°C) -20~70
    Data Connection Soldering PAD
    Pin Nr. 20
    Pin Pitch 2.54mm
    Preferred - Not Preferred Preferred
    *
    *
    *
    *
