WG320240BX-TTI-VZ#030

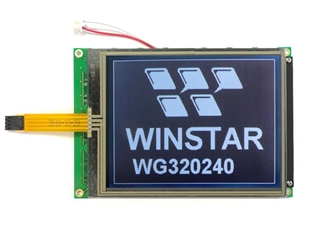

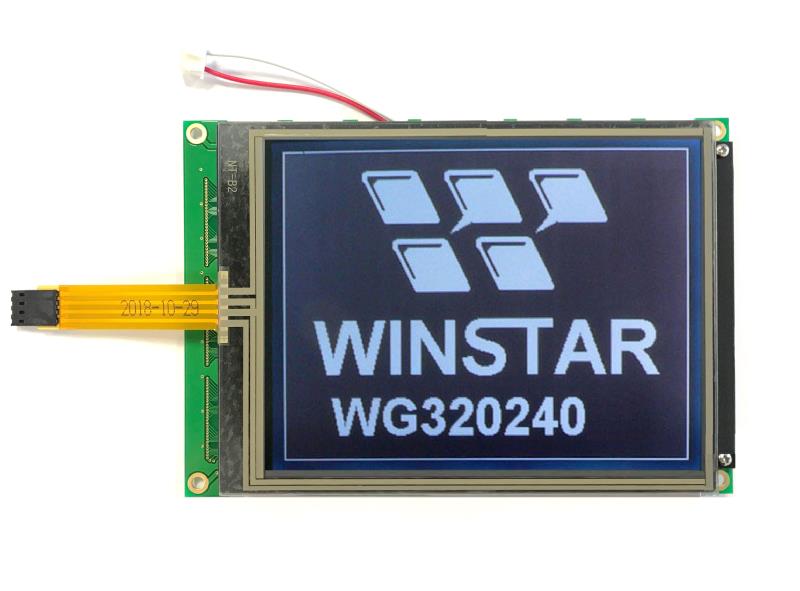

Picture of WG320240BX-TTI-VZ#030 Picture of WG320240BX-TTI-VZ#030
Graphic LCD 5.7" 320x240, B/L white, FSTN black neg, Transmissive, COB, 5V, Interface 8080, 6 O'clock, VNEG, Resistive touch panel

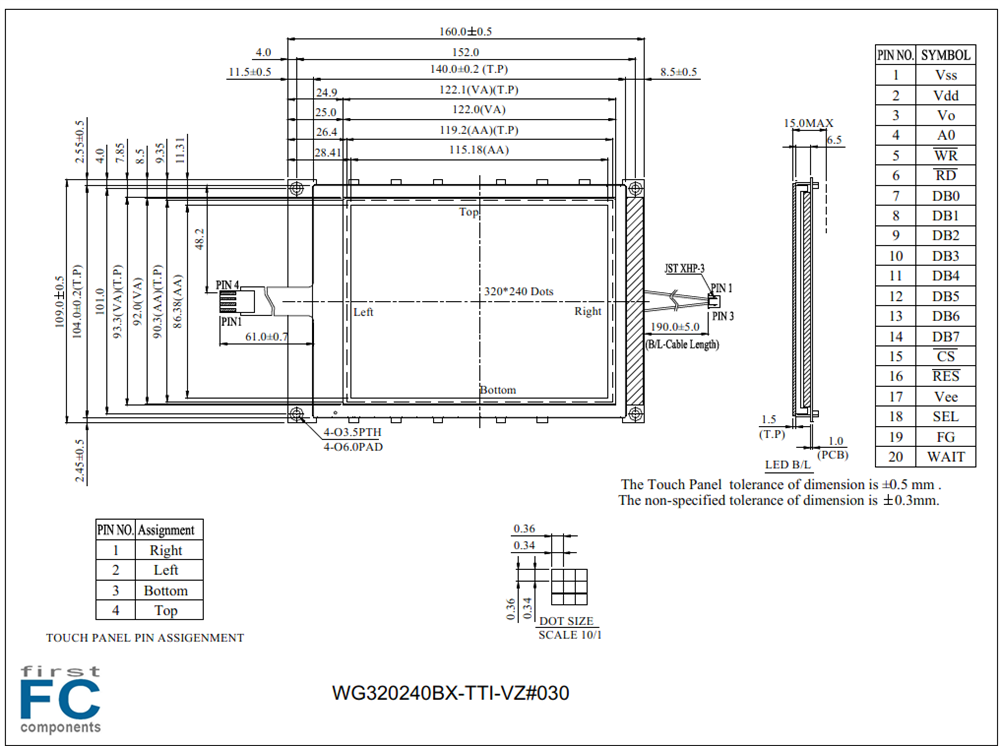

DRAWING

SKU: WG320240BX-TTI-VZ#030
Brand: Winstar
Available: Yes
Be the first to review this product
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
Price
€101.00
€96.00
€92.50

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€101.00 excl tax

DRAWING

Products specifications
Brand Winstar
Size 5.7"
Resolution 320x240
Active Area (mm) 115.18x86.38
Dot Size 0.34x0.35
B/L color, LCD type B/L white, FSTN black neg
Power supply 5V
Display Interface 8080
Display IC S1D13700
Constructive Structure COB
View Angle 6H
Frame Yes
Touch Panel Resistive
O. Temperature (°C) -20~70
Display Connection ZIF Connector
Pin Nr. 20
Pin Pitch 1mm
Preferred - Not Preferred Preferred
Download
Products specifications
Brand Winstar
Size 5.7"
Resolution 320x240
Active Area (mm) 115.18x86.38
Dot Size 0.34x0.35
B/L color, LCD type B/L white, FSTN black neg
Power supply 5V
Display Interface 8080
Display IC S1D13700
Constructive Structure COB
View Angle 6H
Frame Yes
Touch Panel Resistive
O. Temperature (°C) -20~70
Display Connection ZIF Connector
Pin Nr. 20
Pin Pitch 1mm
Preferred - Not Preferred Preferred
