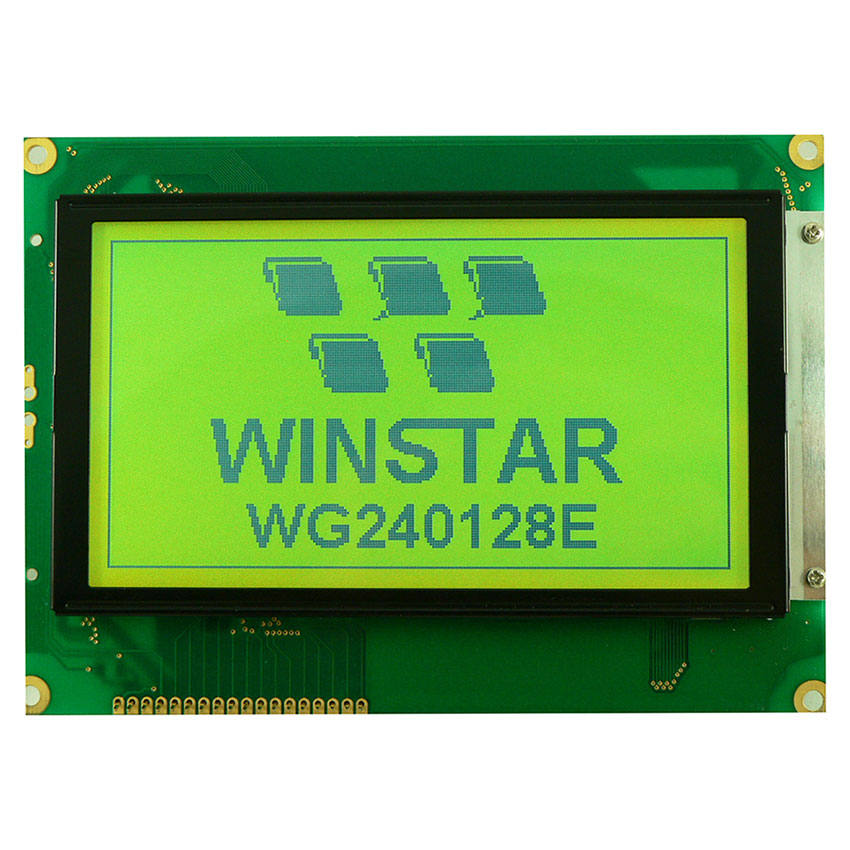

    WG240128E-YYH-VZ#

    Graphic LCD 4.8" 240x128, B/L yellow/green, STN yellow/green pos, Transflective, COB, 5V, Interface 8080, 6 O'clock, VNEG
    Manufacturer: Winstar
    SKU: WG240128E-YYH-VZ#

    Accessory kit

    PRICE BREAKS
    Quantity
    1+
    5+
    10+
    Price
    €60.20
    €54.20
    €51.00

    For quantities above 24pcs pls send your enquiry to [email protected] or call +39 0332 1888005

    Availability: The product can not be added to the cart. Please check with FC for future availability
    €60.20 excl tax
    i h

    DESCRIPTION



    WG240128E is a graphic LCD 240x128 module which is having the module dimension 144x104 mm and AA size of 107.98x57.58 mm, diagonal size 4.8 inch. This 240128 display LCD modules is built in with RA6963 controller and negative voltage output built in on module.  It supports 8080 8-bit parallel interface and 5V power supply nd 3.3V optional, this module is temperature compensation optional, and touch panel optional as well. Please note the standard WG240128E is 18 pins on board, if you need 20-pins; please choose WG240128EP1 type.


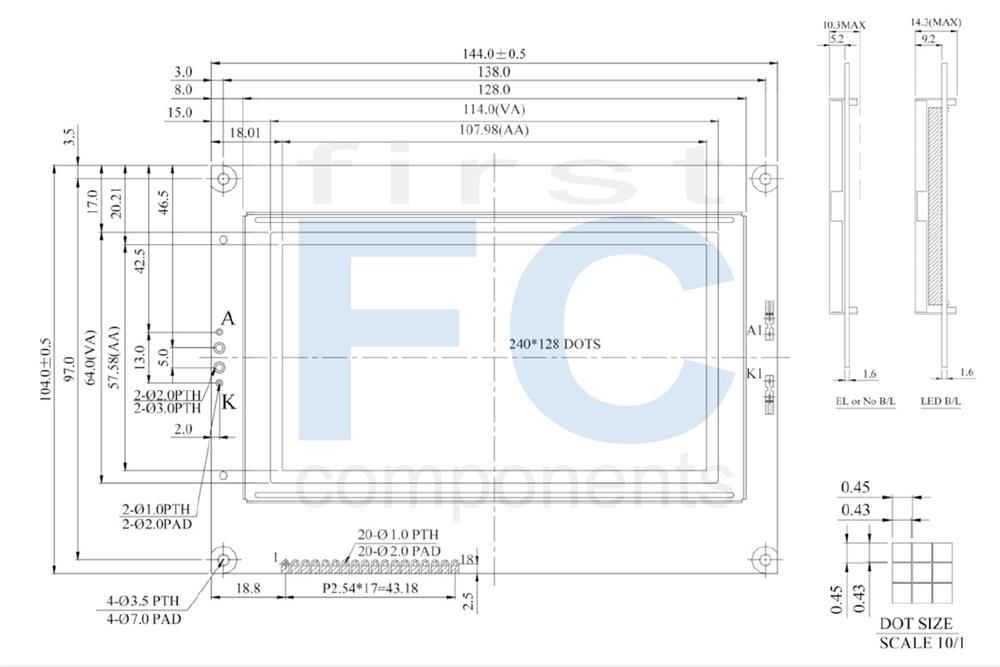

    DRAWING



    SPECIFICATIONS



    Interface Pin Function

    Pin No.SymbolDescription
    1 VEE Negative Voltage Output
    2 VSS Ground
    3 VDD Power supply for logic
    4 VO Contrast Adjustment
    5 /WR Data write. Write data into LCD Controller
    6 /RD Data read. Read data from LCD Controller
    7 /CE Enable signal
    8 C/D Data/ Instruction select signal
    9 RST Controller reset signal, Active Low
    10~17 DB0~DB7 Data bus line
    18 FS Selection of font; H : 6 * 8 , L : 8 * 8



    Mechanical Data

    ItemStandard ValueUnit
    Module Dimension 144.0 x 104.0 mm
    Viewing Area 114.0 x 64.0 mm
    Mounting Hole 138.0 x 97.0 mm
    Dot Pitch 0.45 x 0.45 mm
    Dot Size 0.43 x 0.43 mm



    Electrical Characteristics

    ItemSymbolStandard Value
    typ.
    Unit
    Input Voltage VDD 3/5 V
    Recommended LCD Driving
    Voltage for Normal Temp.
    Version module @25°C
    VDD-VO 19.5 V


    Products specifications
    Size 4.8"
    Resolution 240x128
    Active Area (mm) 107.98x57.58
    Dot Size 0.43x0.43
    B/L color, LCD type B/L yellow/green, STN yellow/green pos
    Power supply 5V
    Display Interface 8080
    Display IC NT0086
    Constructive Structure COB
    View Angle 6H
    Frame Yes
    Touch Panel No touch
    O. Temperature (°C) -20~70
    Data Connection Soldering PAD
    Pin Nr. 18
    Pin Pitch 2.54mm
    Preferred - Not Preferred Preferred
    Date Notice Link/Description
    2021/03/18 PCN RAIO IC RA6963-N > RA6963-N1 for monochrome COB LCDs
