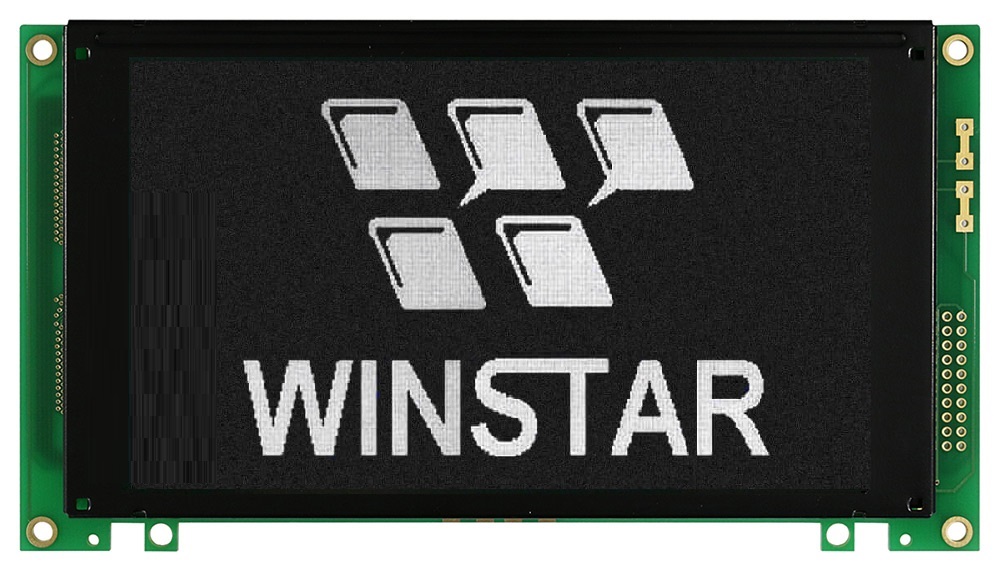

    WG240128A-TTI-VZ#

    Graphic LCD 5.4" 240x128, B/L white, FSTN black neg, Transmissive, COB, 5V, Interface 8080, 6 O'clock, VNEG
    Manufacturer: Winstar
    SKU: WG240128A-TTI-VZ#

    Accessory kit

    PRICE BREAKS
    Quantity
    1+
    5+
    10+
    Price
    €69.20
    €62.30
    €58.60

    For quantities above 24pcs pls send your enquiry to [email protected] or call +39 0332 1888005

    Availability: In stock
    €69.20 excl tax
    i h

    RECOMMENDED ONLY AS SPARE PARTS

    For new projects please contact us at [email protected].



    DESCRIPTION



    WG240128A is a graphic LCD 240x128 module which is having the module dimension 170x103.5 mm and AA size of 119x63.97 mm, diagonal size 5.4 inch. This LCD display 240x128 modules is built in with RA6963 controller and negative voltage output built in on module.  It supports 8080 8-bit parallel interface and 5V power supply and 3.3V optional.  Also, there is touch panel optioanl for WG240128A. Please note the standard WG240128A is 20 pins on board, there is 24-pins option for this type. The graphic LCD is suitable in many applications; they can be used in white goods, POS system, home applications, industrial instrument, automation, audio display systems, and medical devices.


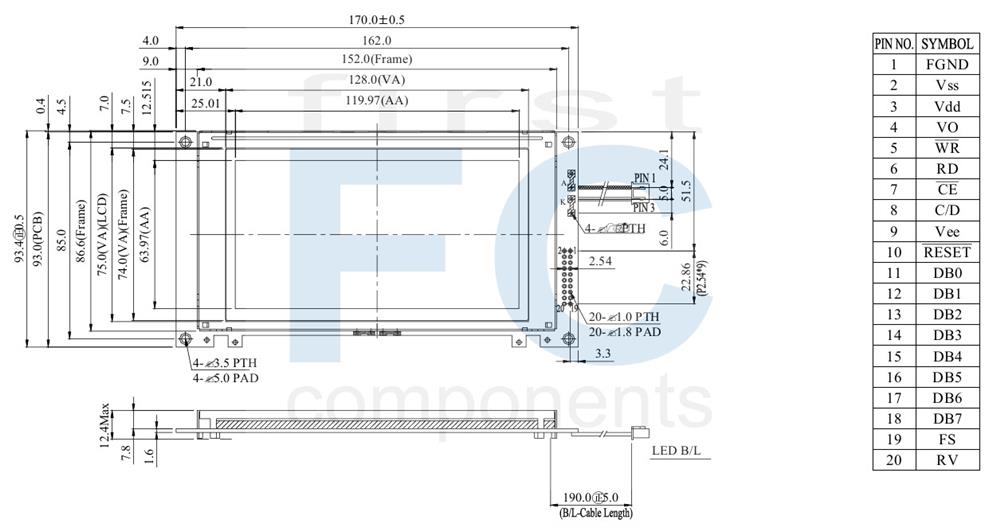

    DRAWING



    SPECIFICATIONS



    Interface Pin Function

    Pin No.SymbolDescription
    1 FGND Frame ground
    2 VSS Ground
    3 VDD Power supply for logic
    4 VO Contrast Adjustment
    5 WR Data write. Write data into LCD Controller
    6 RD Data read. Read data from LCD Controller
    7 CE Enable signal
    8 C/D Data/ Instruction select signal
    9 VEE Negative Voltage Output
    10 RESET Controller reset signal, Active Low
    11~18 DB0~DB7 Data bus line
    19 FS Selection of font; H : 6 * 8 , L : 8 * 8
    20 RV H: Reverse L: Normal



    Mechanical Data

    ItemStandard ValueUnit
    Module Dimension 170.0 × 93.4 mm
    Viewing Area 128.0 × 74.0 mm
    Mounting Hole 162.0 × 85.0 mm
    Dot Pitch 0.50 × 0.50 mm
    Dot Size 0.47 × 0.47 mm



    Electrical Characteristics

    ItemSymbolStandard Value
    typ.
    Unit
    Input Voltage VDD 3/5 V
    Recommended LCD Driving
    Voltage for Normal Temp.
    Version module @25°C
    VDD-VO 18.0 V
    Products specifications
    Size 5.4"
    Resolution 240x128
    Active Area (mm) 119.97x63.97
    Dot Size 0.47x0.47
    B/L color, LCD type B/L white, FSTN black neg
    Power supply 5V
    Display Interface 8080
    Display IC RA6963
    Constructive Structure COB
    View Angle 6H
    Frame Yes
    Touch Panel No touch
    O. Temperature (°C) -20~70
    Data Connection Soldering PAD
    Pin Nr. 20
    Pin Pitch 2.54mm
    Preferred - Not Preferred Not Preferred
    Date Notice Link/Description
    2021/03/18 PCN RAIO IC RA6963-N > RA6963-N1 for monochrome COB LCDs
    2026/05/21 PCN Design Optimization for Winstar WG240128A STN Graphic LCD Display Series
