WG20232C5-TMI-VKR#

Graphic LCD 4.75" 202x32, B/L white, STN blue neg, Transmissive, COB, 5V, Interface 6800, 6 O'clock, VNEG (Korean font)



RECOMMENDED ONLY AS SPARE PARTS

For new projects please contact us at [email protected].

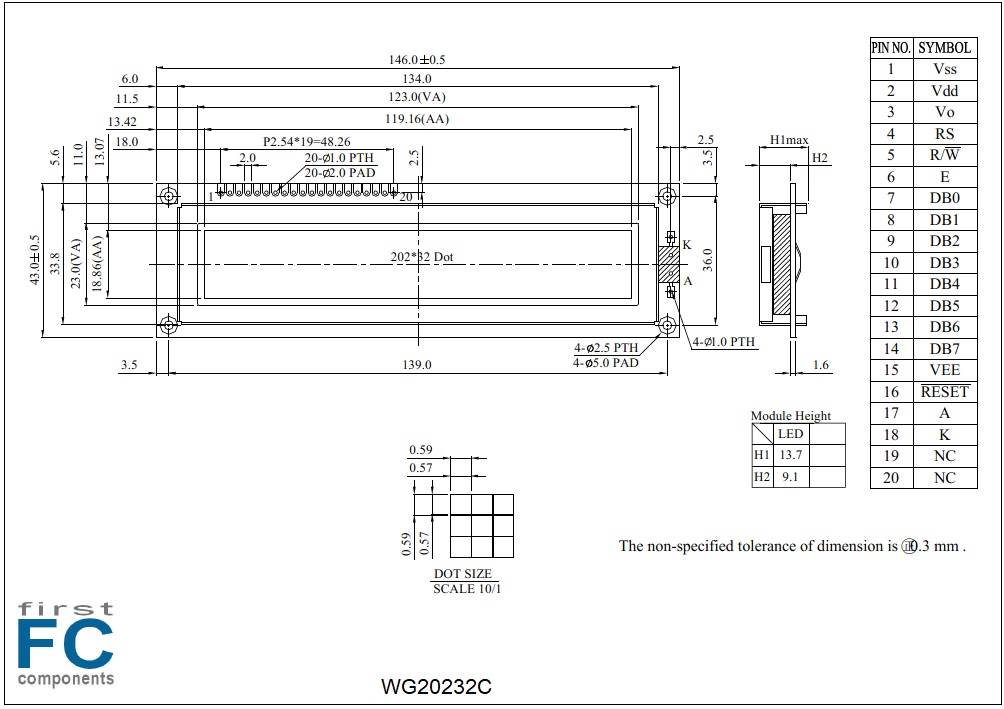

DRAWING

SKU: WG20232C5-TMI-VKR#
Brand: Winstar
Available: Yes
Be the first to review this product
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
Price
€29.20
€23.40
€22.50

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€29.20 excl tax



RECOMMENDED ONLY AS SPARE PARTS

For new projects please contact us at [email protected].



DRAWING

Products specifications
Brand Winstar
Size 4.75"
Resolution 202x32
Active Area (mm) 119.16x18.86
Dot Size 0.57x0.57
B/L color, LCD type B/L white, STN blue neg
Power supply 5V
Display Interface 6800
Display IC ST7920-0F
Constructive Structure COB
View Angle 6H
Frame Yes
Touch Panel No touch
O. Temperature (°C) -20~70
Display Connection Soldering PAD
Pin Nr. 20
Pin Pitch 2.54mm
Preferred - Not Preferred Not Preferred
Download
Products specifications
Brand Winstar
Size 4.75"
Resolution 202x32
Active Area (mm) 119.16x18.86
Dot Size 0.57x0.57
B/L color, LCD type B/L white, STN blue neg
Power supply 5V
Display Interface 6800
Display IC ST7920-0F
Constructive Structure COB
View Angle 6H
Frame Yes
Touch Panel No touch
O. Temperature (°C) -20~70
Display Connection Soldering PAD
Pin Nr. 20
Pin Pitch 2.54mm
Preferred - Not Preferred Not Preferred
